11

HP StorageWorks Disk System 2120

Eng

lish

Power Connector

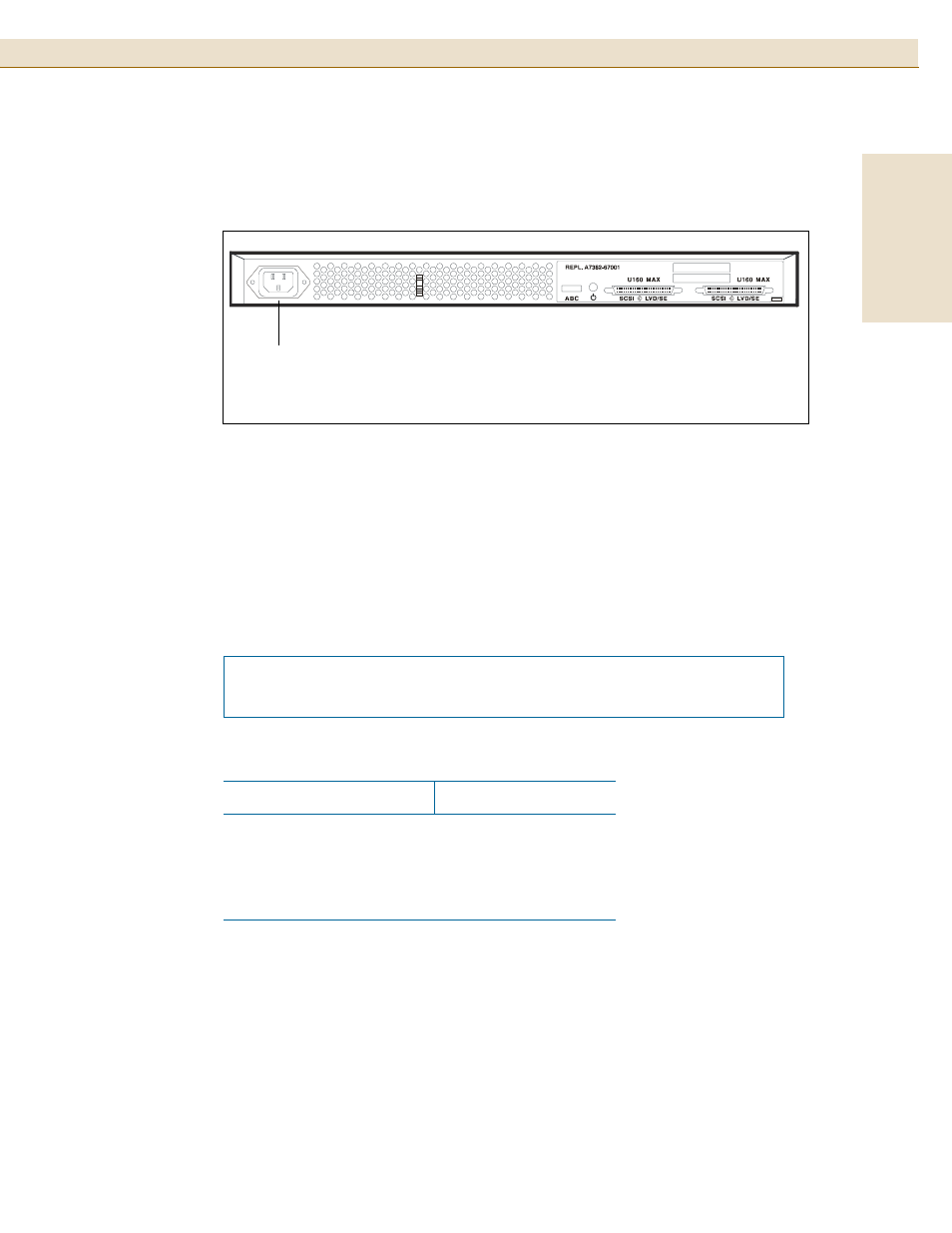

FIGURE 6

AC Power Connector Location

Electrical Requirements

AC Site Requirements

Overcurrent protection devices are required for each cabinet where the disk system is
installed. They must be positioned between the power source and the disk system.
These protective devices must not trip when exposed to an inrush current of 30 amps
lasting 5 ms.

I

Note

These protection devices must meet all applicable electrical safety
requirements and be approved for the intended purpose.

TABLE 3

AC Power Requirements

Electrical Element

Requirements

Voltage

100-240 VAC

Frequency

50-60 Hz

Input Current

1.7-0.7 amp*

Maximum Surge Current

30 amps peak

* Depending on voltage. Confirm through measurement.

AC

Power

Connector
