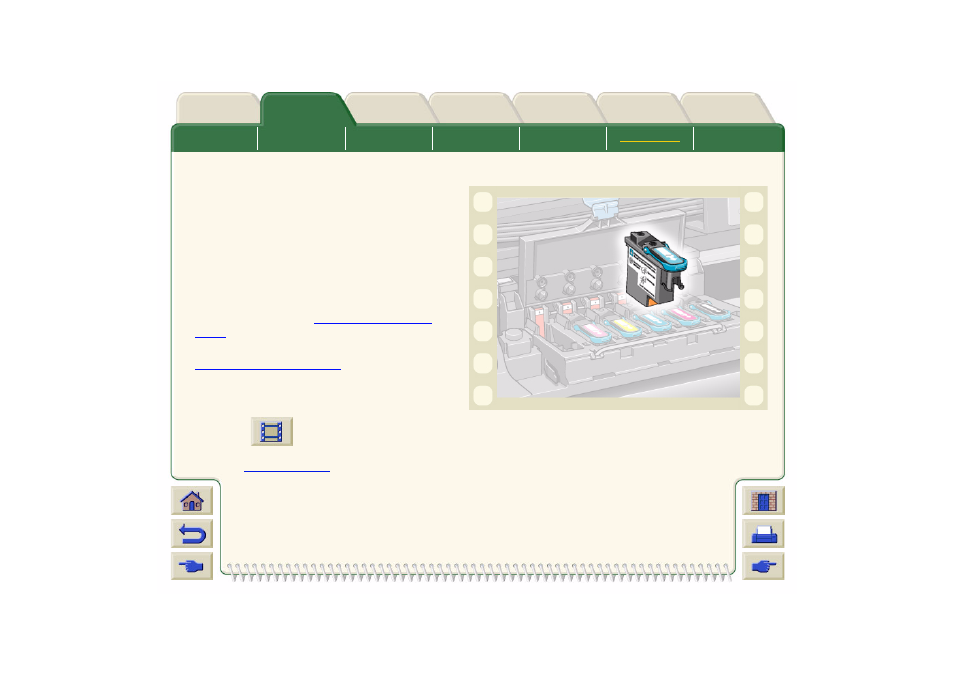

The printhead is designed to prevent you from
accidentally inserting it into the wrong position.
Check that the colored label on the printhead
matches the colored label of the carriage assembly
position that the printhead is to be inserted in. Do
not confuse the light cyan printhead with the dark
cyan position in the carriage.

Before you replace the printhead, it is
recommended that you clean the carriage
assembly as shown in

Carriage Interconnect

Wiper

If the front panel displays an error message, see

Printhead Status Messages

Whenever you install a printhead the printer will
automatically perform the alignment procedure.

Click on this

icon to run the animation sequence.

printable version

of the sequence is also available so that you can take the key illustrations

to the printer, if it is remote from your computer.
