Setup 15

o

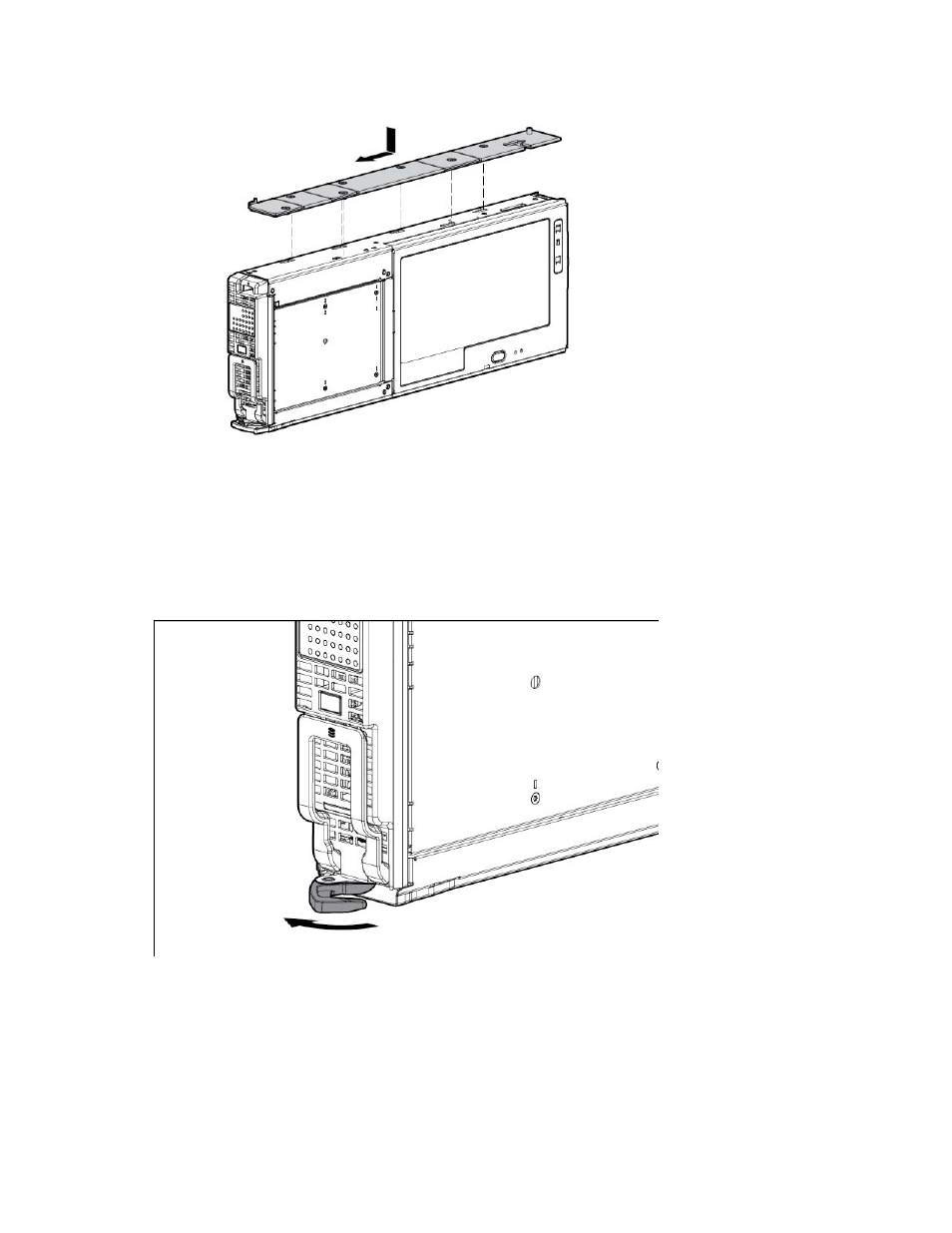

To install the D2220sb with a full-height server blade, install the half-height blade shelf.

If installing two D2220sb storage blades with one full-height partner server blade, install the second
D2220sb in the bay directly above the first one. The second D2220sb does not require a half-height
blade shelf.
If installing two D2220sb storage blades with one partner server blade in an HP BladeSystem
c3000 enclosure, use the mini divider instead of the half-height blade shelf. For more information,

see the HP BladeSystem c3000 Enclosure Quick Setup Instructions.

4.

Prepare the storage blade for installation.

5.

Install the storage blade:
