Hardware options installation 59

4X SFF Smart Array option

Install this cable to use the SFF quick-release hard drive cage with a controller card.

1.

Power down the server (on page

15

).

2.

Remove the server from the chassis (on page

15

).

3.

Remove the drive air baffle (on page

16

).

4.

Disconnect the quick-release drive Mini-SAS cable from the system board, and the power cable and
temperature sensor cable from the personality board.

5.

Remove any drives or blanks installed in the drive cage.

6.

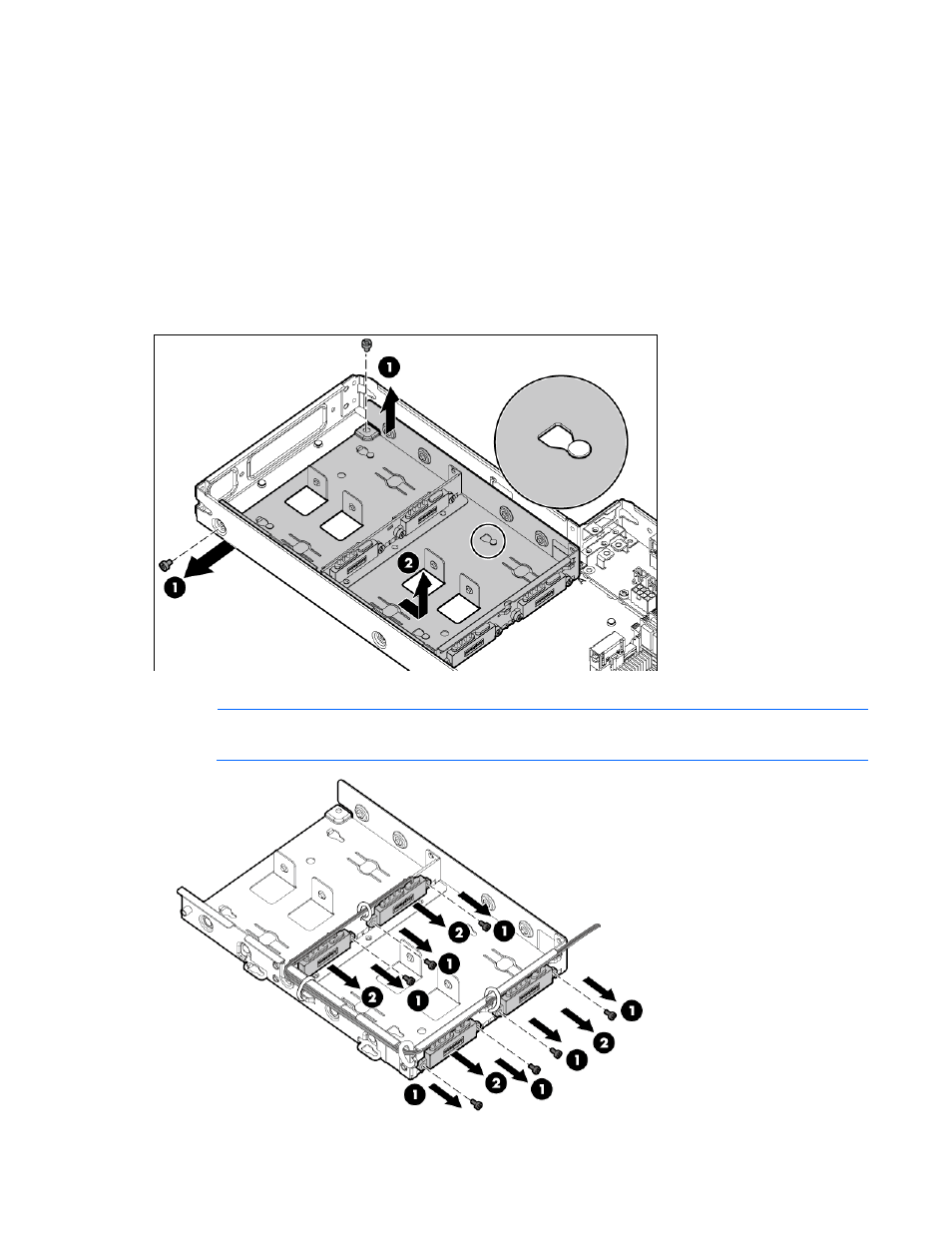

Remove the SFF quick-release drive cage.

7.

Remove the existing Mini-SAS cable from the SFF quick-release drive cage.

NOTE:

Be sure to retain these screws because they are required to install the new Mini-SAS

cable.
