HP ProLiant SL230s Gen8 Server User Manual
Page 47
Hardware options installation 47
5.

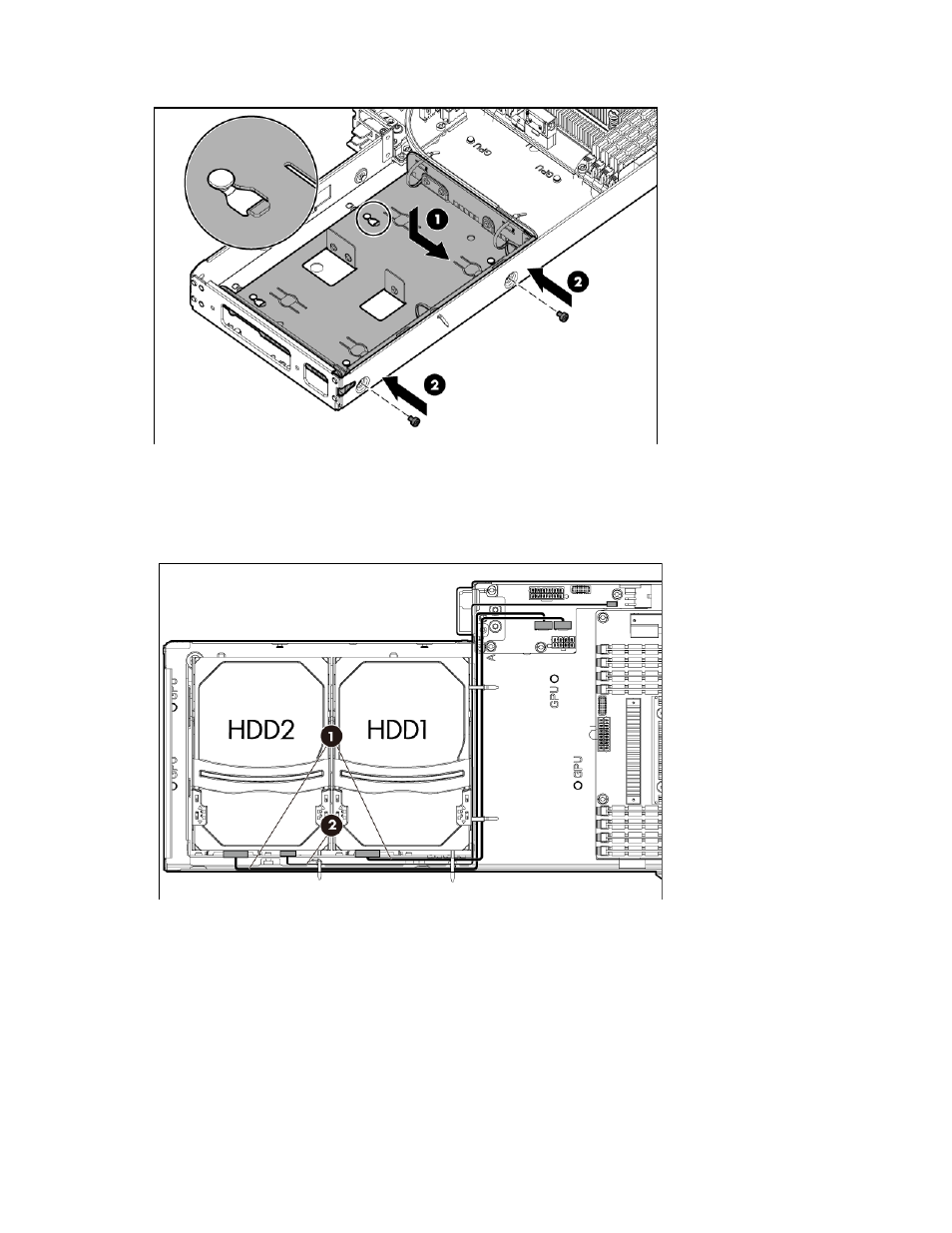

Slide the drive cage to the side of the server, and then secure it using the screws.
6.
Connect the two power connectors from the drive cage to the personality board. The power connectors
can plug into either port on the personality board.
7.
Connect the temperature sensor cable from the drive cage to the personality board:
o
Left node
