Hardware options installation 48

o

Right node

8.

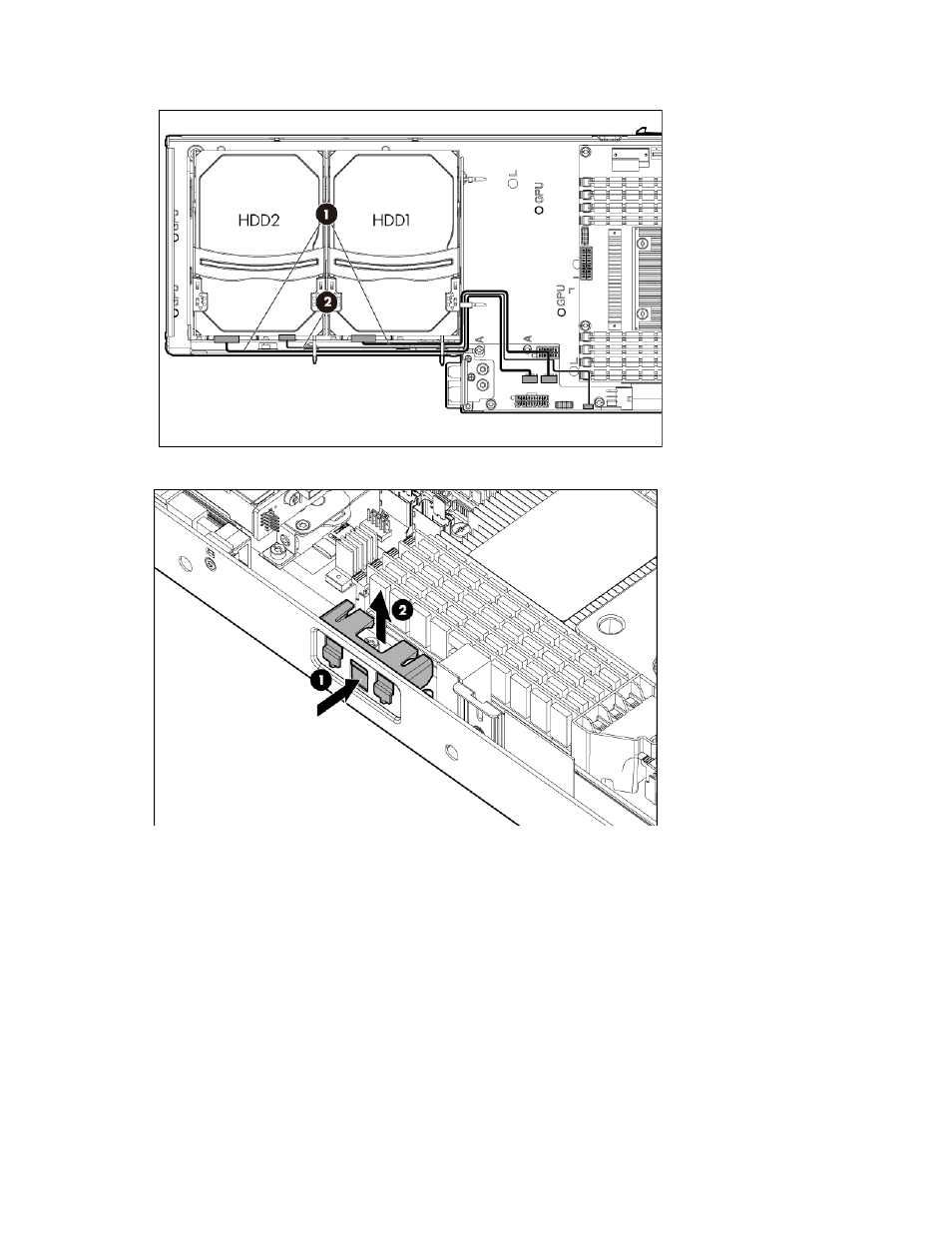

Remove the FBWC capacitor pack holder.

9.

Route the Mini-SAS cable along the side of the server.

10.

Connect the Mini-SAS cable to the front port of the system board:
