HP ProLiant SL230s Gen8 Server User Manual

Page 51

background image

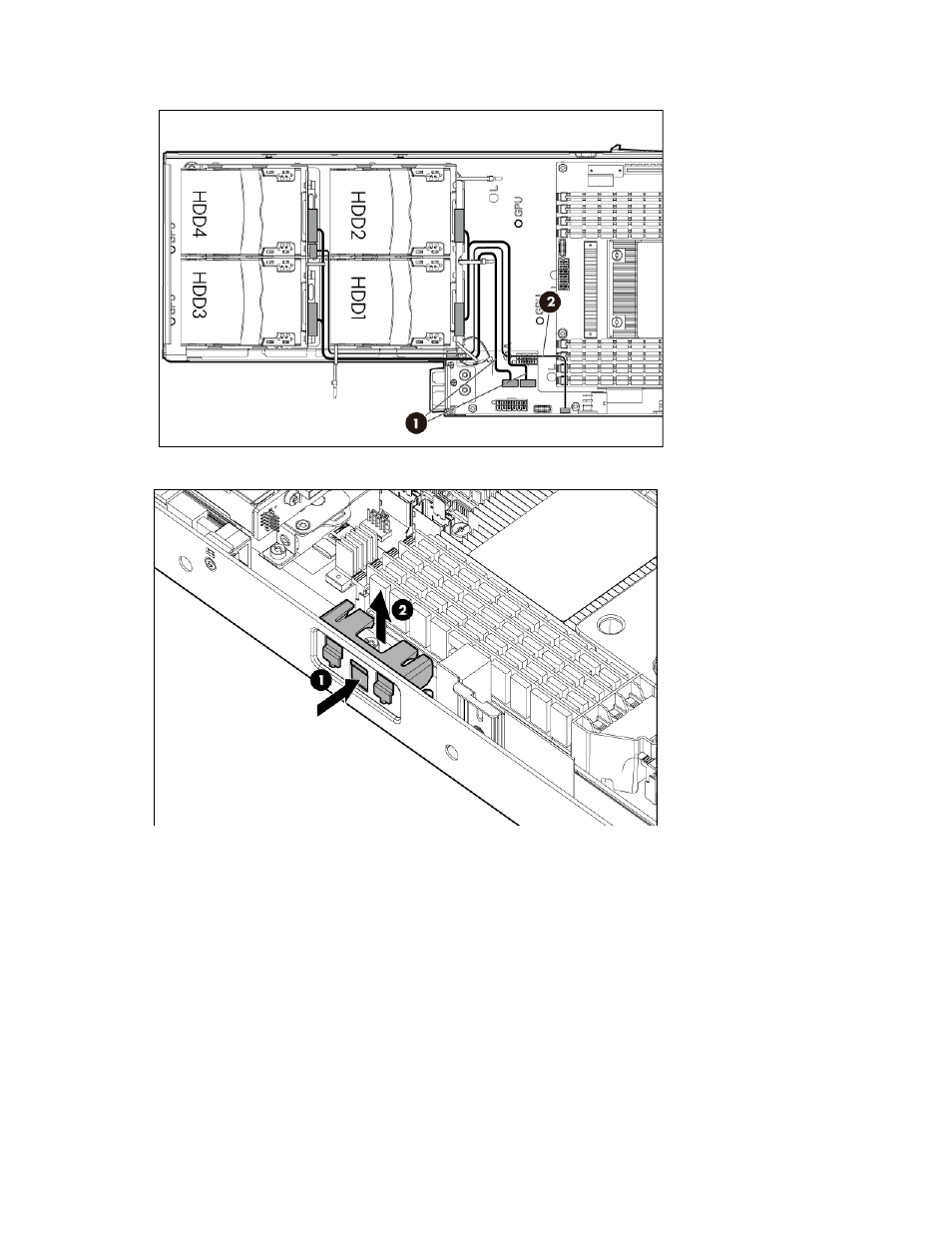

Hardware options installation 51

o

Right node

9.

Remove the FBWC capacitor pack holder.

10.

Route the Mini-SAS cable along the side of the server.

11.

Connect the Mini-SAS cable to the front port of the system board:
