Hardware options installation 42

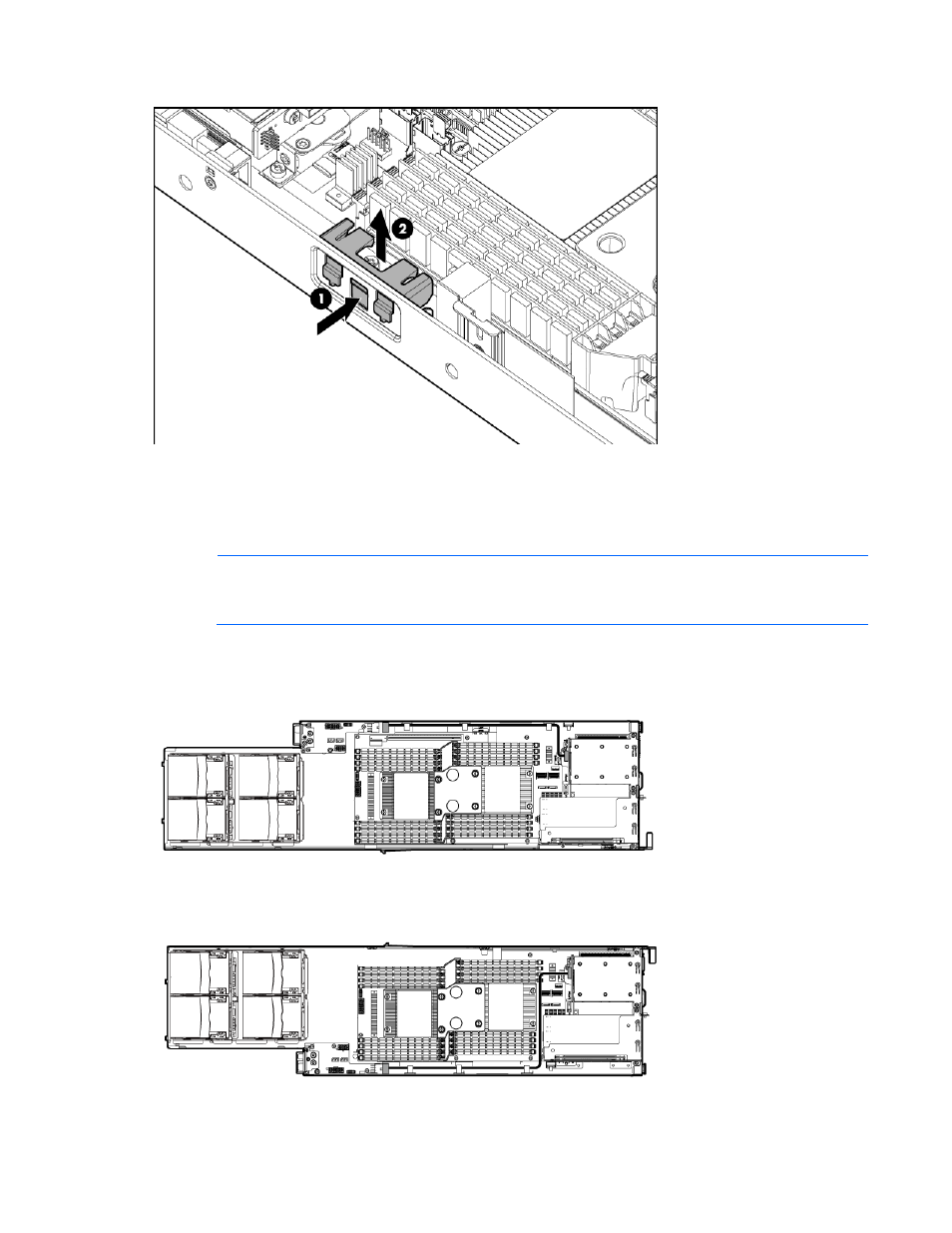

8. Remove the FBWC capacitor pack holder to enable cable routing.
9. Connect the power cable to the personality board.
10. Route the power cable along the side of server.
11. Connect the power cable to the drive backplane. If only one drive cage is being installed, route the
unused cable to the side of the tray:
NOTE: In the following figures, the drive cage location for single SFF hot-plug drive cage
installation is depicted in the right bay, but the single SFF hot-plug drive cage can be installed in
either bay.
o Single SFF hot-plug drive cage
— Left node
— Right node
