Status Item / Description
Green = Network activity
Flashing green = Network activity
Off = No network activity
3. NIC/iLO 2 activity LED
Green = Network link
Off = No network link
4. NIC/iLO 2 link LED
SAS and SATA hard drive LEDs
The following figure shows SAS/SATA hard drive LEDs. These LEDs are located on all HP ProLiant
hot plug hard drives.

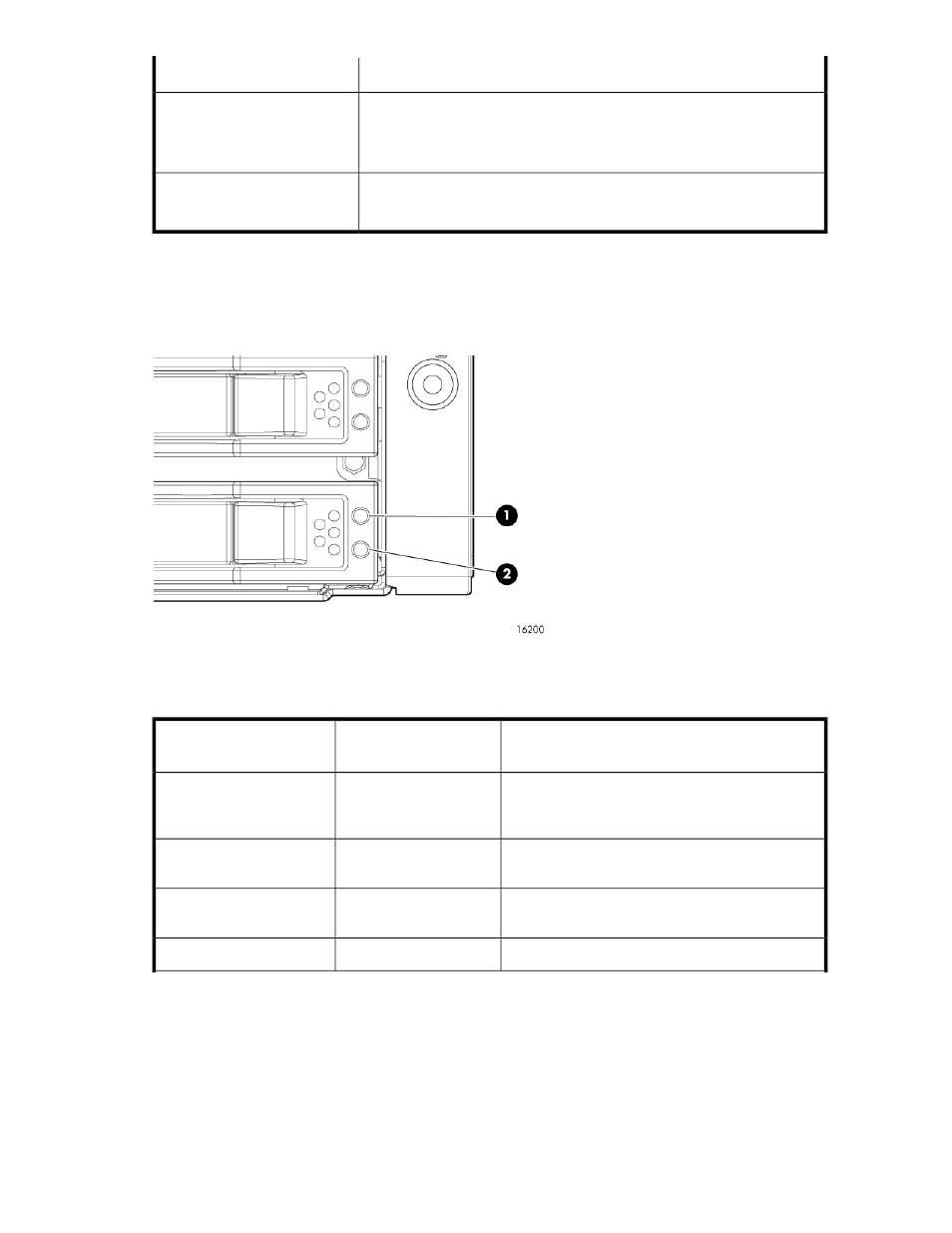

Figure 16 SAS/SATA hard drive LEDs
.
Table 10 SAS and SATA hard drive LED combinations
Status 2. Online/activity LED
(green) 1. Fault/UID LED (am-
ber/blue)
The drive has failed, or a predictive failure alert has
been received for this drive; it also has been selected
by a management application.
On, off, or flashing Alternating amber and blue
The drive is operating normally, and it has been se-
lected by a management application.
On, off, or flashing Steadily blue
A predictive failure alert has been received for this
drive. Replace the drive as soon as possible.
On
Amber, flashing regularly (1
Hz)
The drive is online, but it is not active currently. On Off
