1. INTRODUCTION
2. FEATURES

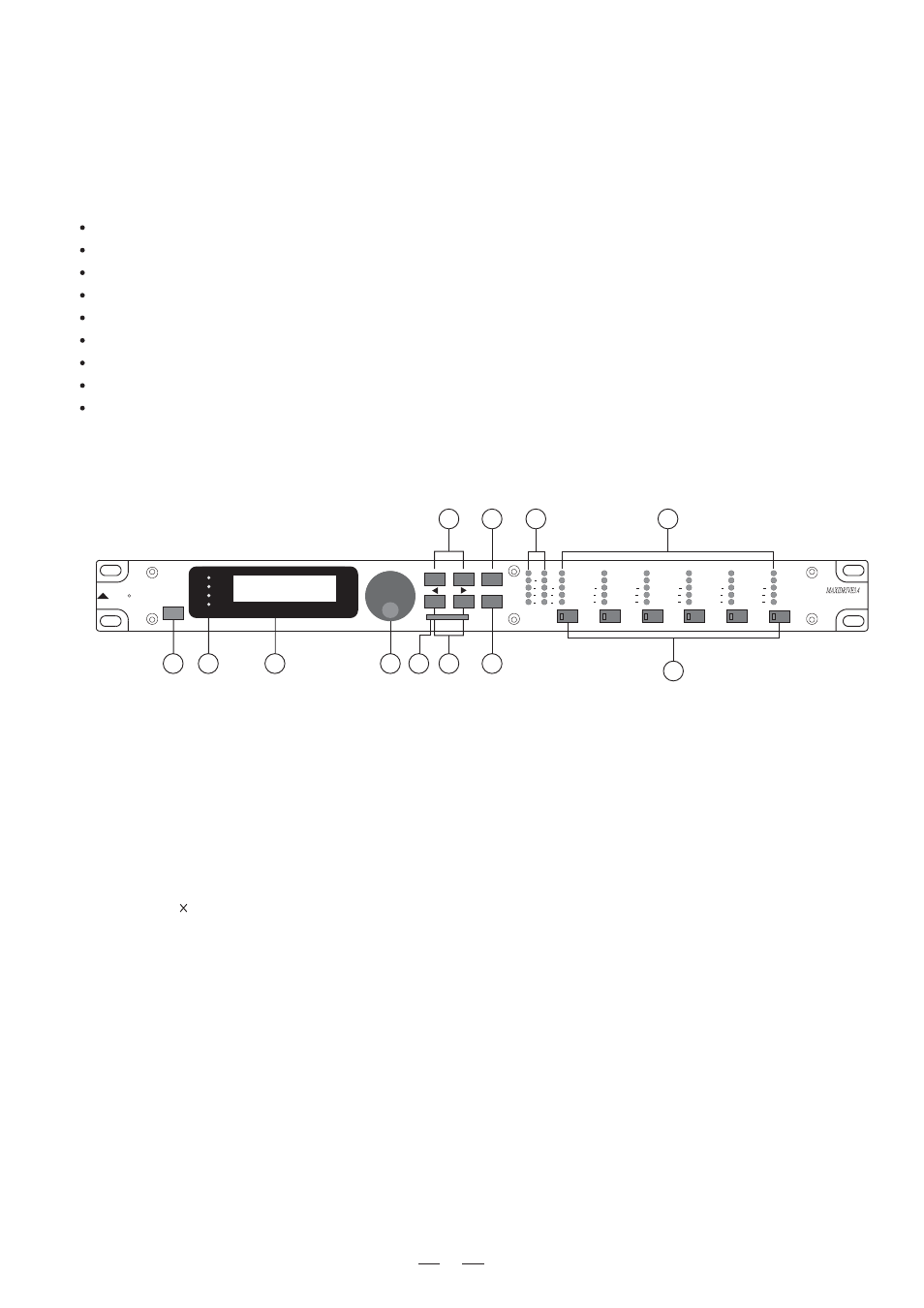

3.1 The Front Panel
3. CONTROL ELEMENTS
4
Single rack unit
Delay lines up to 2.5s for each input and up to 300ms for each output
Stereo digital input in AEX/EBU format
A/D and D/A converters for a 117dB dynamic range
Slot for a memory card for the storage of more presets and an easier upgrade of other units
10 Factory presets, 64 user presets and 128 card presets by large memory capacity
Switching power supply
Remote control
manufactured under QS9000, VDA6.1 certified management system
2.LEDs
These LEDs indicate the selecting status of the menus.
3.Display
Rear-lit 2 16 display.
It shows the pages of the various menus and the relative parameters.
4.DIAL knob
The knob allows you to edit value of the selected parameter. The value raises while turning the DIAL clockwise and
lowers counterclockwise.
6.Navigation cursor keys
Each editing page comprises a variable number of parameters (fields).
The right and left keys allow you to select the various required parameters via controlling the movement
cursor in the page.
of the
12 8 5 10
9 6 7 4 3 2 1
11
3-WAY STEREO
DIGITAL CROSSOVER
ENTER
R LTO
PREV NEXT
ESC
MODE
CLIP
6
12
18
24
A B
INPUT LEVEL MUTE
CLIP
6
12
24
LIMIT
OUTPUT
2
LEVEL
CLIP
6
12
24
LIMIT
CLIP
6
12
24
LIMIT
CLIP
6
12
24
LIMIT
CLIP
6
12
24
LIMIT
CLIP
6
12
24
LIMIT
OUTPUT
1
LEVEL
OUTPUT
3
LEVEL
OUTPUT
4
LEVEL
OUTPUT
5
LEVEL
OUTPUT
6
LEVEL
MUTE MUTE MUTE MUTE MUTE
EDIT
UTILITY
DELAY
PRESET
CARD
Your MAXIDRIVE3.4 is a 3-way stereo digital crossover and it is a powerful versatile signal processor. The apparatus
will provide 3, 4, 5 or 6-way mono X-over with 6 outputs. Thanks to the use of selected and expensive components,
the performances of MAXIDRIVE3.4 are worth much more than its price: you can set the input and output routing con-
figuration only through recalling one of the Presets included in the internal memory.
1.MODE button
The button allows you to select four modes: PRESET, DELAY, EDIT and UTILITY. Pressing MODE repeatedly
to reach to the required menu and the corresponding LED will light up. You can edit the parameters of the selected
menus. If none of the menu LEDs is lit, the Display shows the name of the current PRESET and no parameters
can be modified.
5.PREV/NEXT button
Each menu comprises several pages. These buttons allow you to turn over the pages and/or a variable number
of parameters.
