9
Numbers and indicate the respective outputs. 1, 2, 3, 4, 5 6
In the example:
The signal connected to Input is assigned to outputs and . A 1 3
The signal connected to Input is assigned to outputs and . B 2 4
The of the signal on inputs and is assigned to outputs and . Sum A B 5 6

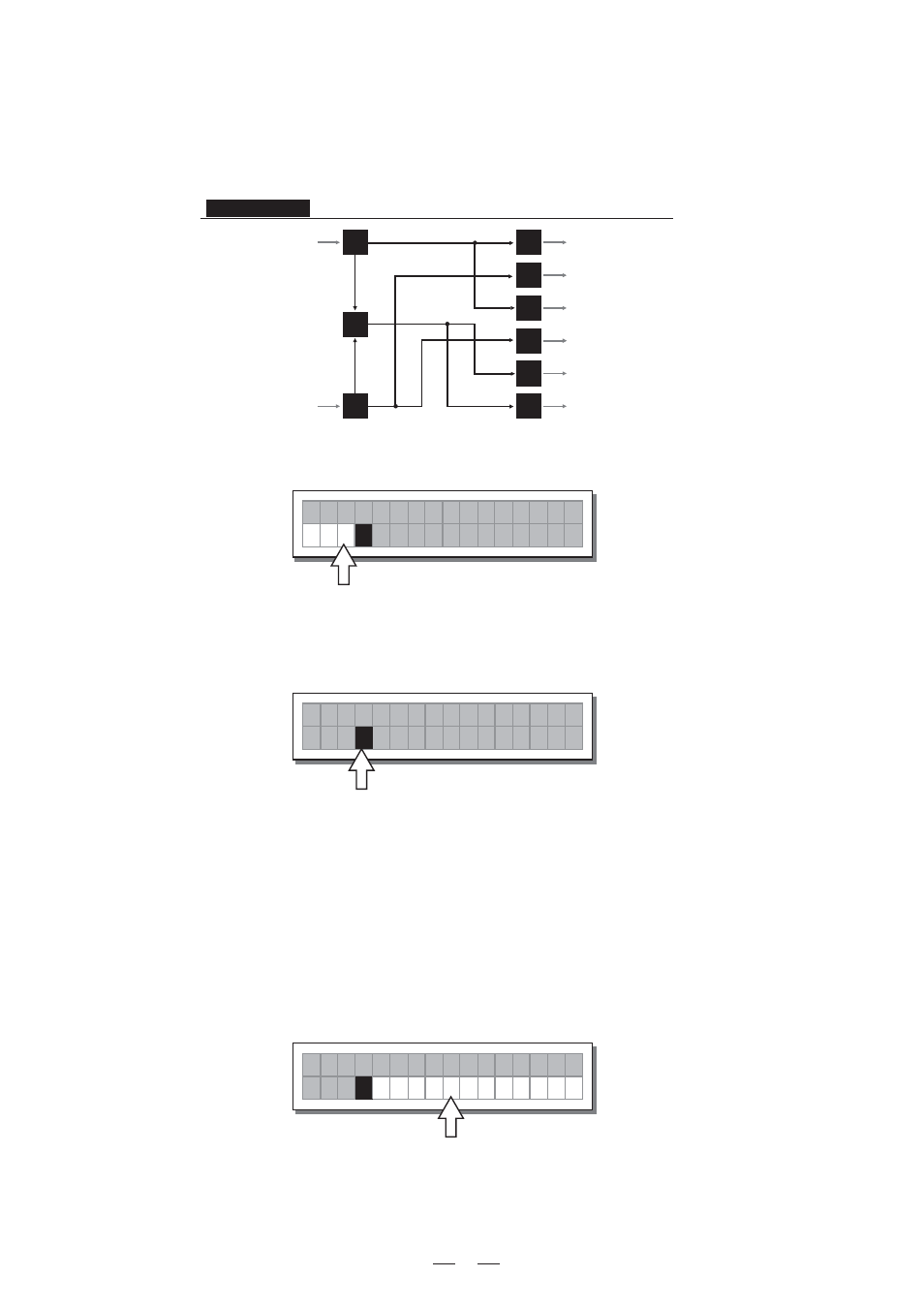

The system is therefore configured as shown in the following diagram.
A13 B24 S56 2-WAY STEREO + 2 MONO AUX (2X2W + 2MAX)
LEFT
RIGHT
HIGH LEFT
HIGH RIGHT
LOW LEFT
LOW RIGHT
MONO AUX L +R
MONO AUX L +R
IN
A
IN
A+B
IN
B
OUT
1
OUT
2
OUT
3
OUT
4
OUT
5
OUT
6
There are 3 categories of PRESETS:
F = Factory PRESETS factory programmed, cannot be permanently changed.
4.6 Type of PRESET
4.5 Number Of PRESETS
10 Factory PRESETS, 64 User PRESETS and 128 Card PRESETS are available.
F 2 x 2 W + 2 M A X
A 1 3 B 2 4 S 5 6
2
from scratch.
U = User PRESETS can be programmed by users.
C = Card PRESETS can be programmed by users and stored on a Multimedia Memory Card.
4.7 Name of the PRESET
In the example, the name indicates a two-way stereo system + two auxiliary mono outputs.
F
A 1 3 B 2 4 S 5 6
2 2 x 2 W + 2 2 M A X
These include all the system's usable configurations.
F 2 x 2 W + 2 M A X
A 1 3 B 2 4 S 5 6
2
These are the starting points for Creating User PRESETS and Card PRESETS
