Component identification 8

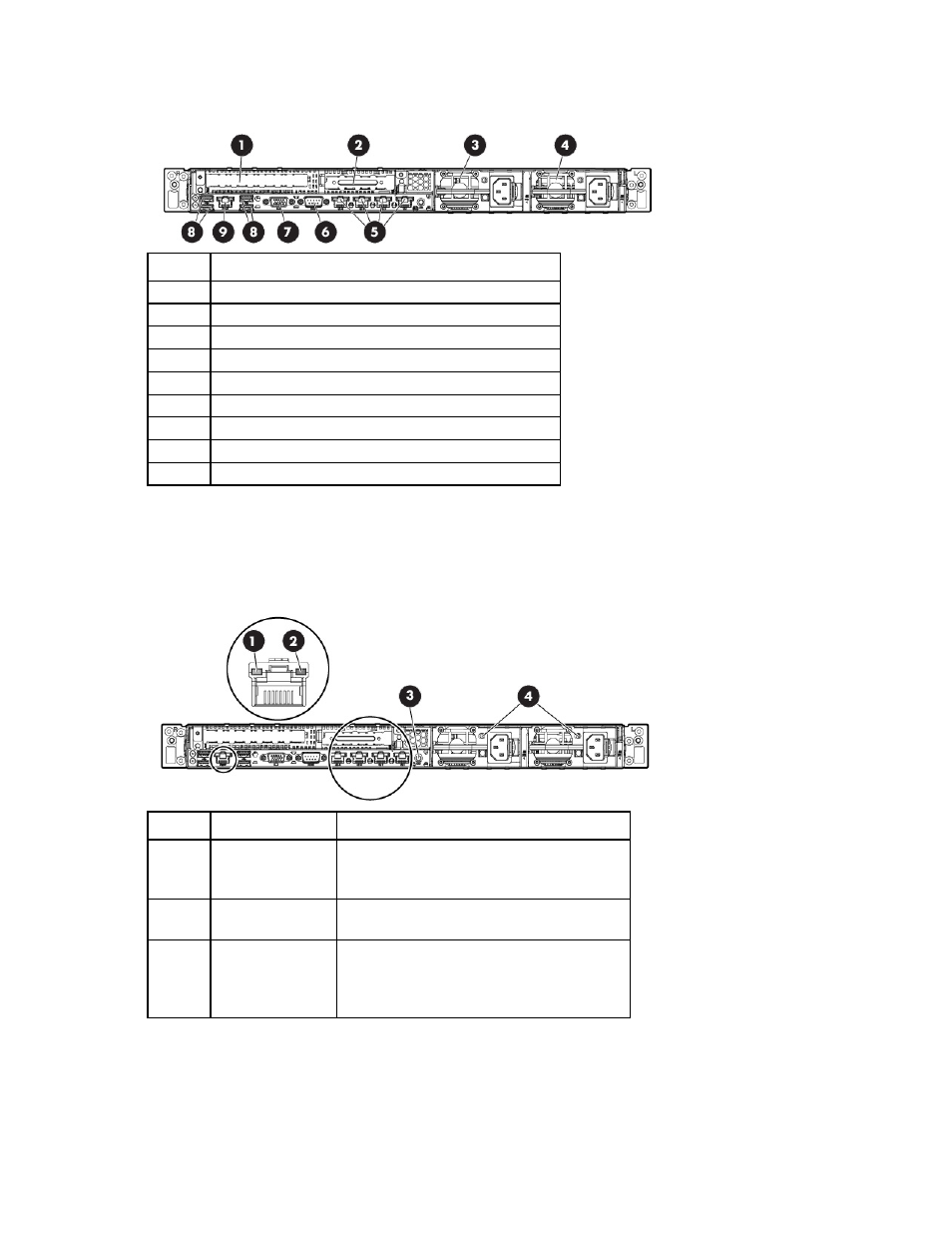

Rear panel components
Item Description
1 Slot 1 PCIe3 x16 (16, 8, 4, 1)*
2 Slot 2 PCIe2 x8 (4,1)*
3
Power supply 2
4 Power supply 1
5 NIC connectors (4 to 1)
6 Serial connector
7
Video connector
8 USB connectors
9 iLO connector
* For more information on the riser board slots supported by the onboard PCI riser connectors, see "PCIe riser
board slot definitions (on page
9 )."
Rear panel LEDs and buttons
Item Description Status
1 NIC status LED Solid green = Activity exists
Flashing green = Activity exists
Off = No activity exists
2
NIC link LED Green = Link exists
Off = No link exists
3 UID button LED Solid blue = Activated
Flashing blue (1 Hz/cycle per sec) = Remote
management or firmware upgrade in process
Off = Deactivated
