Hardware options installation 49

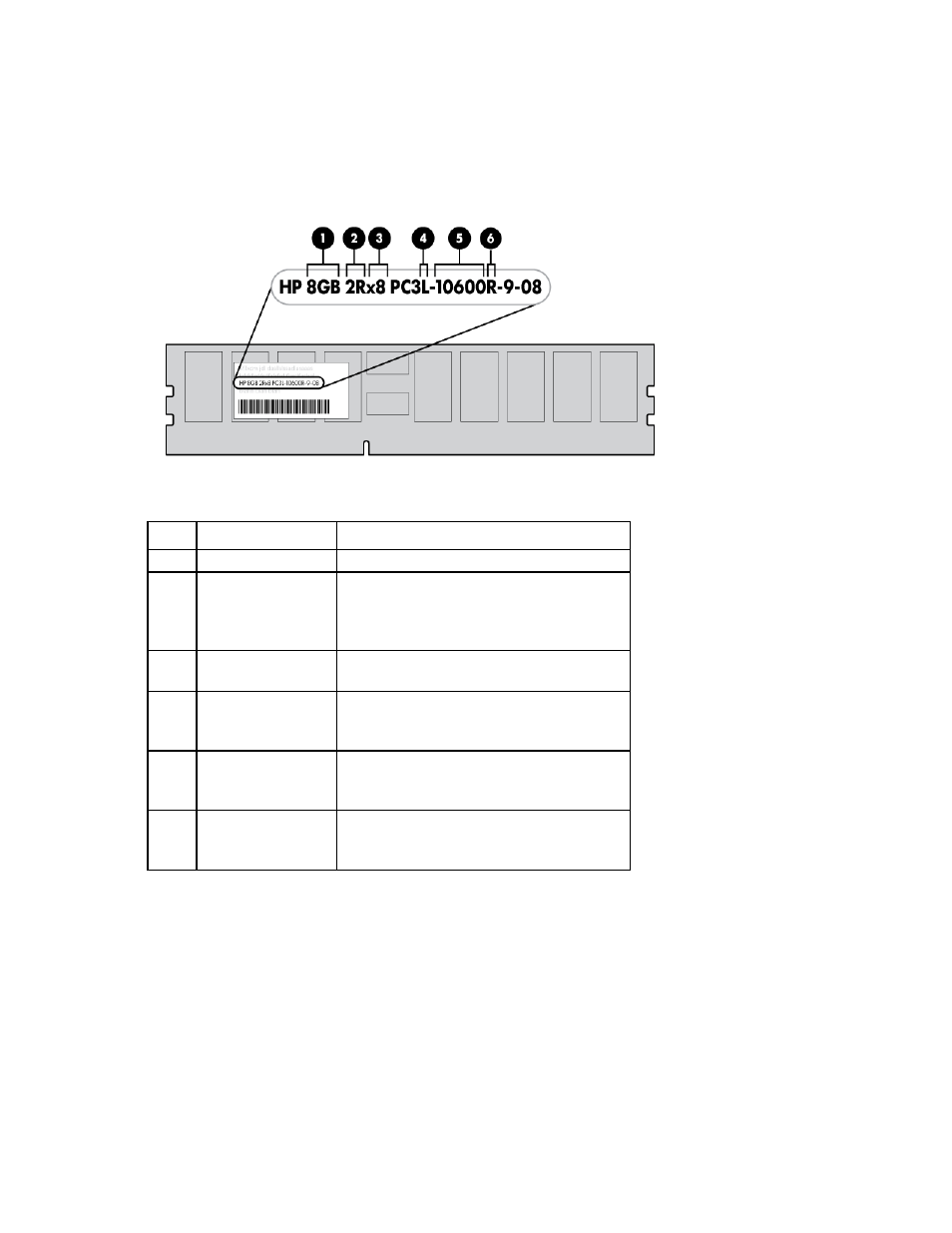

DIMM identification
To determine DIMM characteristics, use the label attached to the DIMM and the following illustration and
table.
Item Description Definition
1 Size —
2 Rank 1R = Single-rank
2R = Dual-rank
3R = Three-rank
4R = Quad-rank
3 Data width x4 = 4-bit
x8 = 8-bit
4 Voltage rating L = Low voltage (1.35V)
U = Ultra low voltage (1.25V)
Blank or omitted = Standard
5 Memory speed 12800 = 1600-MT/s
10600 = 1333-MT/s
8500 = 1066-MT/s
6 DIMM type R = RDIMM (registered)
E = UDIMM (unbuffered with ECC)
L = LRDIMM (load reduced)
For more information about product features, specifications, options, configurations, and compatibility, see
the product QuickSpecs on the HP Product Bulletin website (
http://www.hp.com/go/productbulletin ).
Single-rank and dual-rank DIMMs
DIMM configuration requirements are based on these classifications:
• Single-rank DIMM—One set of memory chips that is accessed while writing to or reading from the
memory.
• Dual-rank DIMM—Two single-rank DIMMs on the same module, with only one rank accessible at a time.
