Component identification 12
administrators is to restart the system. Resetting the system erases any information which could support
problem analysis, but the NMI feature preserves that information by performing a memory dump before a
system reset.
To force the system to invoke the NMI handler and generate a crash dump log, do one of the following:
•
Use the iLO Virtual NMI feature.
•
Short the NMI header ("
" on page
For more information, see the HP website

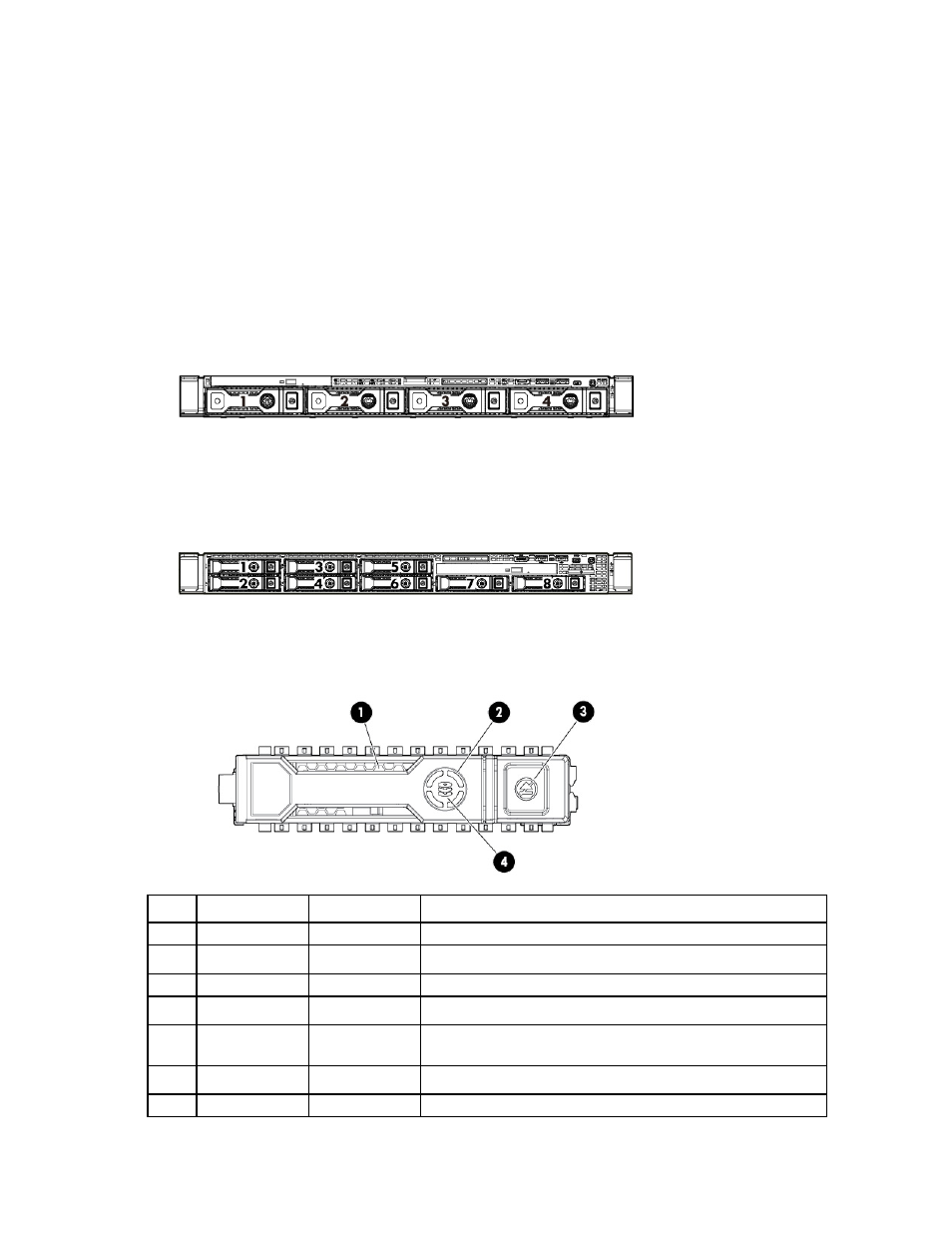

Drive numbering
•
Four-bay LFF drive model
•
Eight-bay SFF drive model
When the two-port SATA cable is installed in the eight-bay drive cage ("
), the server supports the six-drive SATA configuration. In this configuration, drive bays 1
through 6 are populated, while drive bays 7 and 8 contain drive blanks.
Drive LED definitions
Item LED
Status
Definition
1
Locate
Solid blue
The drive is being identified by a host application.
Flashing blue
The drive carrier firmware is being updated or requires an update.
2
Activity ring
Rotating green
Drive activity
Off
No drive activity
3
Do not remove
Solid white
Do not remove the drive. Removing the drive causes one or more of
the logical drives to fail.
Off
Removing the drive does not cause a logical drive to fail.
4
Drive status
Solid green
The drive is a member of one or more logical drives.
