Hardware options installation 36
4. Remove the access panel (on page 18 ).
5. Remove the PCI riser cage (on page 19 ).
6. Install the storage controller (" Installing a storage controller " on page 37 ).

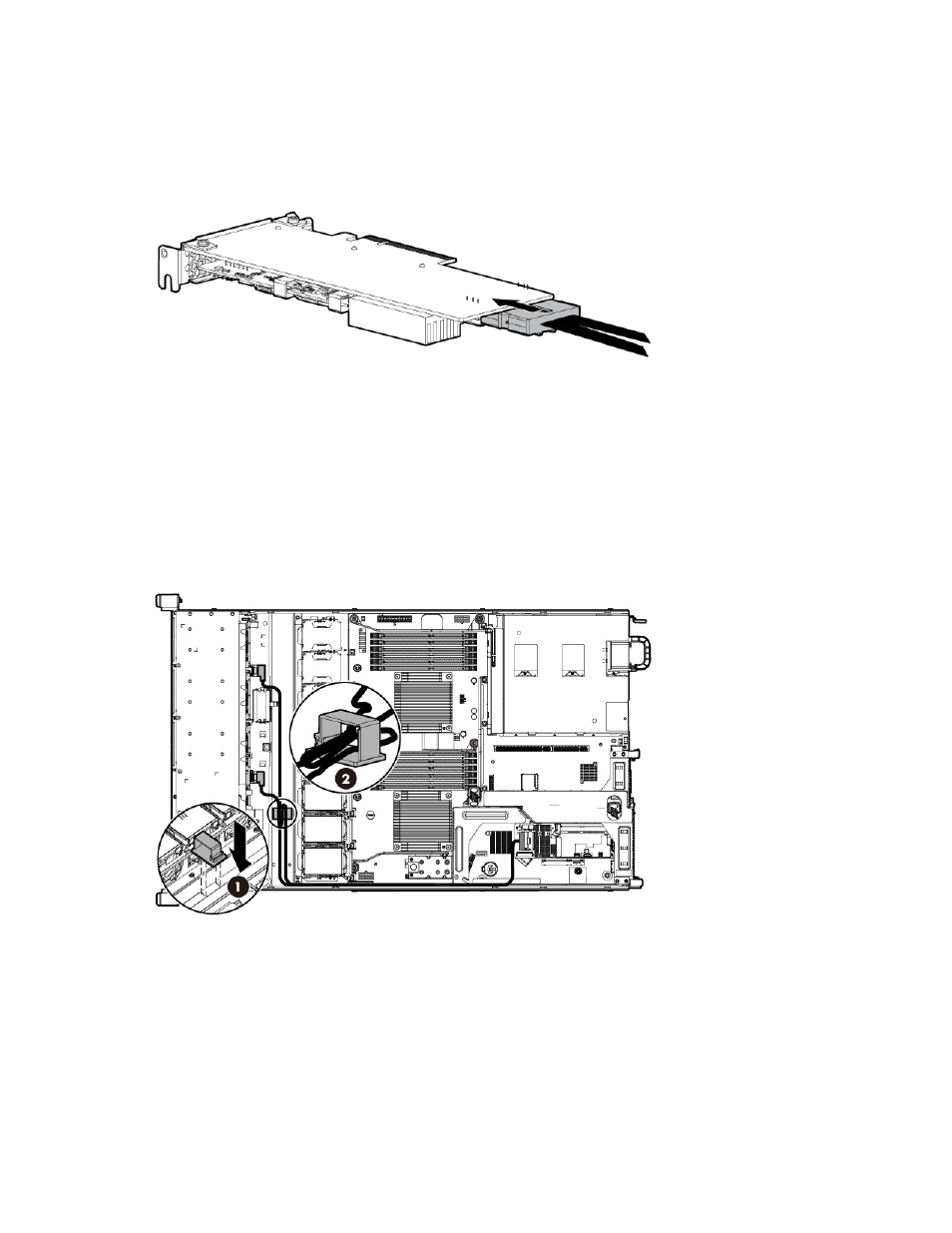

7. Connect the common end of the Mini-SAS Y-cable to the controller option.
8. Install the PCI riser cage (on page 20 ).
9. Route the split ends of the Mini-SAS Y-cable along the side of the system board towards the front chassis,
and then connect the cable to the drive backplane.
10. Secure the Mini-SAS Y-cable using the cable clip that came with the kit:
a. Use the two vertical dash marks in front of the fan cage to position the clip correctly, and then attach
the cable clip.
b. Secure the excess length of the Mini-SAS Y-cable in the cable clip.
11. Connect the rest of the drive cables required in this drive configuration. For more information, see
"Storage cabling (on page
69 )."
12. If you intend to use an FBWC module and capacitor pack, install these options now (" Installing the
FBWC module and capacitor pack " on page 38 ).
13. Install the access panel (on page 19 ).
14. Install the server into the rack (" Installing the server into the rack " on page 26 ).
15. Power up the server (on page 16 ).
