Installing and Configuring the ACL Tape Drive for the
NonStop S-Series Server
N1526A and N1527A ACL Tape Drive Installation and User’s Guide— 542756-003
3 -3
Installation
You can use any of these SCSI cables.
6. Connect one end of the VHDCI 68-pin to VHDCI 68-pin SCSI cable to the top port
below the rear of the internal tape drive. See Figure 3-2 .
7. Connect the other end to the bottom SCSI port on the SCSI Converter card. See
Figure 3-3 .
8. Install one of the LVD terminators on the top SCSI port of the Library Controller
card. See Figure 3-3 .
9. Install the other LVD terminator on the bottom SCSI port below the rear of the
internal tape drive. See Figure 3-2 .
Table 3-1. SCSI Cables
Model Number Description
519-003W 3 meter copper SCSI cable
519-015W 15 meter copper SCSI cable
519-020W 20 meter copper SCSI cable
519-023W 23 meter copper SCSI cable

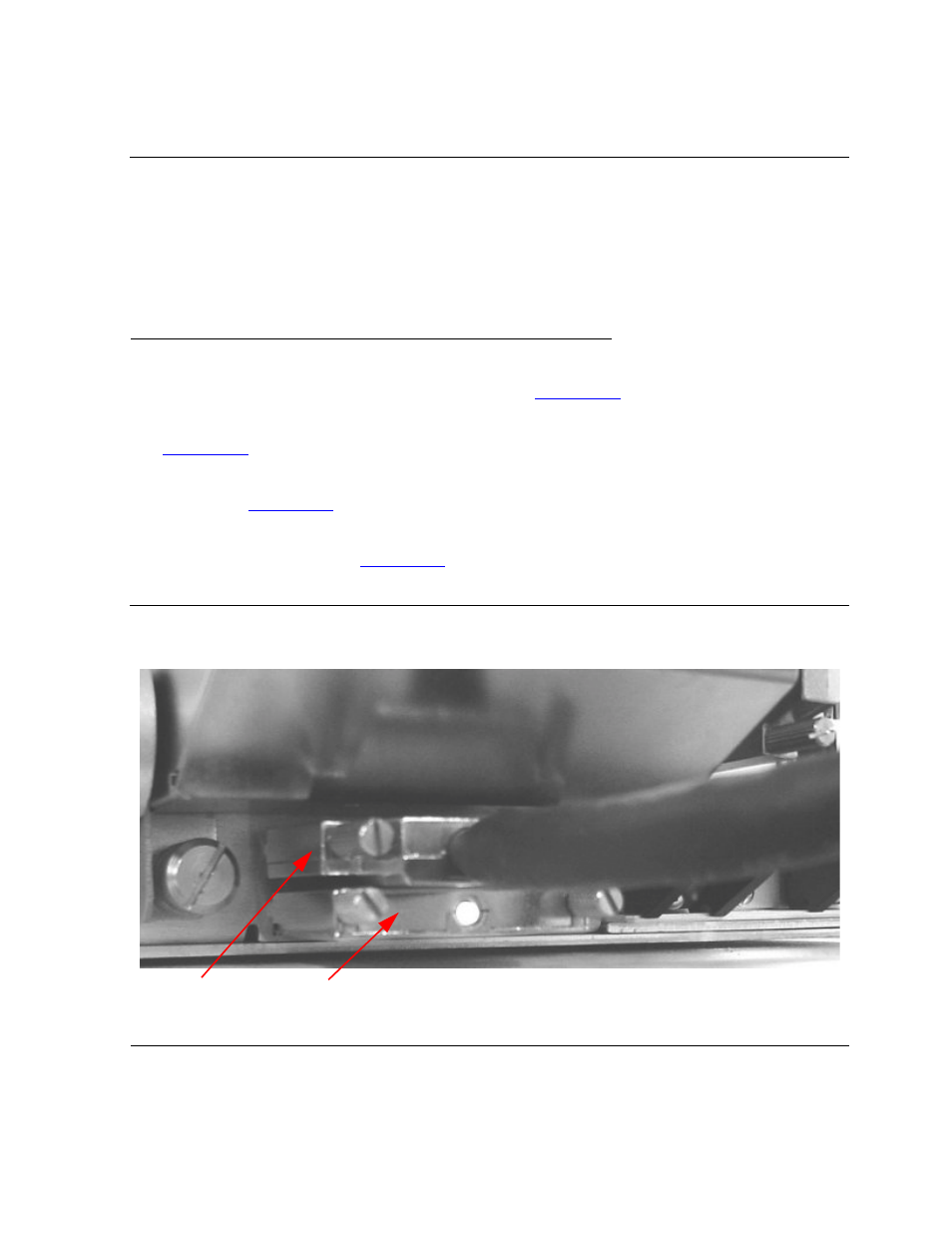

Figure 3-2. Rear View Below of Internal Tape Drive
SCSI Cable LVD Terminator
