Setting Up the ACL Tape Drives
N1526A and N1527A ACL Tape Drive Installation and User’s Guide— 542756-003
2 -5
Setting Up the N1527A ACL Tabletop
14. Attach the unit to the rack using two 10-32 captive thumbscrews that are located
on the lower left and right front panel.
15. Fully tighten the rear-mounting bracket screws.
Setting Up the N1527A ACL Tabletop
The N1527A ACL tabletop requires no mechanical assembly for mounting. (See
Figure 2-4 .) Place the unit on a desk, table, or other stable horizontal surface. Ensure
that the cooling grills at the front and the fans at the rear of the unit are not obstructed.
For adequate cooling, allow 12 inches (30.4 centimeters) of clearance at the front and
6 inches (15.2 centimeters) at the rear of the unit.

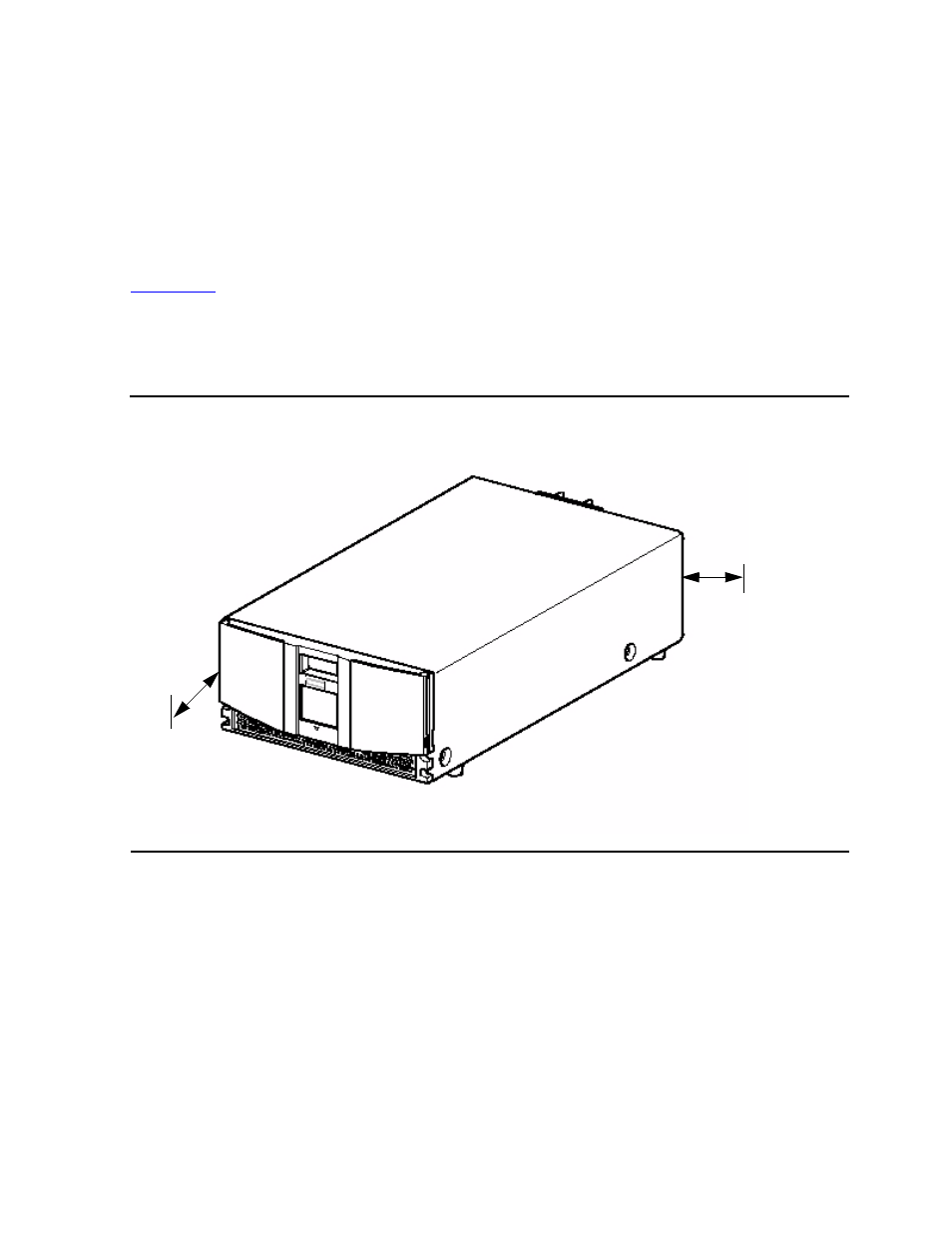

Figure 2-4. Tabletop Model Clearances
6 inches
(15.2
12 inches
(30.4
centi-
meters)
centi-
meters)
