86 ARTURIA – MOOG MODULAR V 2.6 – USER’S MANUAL
7.1.12 Ring modulator

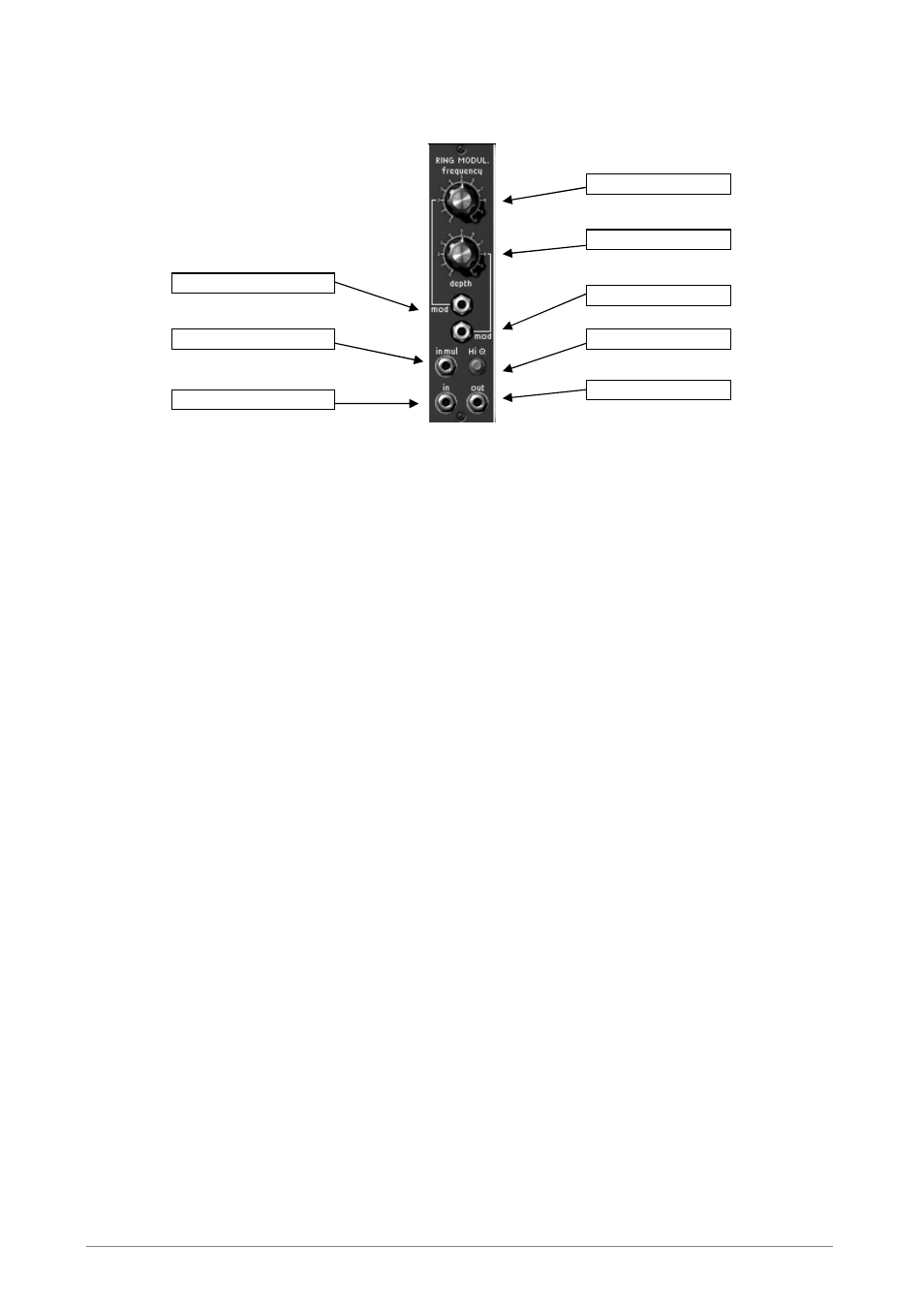

Ring modulator
Frequency Sets the frequency of the multiplicative sinusoid
Depth Sets the amplitude for the multiplication of signals
HiQ Selection High quality selection
Freq. Mod. Input Frequency modulation connection jack
Depth Mod. Input Depth modulation connection jack
Mul Signal Input Multiplicative signal connection jack
Signal Input Input jack for signal to be treated
Signal output Output jack for treated signal
The ring modulator multiplies two signals to create non-harmonics frequency. It is then easy to
produce metallic sounds.
When “Mul Signal Input” is not connected, the input signal is multiplied by an internally
generated sinusoid signal for which the frequency can be set with the “Frequency” button. The
modulation amplitude and subsequently the effect amplitude obtained can be set with the
“Depth” button. Once connected, “Mul Signal Input” becomes the source of the multiplicative
signal.
The depth and the frequency of the internal sinusoid can be modulated with the corresponding
modulation inputs.
The “HiQ” interrupter, at the cost of an increase in calculation load, increases the quality of the
sound.
Frequency
Depth
Freq. Mod. Input
Depth Mod. input
Mul Signal Input HiQ Selection
Signal Out
Signal In
