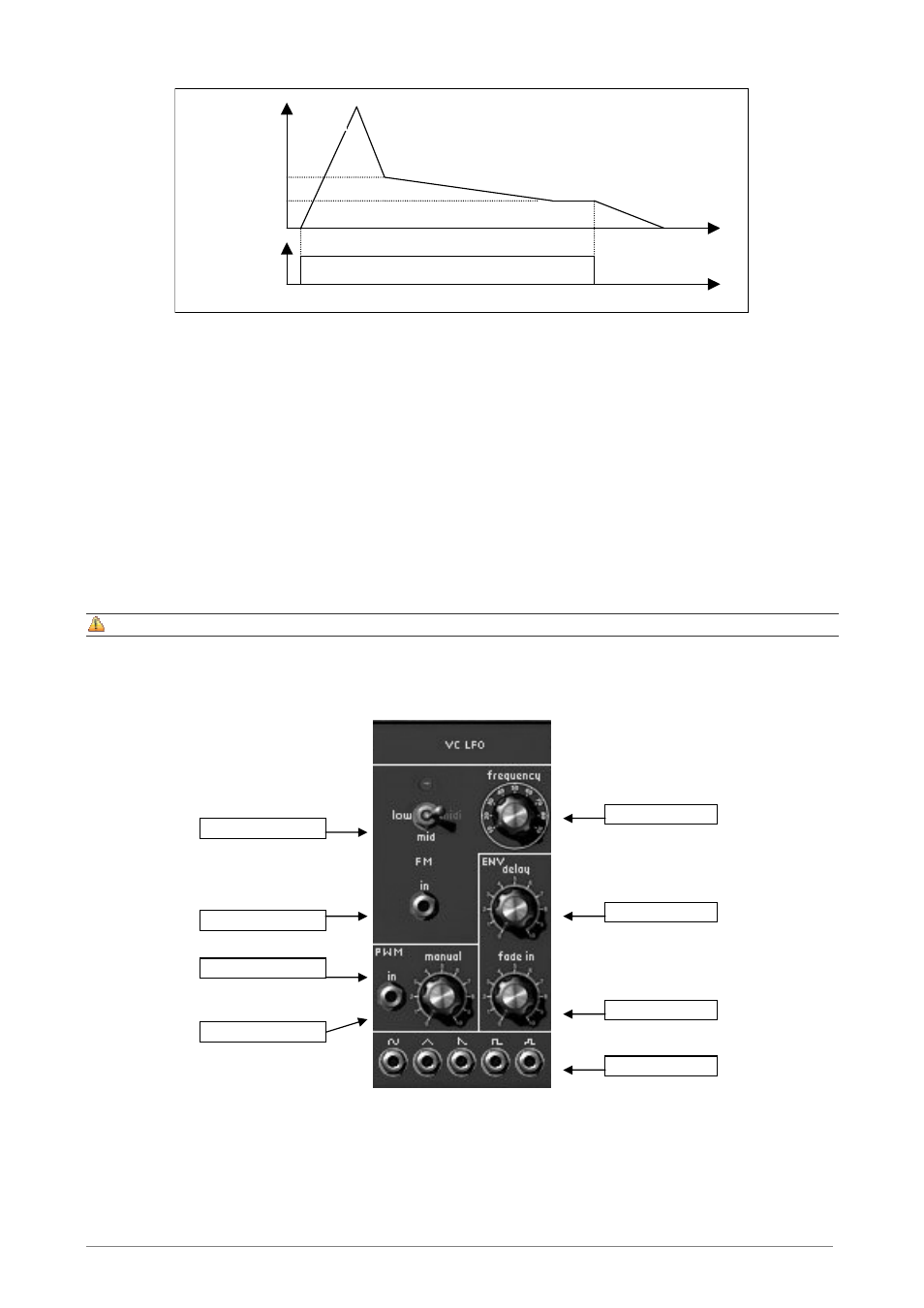

Representation of the output VCA envelope
The output amplifier internally connected to this envelope has volume “gain” and amplitude
input modulation settings.
The input trigger can be connected to the output trigger coming from the keyboard, the trigger
delay module, the oscillators or LFO trigger output, or from the sequencer.
Each of the two amplifiers possesses a trigger output, which is activated when the signal level
is cancelled. This output can be very useful for stopping the sequencer for example.
A jack allows the connection of the output of the associated envelope to other modulation
inputs.
A button applies the simulation of the current regulation present in the original Moog amplifiers
(soft clipping).
Soft saturation is heavy on CPU calculation.
7.1.6 Low frequency oscillators (LFO)
Low frequency oscillator
Frequency
Delay
Fade in
Width
PWM Input
FM Input
Outputs
Mode
