ARTURIA – MOOG MODULAR V 2.6 – USER’S MANUAL 73
The low-pass 24 dB/octave filter is typical of Moog synthesizers. It has a setting for the cut-off
frequency and a setting for the resonance. Only connecting the output of any module to one of
the 3 modulation inputs can dynamically modulate the cut-off frequency.
Like all of the modulation inputs, once connected, turning the dial of the jack with a right click
sets its amplitude. Receiving a modulation directly from the output of a generator (envelope,
oscillator, and sequencer), the maximum modulation amplitude is of +/- 9 octaves. When it is
necessary to have a stronger modulation, an amplifier module must amplify the signal of the
generator.

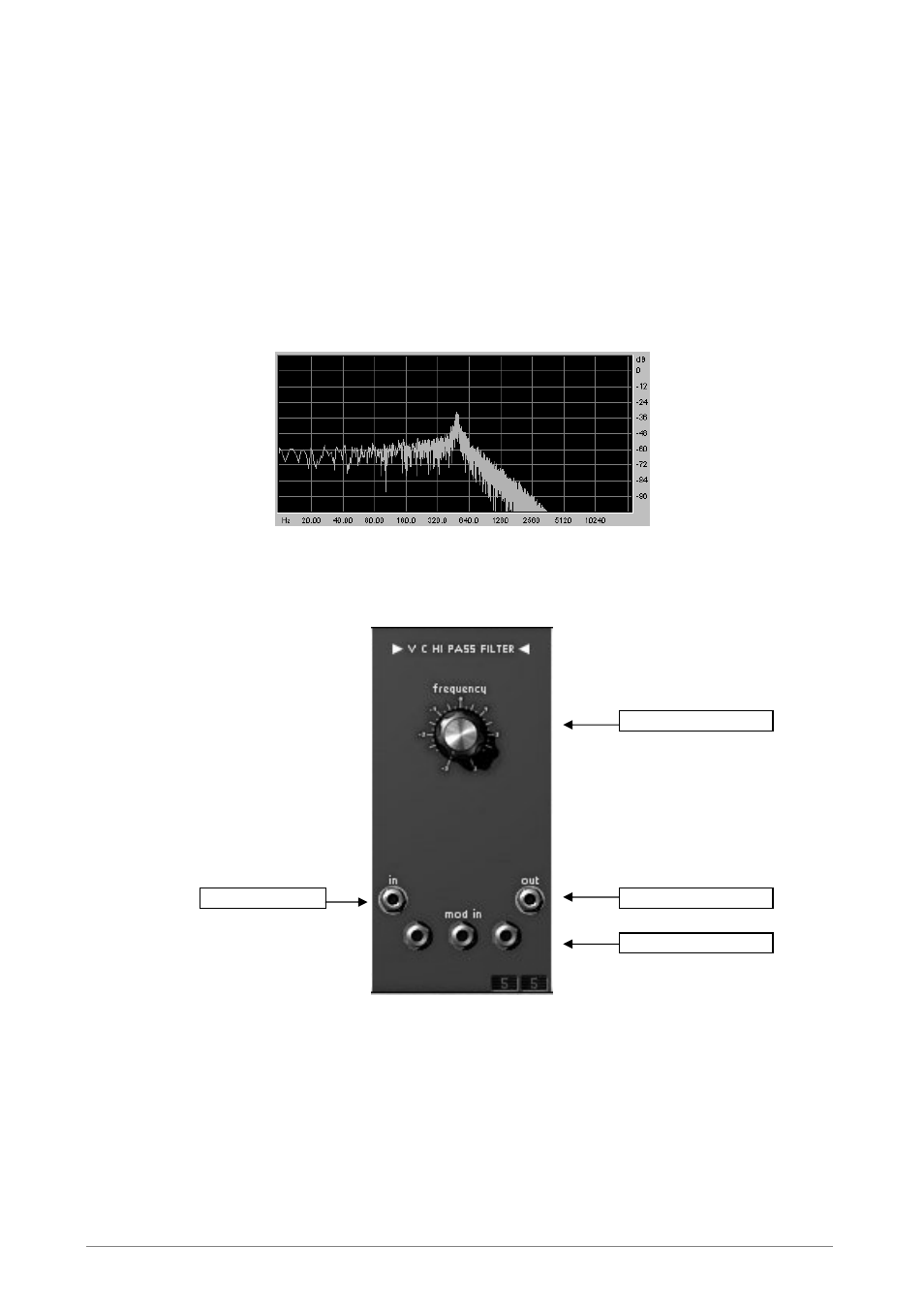

The following image represents the spectrum of a low-pass resonant filter with a cut-off
resonance of 500 Hz.
Low-pass 24 dB/octave filter
7.1.3.2 High-pass 24 dB/octave filter (904B)
High-pass filter
Frequency Sets the filter cut-off frequency
Audio Output Filter output connection jack
Audio Input Filter input connection jack
Modulation inputs Frequency modulation input connection jacks
Keyboard Follow Keyboard follow choice tuning the filter (no follow, follow 1,2,3 or 4).
Sequencer Choice Choice of the sequencer output tuning the filter (no sequencer,
sequencer 1, 2, 3 or 4).
Frequency
Audio Output Audio Input
Modulation inputs
