first modulation input allows the dynamic modification of the bandwidth, the 2 others, the
central frequency.
A “type” selector provides a choice of filtering, band pass or band reject.

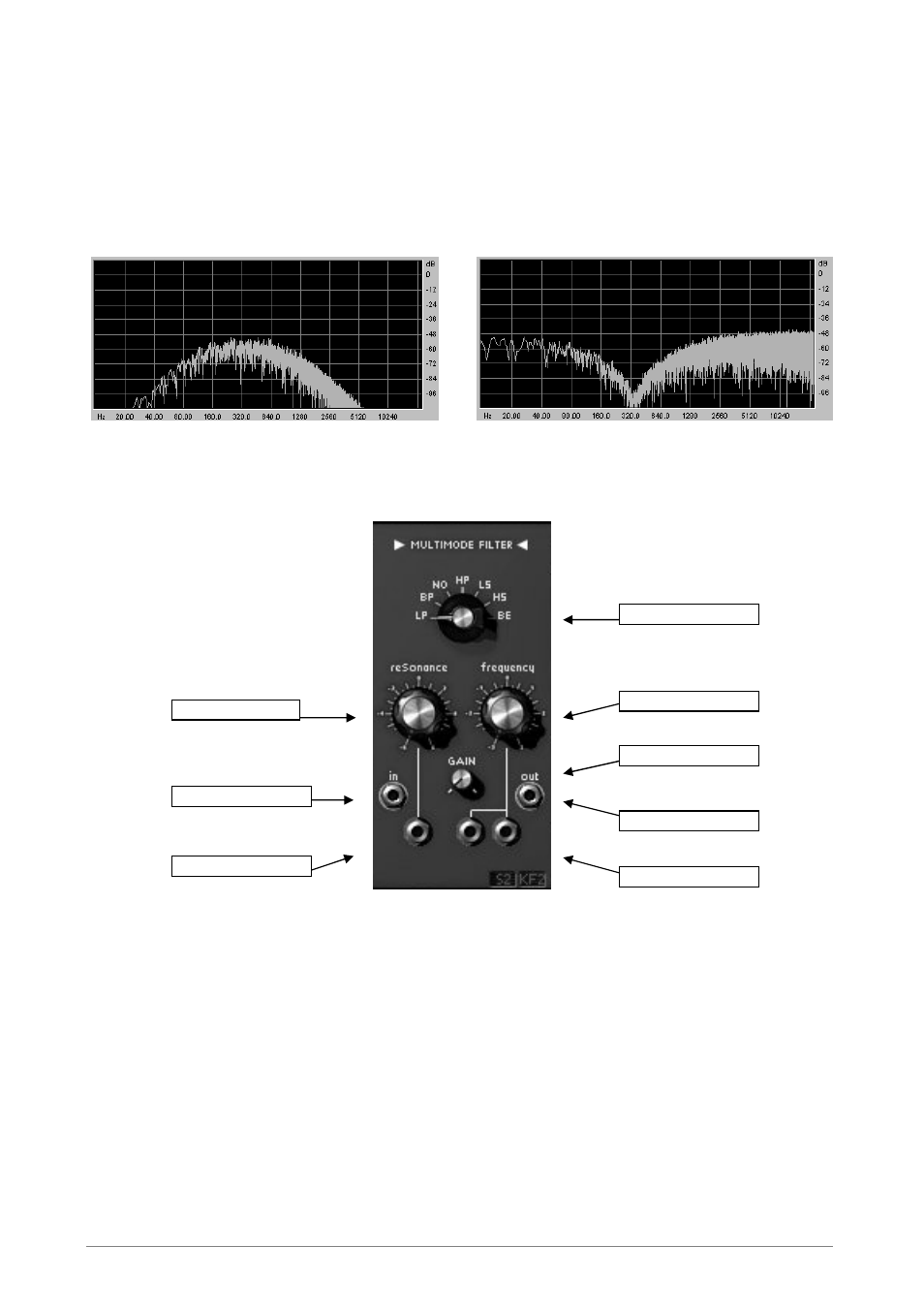

The following images represent the spectrum of the band-pass and band-reject filters where
the central frequency is 500 Hz.
Band-pass 24 dB/octave filter Band reject 24 dB/octave filter
7.1.3.4 Multi-mode 12 dB/octave filter
Multimode 12 dB/octave filter
Type
Choice of filter type
Frequency Sets the filter cut-off frequency
Resonance Sets the resonance of the filter
Gain Sets the gain for bell, shelf High and Low.
Audio Output Filter output connection jack
Audio Input Filter input connection jack
FM Inputs Frequency modulation input jacks
ModRes Input Resonance modulation input connection jack
Keyboard follow Keyboard follow choice tuning the filter (no follow, follow 1, 2, 3 or 4).
Sequencer Choice Choice of the sequencer output tuning the filter (no sequencer,
sequencer 1, 2, 3 or 4).
Type
Frequency
Resonance
Gain
Audio Output
FM Inputs
Audio Input
ModRes Input
