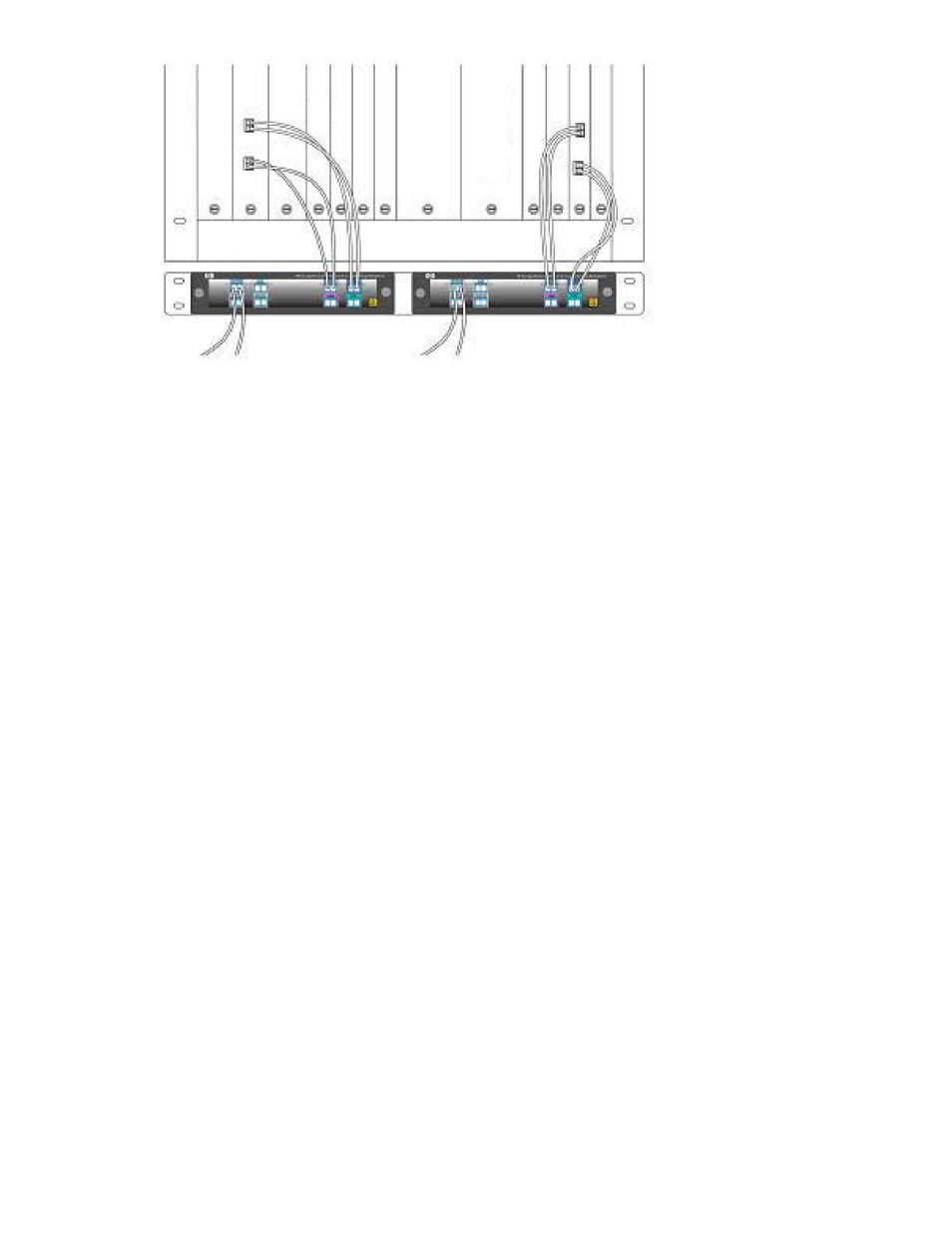

Figure 13 Cabling an HP CWDM Add/Drop MUX Module

Connecting to the network

There are two possible network configurations, using either two or three HP CWDM MUX modules:

Two HP CWDM MUX configuration

For a two HP CWDM MUX module configuration, connect the network port of the first HP CWDM

MUX module to the network port of the second HP CWDM MUX module.

For non-redundant cabling, see

Figure 4

and

Figure 5

.

For redundant cabling, see

Figure 7

and

Figure 8

.

Three HP CWDM MUX configuration

For a three HP CWDM MUX module configuration:

1.

Connect the network port of the HP CWDM 8-port Multiplexer/Demultiplexer to the network port of

the first HP CWDM Slot A/Slot B 4-port Add/Drop Multiplexer.

2.

Connect the pass port of the HP CWDM Slot A/Slot B 4-port Add/Drop Multiplexer to the network

port of the second HP CWDM Slot B/Slot A 4-port Add/Drop Multiplexer.

For non-redundant cabling, see

Figure 6

.

For redundant cabling, see

Figure 9

.

CWDM MUX user guide

23
