gigabits of data from one location to another. Typical applications include linking two data centers

to become one virtual site, mirroring two sites for disaster recovery, or providing a large amount

of bandwidth between two buildings.
Each HP CWDM MUX supports one network backbone connection and four or eight connections to

CWDM (SFP) transceivers in the locally-attached Fibre Channel Storage Area Network (FC SAN) or

Ethernet network equipment.

Point-to-point non-redundant configurations

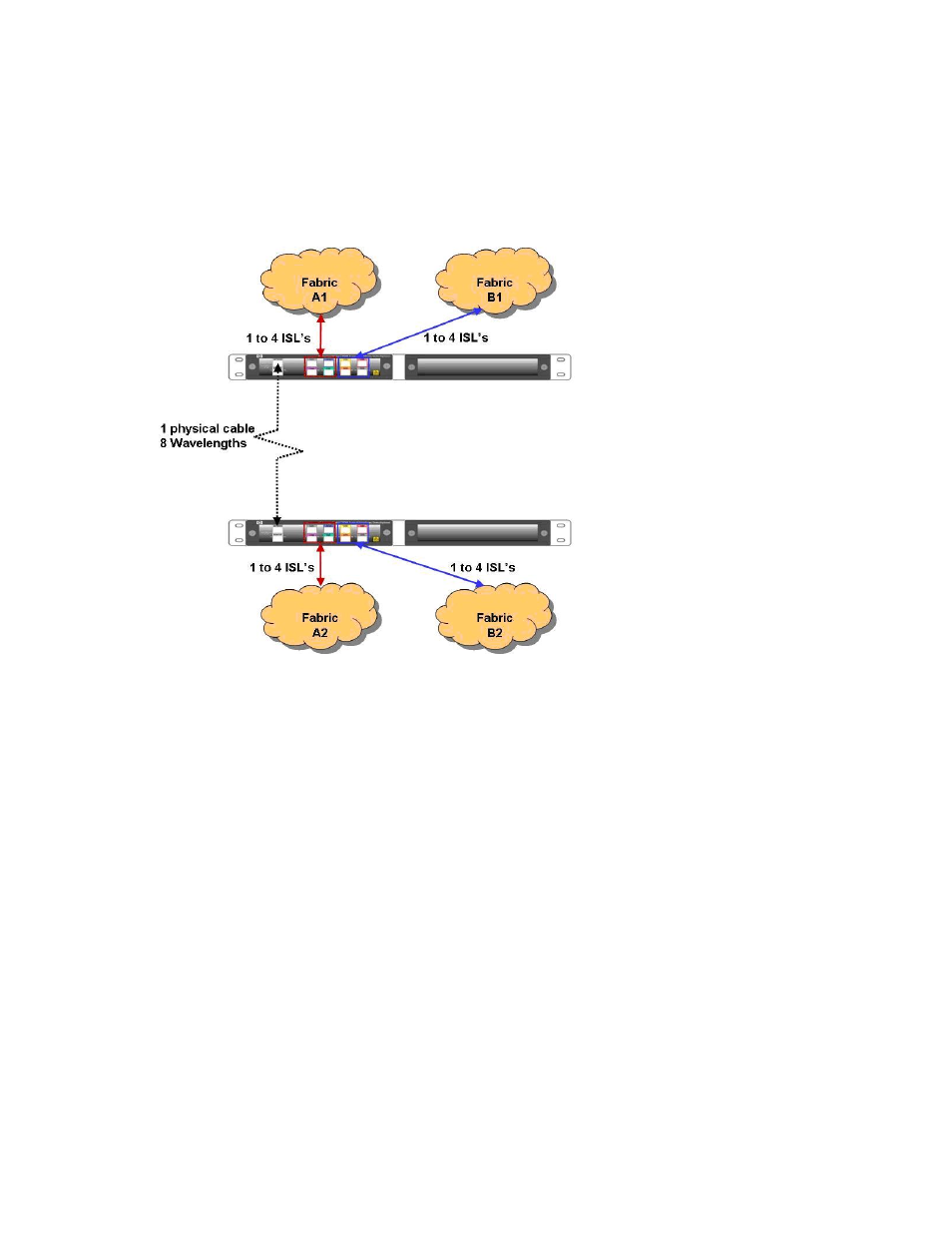

Figure 4 Point-to-point: 8-port (non-redundant)

CWDM MUX user guide

13
