HP QLogic QMH4062 1GbE iSCSI Adapter for c-Class BladeSystem - Manual (Page 32)

Setup 32
6. Enter the CHAP name into the dialog box, and then press the Enter key. Make sure that the CHAP name
you enter is the same as the CHAP name configured in the SAN.
7. Select CHAP Secret:, and then press the Enter key.
8. Enter the CHAP secret, and then press the Enter key. Make sure that the CHAP secret you enter is the
same as the CHAP secret configured in the SAN.
9. Enter the CHAP secret again, and then press the Enter key at the Confirm New Secret prompt.
10. If your site uses Mutual CHAP, select Bidirectional CHAP:, and then press the Enter key to change the
setting from Disabled to Enabled.
11. Press Escape to close Security Settings.

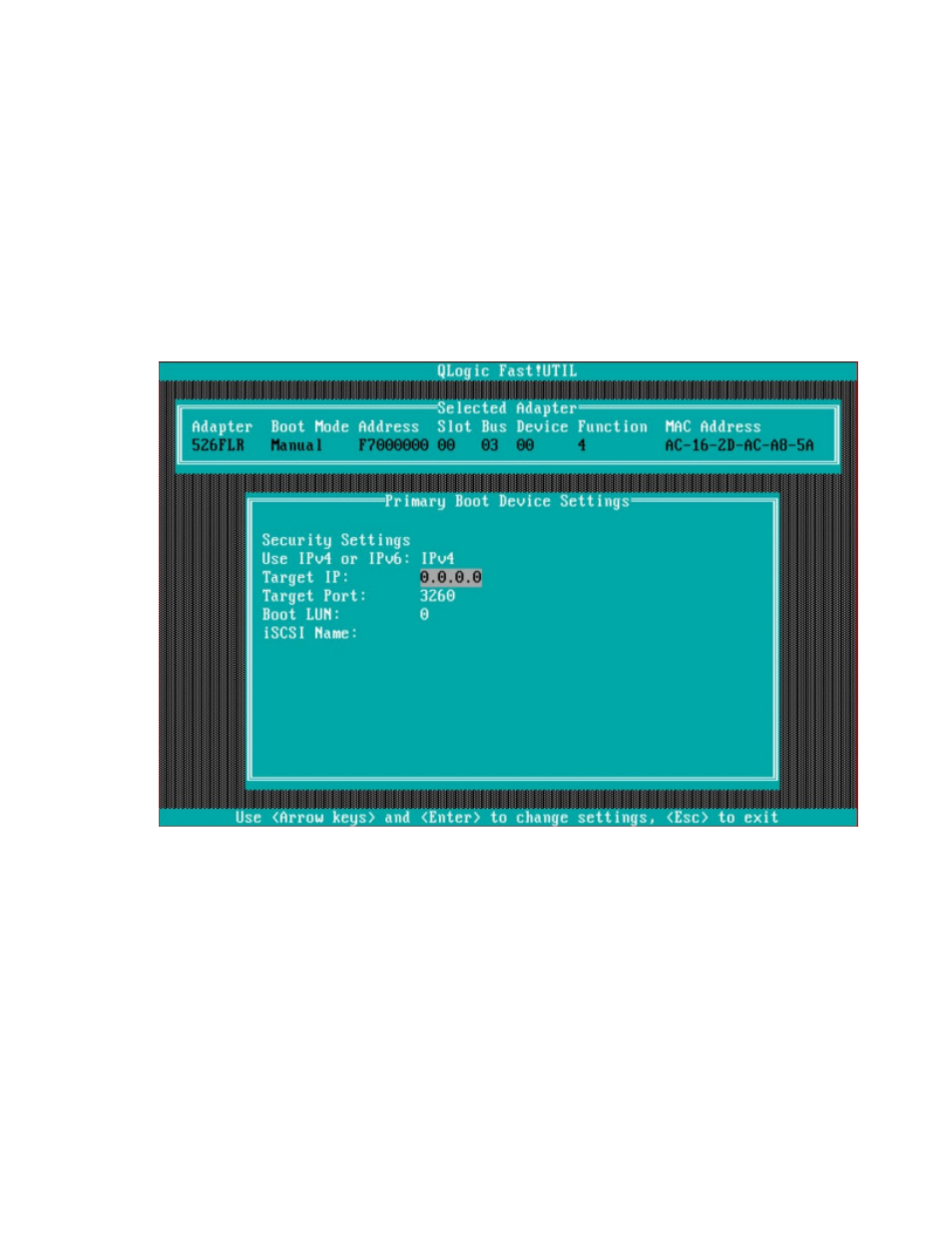

Setting the Target IP address and iSCSI name
1. Select Target IP:, and then press the Enter key.
2. Enter the SAN IP address, and then press the Enter key. The Target Port defaults to 3260, and the Boot
LUN defaults to zero.
