32 LUN Manager for the XP10000/XP12000
2. Click the Port tab. The Port pane appears.

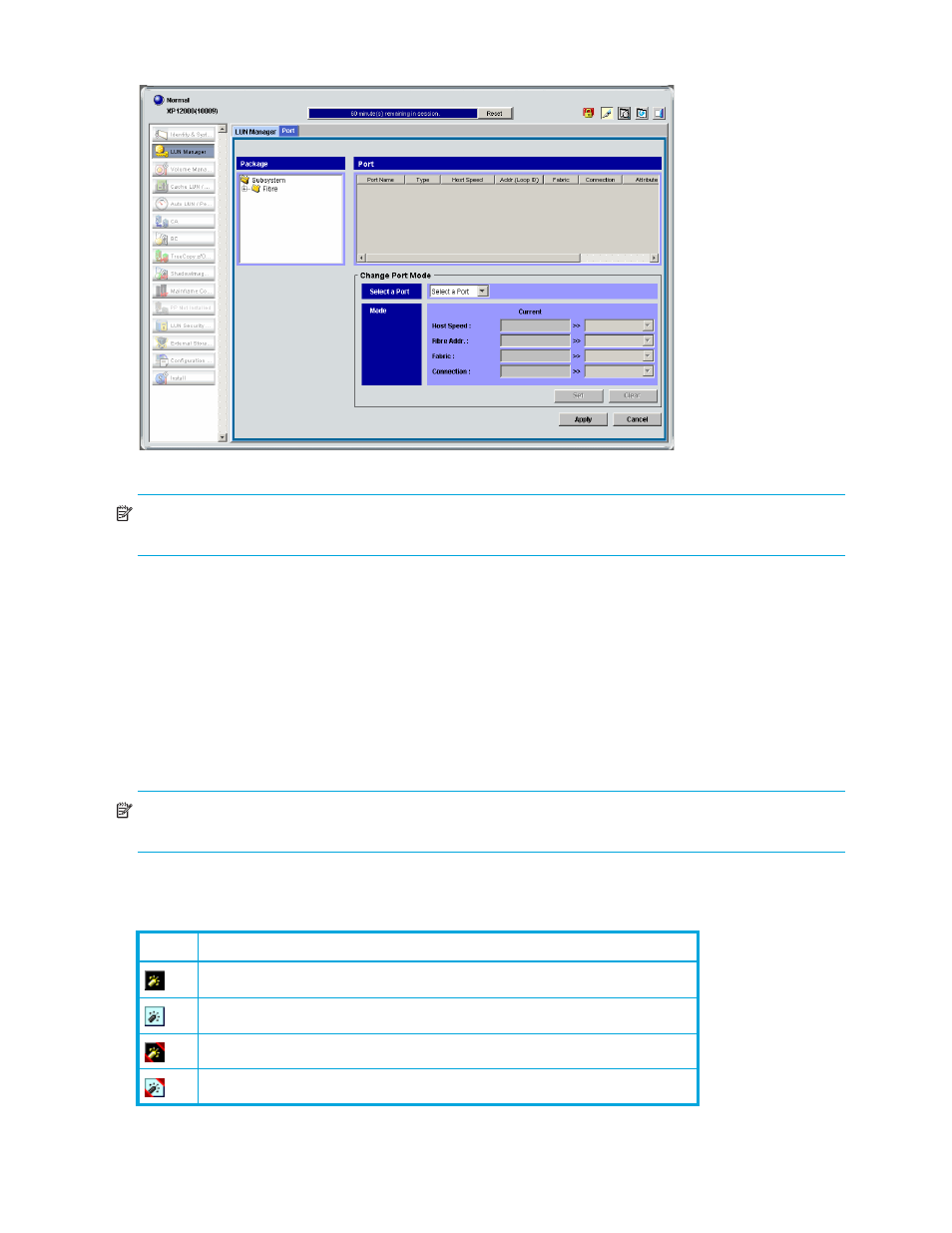

Figure 15 Port pane
NOTE: The storage partition administrators can display ports and operate within only the allocated SLPR.
For more information about SLPRs, see the HP StorageWorks XP Disk/Cache Partition User Guide.
Port pane
The Port pane includes the package tree, port table, and change port mode box.
Package tree
Use this tree to select the port. The Fibre folder appears under the Subsystem folder at the top of the tree.
When you double-click the Fibre folder, the folder opens and lists all Fibre Channel channel adapter (CHA)
packages. When you double-click a CHA package, port blocks appear below the channel adapter. When
you right-click a CHA package, you can choose standard mode, high-speed mode, or high-speed (2 port)
mode.
NOTE: High-speed (2 port) mode is available only if the XP disk array has firmware version 21.06.22 or
later installed.
The following icons are used to indicate status:
Table 10 Channel adapter package icons for Port operations
Icon Status
A short-wave CHA package in standard mode (Fibre Channel)
A long-wave CHA package in standard mode
A short-wave CHA package in high-speed or high-speed (2 port) mode
A long-wave CHA package in high-speed or high-speed (2 port) mode
