LUN Configuration and Security Manager XP user guide for the XP10000/XP12000 21
LU Path table
On the right side of the LU Path tree is a table that displays LU Path information about the hosts in the tree.
The table contains the following information:
• LUN: LUNs (address numbers) assigned to LUs, which are LDEVs that can be accessed by hosts. If no
paths are defined, the other table columns are blank.
The following icons indicate status.
• CU:LDEV: The CU image and LDEV numbers. If an LDEV number ends with #, the logical volume is an
external LU. If an LDEV number ends with V, the logical volume is a virtual volume.
• Emulation: Emulation type for each LDEV
• Capacity: Size of each LDEV
• RAID: RAID level for each LDEV. If the logical volume is an external LU or virtual volume, the RAID
column displays a hyphen (-) instead of a RAID level.
• Paths: Number of alternate paths, if any
• VMA:Access Attribute: Access attribute of each LDEV. If a VMA is set on a logical volume, VMA:
appears at the beginning of the access attribute.
WWN name table

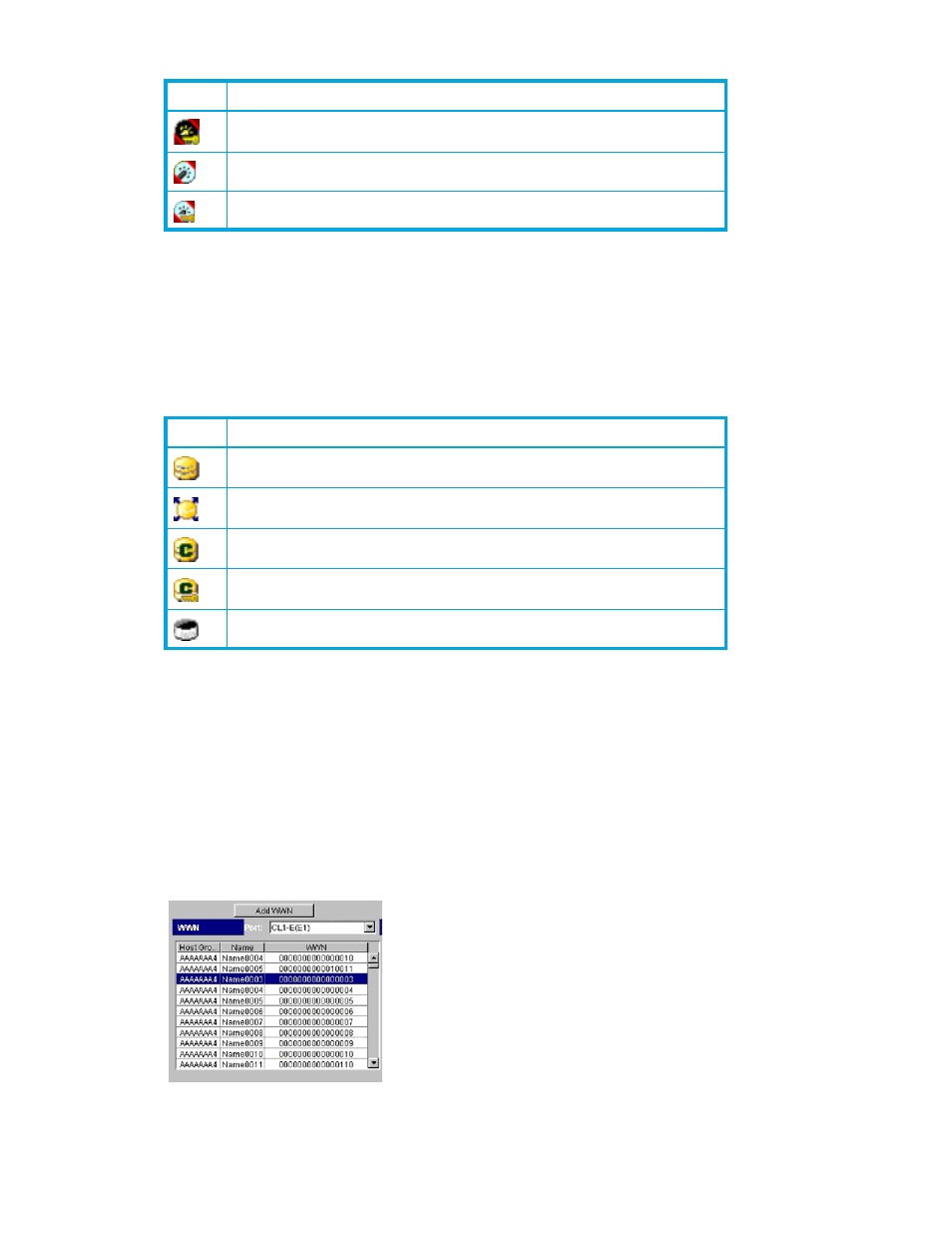

Figure 8 WWN name table
A short-wave port in high-speed mode with LUN security
A long-wave port in high-speed mode without LUN security
A long-wave port in high-speed mode with LUN security
Table 6 Fibre Channel port icons for LUN Manager operations (continued)
Icon Status
Table 7 LUN icons for LUN Manager operations
Icon Status
A logical volume to which an LU path is defined
An expanded LU
A command device
A command device with security enabled
A LUN to which no LU path is defined
