The Take Up Reel Accessory
Available with your printer as an option is the Take Up Reel. The Take Up Reel
consists of the left and right hand assemblies, sensor assembly, spindle assembly,

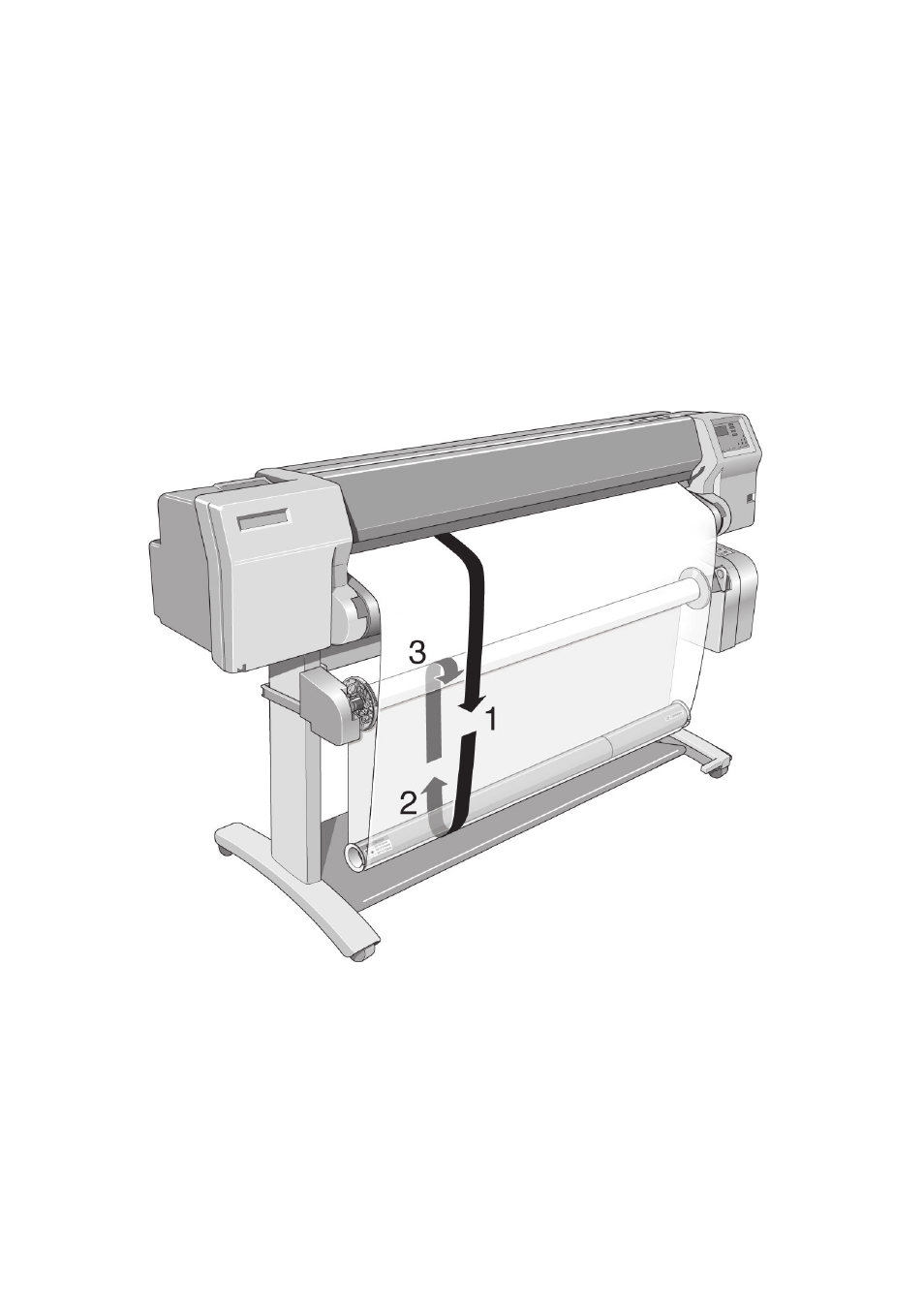

core tube and a media weight. As the media is fed out of the printer (1) it travels
down the front of the printer, around the Media Weight (2) and then onto the Core
Tube (3). The Core Tube turns, reeling in the printed media.
