1-26 Chapter 1: Product introduction

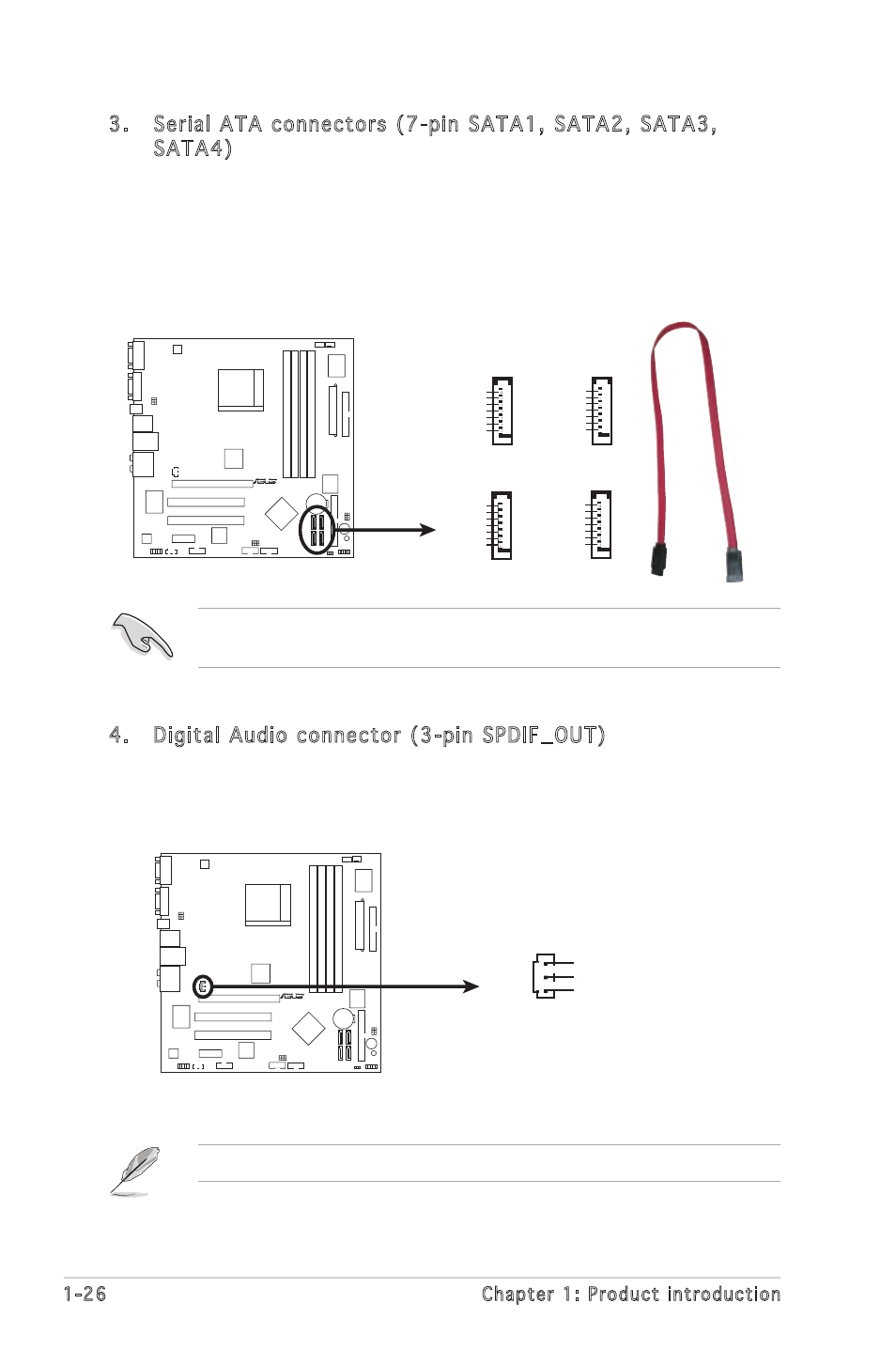

3. Serial ATA connectors (7-pin SATA1, SATA2, SATA3,
SATA4)
These connectors are for the Serial ATA signal cables for Serial ATA
hard disk drives. The current Serial ATA I interface allows up to 150
MB/s data transfer rate.
Install the Windows ® 2000 Service Pack 4 or the Windows ® XP Service
Pack1 or later before using Serial ATA.
R
M2R-FVM
M2R-FVM SATA Connectors
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA3
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
SATA1
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
SATA4
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
SATA2
4. Digital Audio connector (3-pin SPDIF_OUT)
This connector is for the S/PDIF audio module to allow digital sound
output. Connect one end of the S/PDIF audio cable to this connector
and the other end to the S/PDIF module.
The S/PDIF out module is purchased separately.
R
M2R-FVM
M2R-FVM Digital Audio Connector
SPDIF_OUT
GND
+5V
SPDIF
1
