1-12

Chapter 1: Hardware information

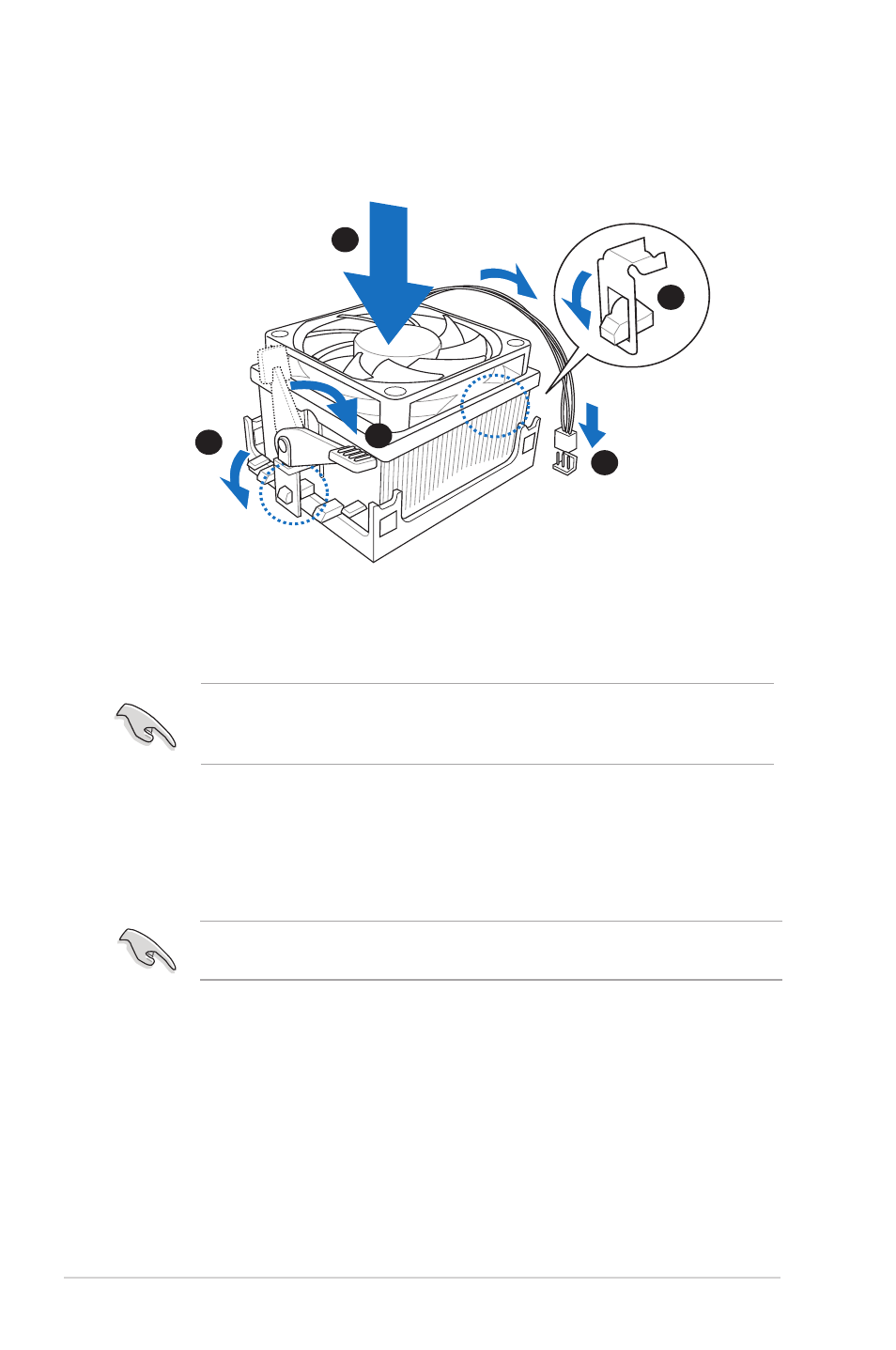

2. Attach one end of the retention bracket to the retention module base.

1

3

4

5

2

3. Align the other end of the retention bracket (near the retention

bracket lock) to the retention module base. A clicking sound denotes

that the retention bracket is in place.

Make sure that the fan and heatsink assembly perfectly fits the

retention mechanism module base, otherwise you cannot snap the

retention bracket in place.

4. Push down the retention bracket lock on the retention mechanism to

secure the heatsink and fan to the module base.

5. When the fan and heatsink assembly is in place, connect the CPU fan

cable to the connector on the motherboard labeled CPU_FAN.

Do not forget to connect the CPU fan connector! Hardware monitoring

errors can occur if you fail to plug this connector.
