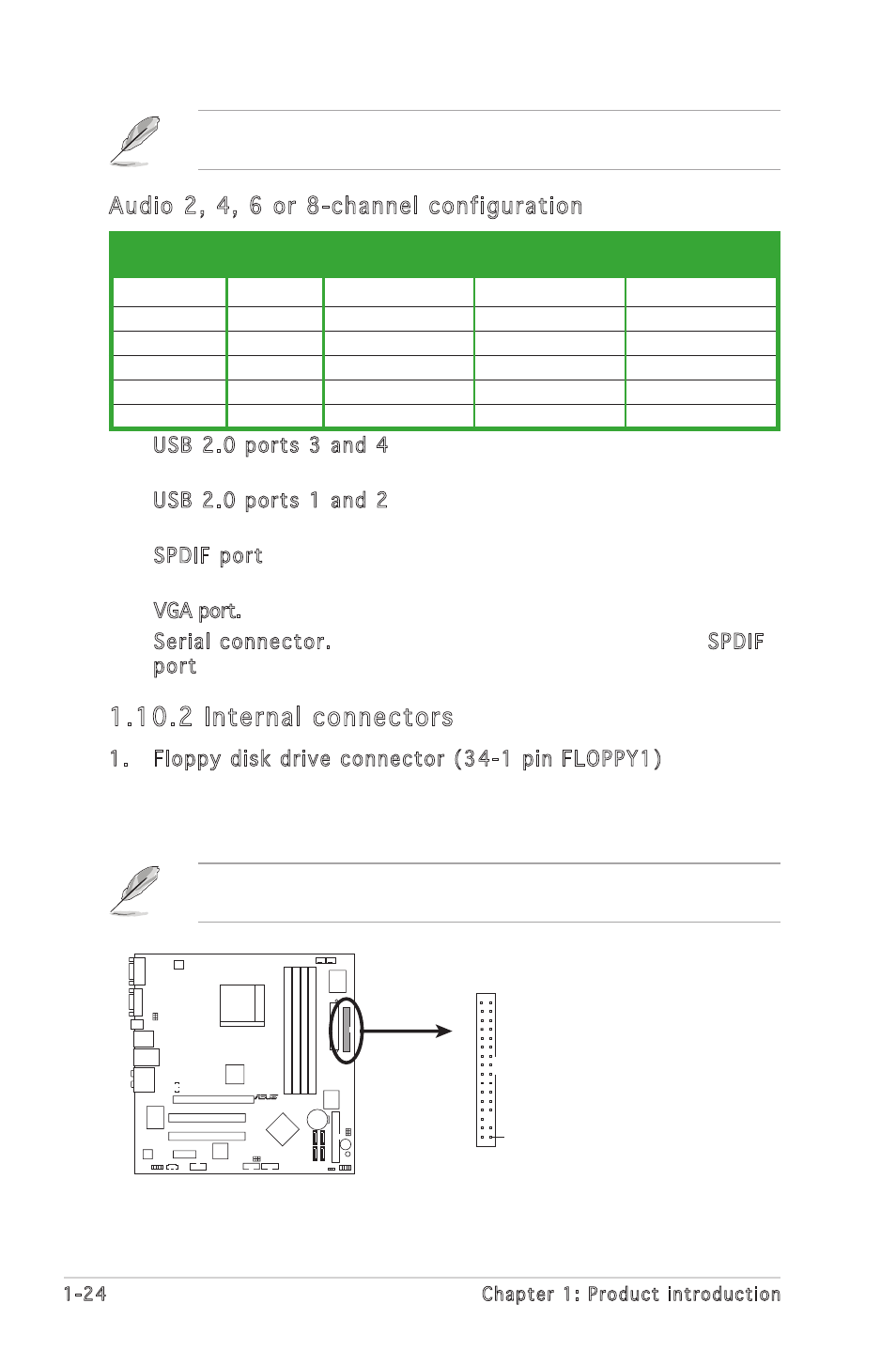

1-24 Chapter 1: Product introduction
Audio 2, 4, 6 or 8-channel configuration
1.10.2 Internal connectors
1. Floppy disk drive connector (34-1 pin FLOPPY1)
This connector is for the provided floppy disk drive (FDD) signal cable.
Insert one end of the cable to this connector, then connect the other
end to the signal connector at the back of the floppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection
when using an FDD cable with a covered Pin 5.
R
M2R-FVM
M2R-FVM Floppy Disk Drive Connector
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1. PIN 1
FLOPPY
Refer to the audio configuration table below for the function of the audio
ports in 2, 4, or 6-channel configuration.
9. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0 devices.
10. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0 devices.
11. SPDIF port. This port connectors an external audio output device via
a S/PDIF cable.
12. VGA port. This 15-pin VGA port connects to a VGA monitor.
13. Serial connector. This 9-pin COM1 port is for serial devices.SPDIF
port.
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange — Center /Subwoofer Rear Speaker Out Center/Subwoofer
Black — — — Rear Speaker Out
Gray — — Side speaker out Side speaker out
