6.0 CE REQUIREMENTS:
6.1 EMI
1. MEET FCC CLASS B
2. MEET EN55022 CLASS B
6.2 ESD
MEET IEC-801-2/8KV
6.3 EFT/BURST
MEET IEC-801-4/2KV
6.4 SAFETY REQUIREMENTS
1. MEET UL 1950
2. MEET IEC 60950
7.0 MTBF
80,000 hours at 25°C (demonstrated)
8.0 DC CONNECTOR AND CASE REQUIREMENTS
ATX MAIN CONNECTOR (P1)
HOUSING: P/N P20-I42002 or equivalent.
TERMINAL: P/N I42002BS-2 or equivalent.
PERIPHERAL POWER CONNECTOR
FLOPPY DRIVE POWER CONNECTOR
(P2, P4, P6, P7, P8, P9, P10)
(P3, P5)
HOUSING: JMT JP1120-4
HOUSING: JMT JP11635-4
HOUSING: WST P4-A10202 OR EQU
HOUSING: WST P4-I25001 OR EQU
TERMINAL: JMT J1120BS-2
TERMINAL: JMT J11635BS-2
TERMINAL: WST A10209BS-2
TERMINAL: WST I25001BS-2 OR EQU
Pin Signal 18AWG (Wire)
1 +12VDC Yellow
2 COM Black
3 COM Black
4 +5VDC Red
4.1 REMOTE ON/OFF CONTROL
The power supply is turned on or off by TTL signal.
Remote On/Off Signal Characteristics
4.2 AUXILIARY +5VSB
This power supply is specifically equipped with an independent stand-by
+5V output current, 2.0A max. This output will always provide +5V
except when the AC line is cut-off.
4.3 AUTO RESTART
If the output of the power supply drops out of the regulation caused by AC line Voltage,
the power supply will automatically resumes normal operation only after the AC line
voltage returns to the specified operating range.
5.0 ENVIRONMENT:
Ambient operation temperature
10°C to +50°C
Ambient operation relative humidity
20% to 85%
Ambient storage temperature
-40°C to +70°C
Ambient storage relative humidity
10% to 95%

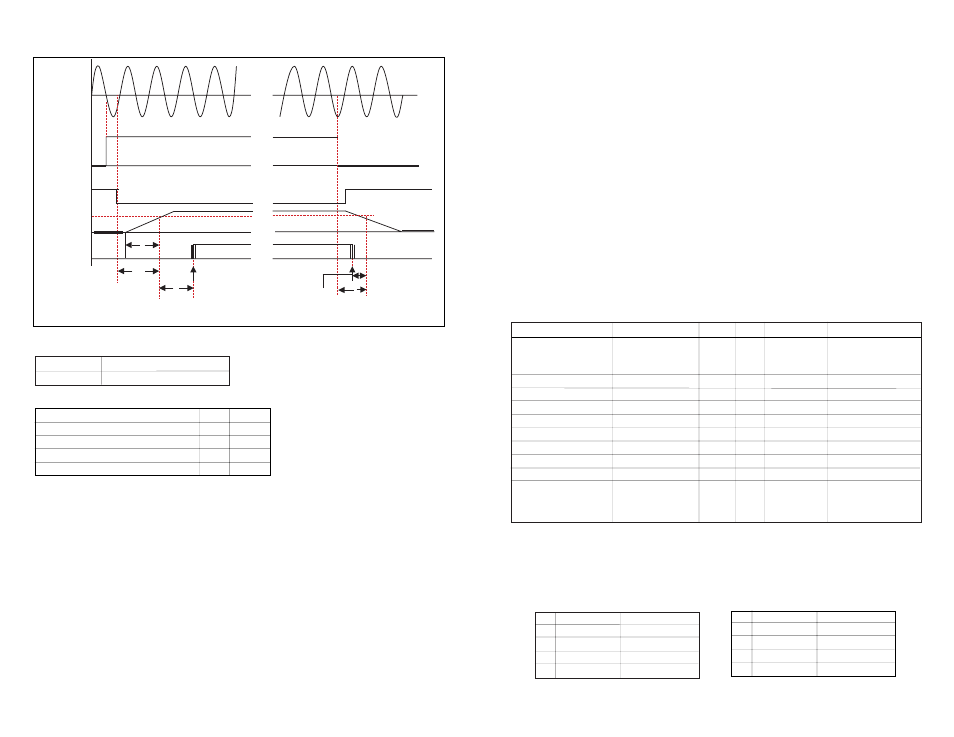

Active low Power supply turn on
Active high Power supply turn off
AC-V
AC-ON
AC-OFF
PS-ON
HIGH
LOW
T1
T2
T3
T5
T4
TURN-ON
POWER GOOD
ON-RING
OFF-RING
POWER FAIL
HIGH
HOLD-UP
P.G. WAVE FORM
VB= 4.75V
+5V Wave Form
PS-ON
MIN MAX
Vil, input low voltage
0.8V
Vil, input low current, Vin=0.4V
-1.6mA
Vih, input High voltage, lin=-200uA
2.0V
Vih open circuit, lin=0
5.25
Figure 1.
Pin Signal 22AWG (Wire)
1 +5VDC Red
2 COM Black
3 COM Black
4 +12VDC Yellow
16AWG (Wire)
Signal Pin Pin Signal 16AWG (Wire)
Orange (16AWG)
+3.3VDC 11 1 +3.3VDC Orange
Orange (22AwG)
+3.3V
default sense
Blue (18AWG)
-12VDC
12 2 +3.3VDC Orange
Black
COM 13 3 COM
Black
Green (22AWG)
PS-ON 14 4
+5VDC
Red
Black
COM 15 5
COM Black
Black
COM 6 6 +5VDC
Red
Black
COM 7 7
COM Black
White (18AWG)
-5V
18 8
POK Gray (18AWG)
Red
+5VDC 19 9 +5VSB Purple (18AWG)
Red
+5VDC 20 10
+12VDC Yellow
Red (22AWG)
+5V
+12VDC Yellow (22AWG)
default sense
default sense
