English-5
Installing CD-Writer Plus and Software
One Device
The OPTIONAL data cable that came with the
CD-Writer Plus drive is only used if there is no
cable already attached to the recommended
IDE controller in your computer, or the cable
supplied with your computer is not long
enough.
Use the connectors at the two ends of the
cable.
Two Devices
Attach the CD-Writer Plus to whichever
connector is not in use (center or end) on the
data cable already installed in your computer
(DO NOT swap connectors).
The OPTIONAL data cable that came with the
CD-Writer Plus is only used if there is no spare
connector for the CD-Writer Plus on your
cable or your cable is not long enough.

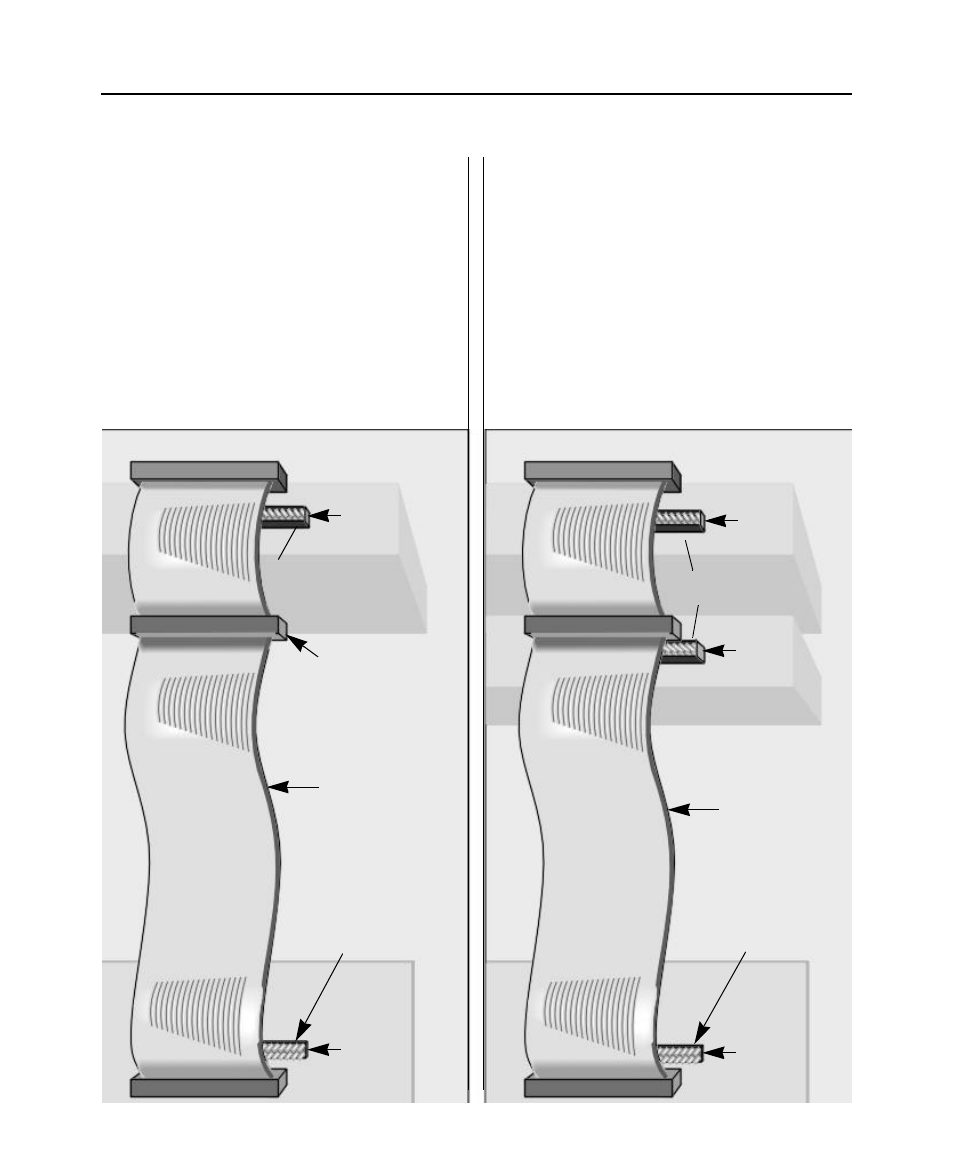

CD-Writer Plus
CD-Writer Plus
drive (on end connector)
drive (either location
not in use)
PIN-1
PIN-1
PIN-1
PIN-1
Drive
Drive
PIN-1
Drive
Unused connector
Colored
stripe aligned
with each
Colored
stripe aligned
with each
Follow the
data cable
already
attached to the
other IDE
device in your
computer to
locate the IDE
controller.
IDE controller
located inside
your computer
IDE controller
located inside
your computer
Motherboard
Motherboard
