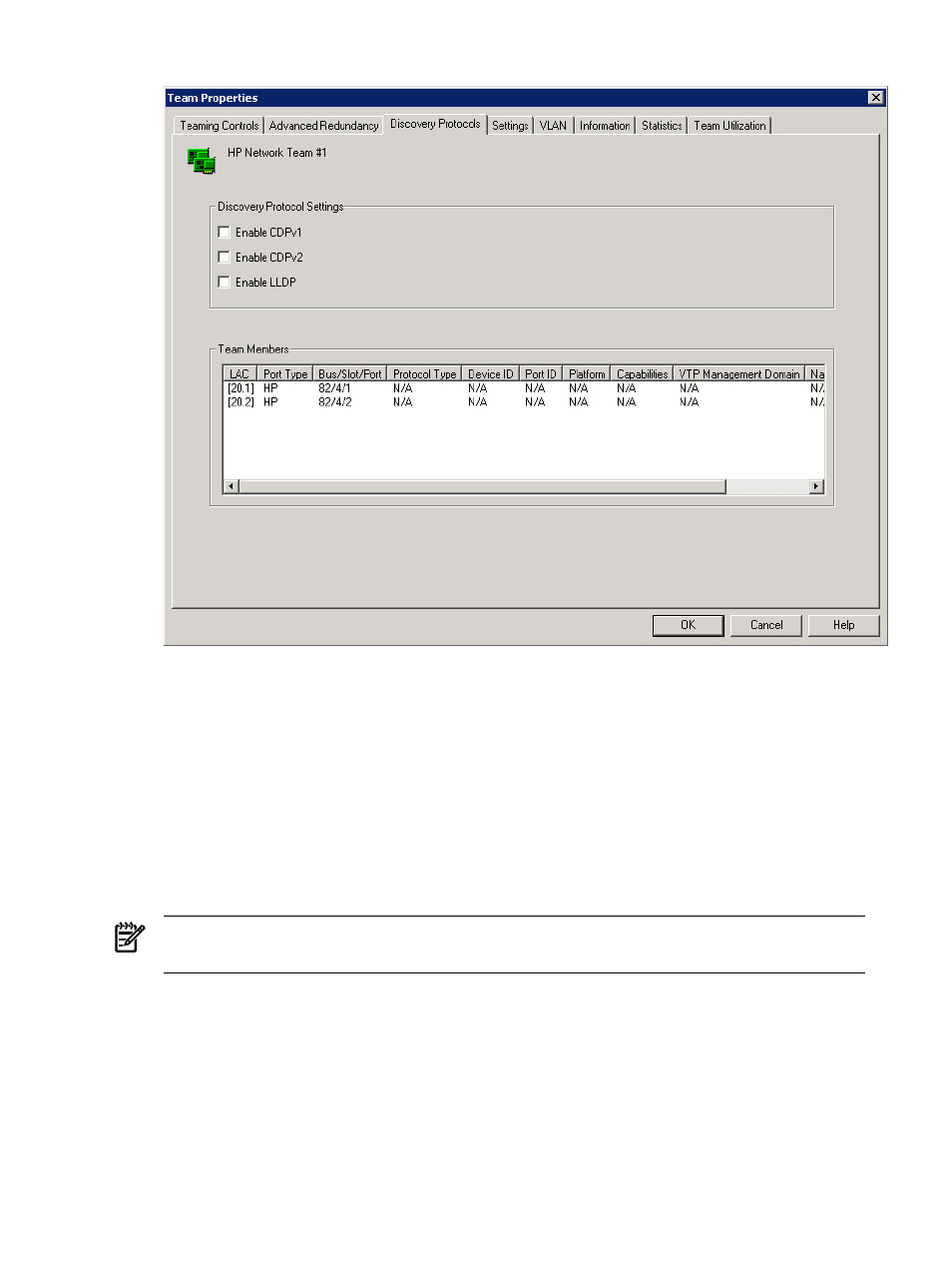

Figure 4-1 Team Discovery Protocols tab
4.
In the Discovery Protocol Settings group select Enable CDPv1, Enable CDPv2, or Enable
LLDP
to set the CDP version or LLDP for which to listen.
5.
Click OK to accept the settings and return to the NCU main window.
6.
Click OK on the NCU main window to apply the settings.
Team Members are listed in order by Group ID and then by Team Member ID. Information about
team members includes:
•
LAC — The name of the local area connection.
•
Port Type — NC model number of the port.
•
Bus/Slot/Port — The bus, slot, and port location of the team member. A port location of 1
is not reported and is left blank.
NOTE:
The Team Members Bus/Slot/Port category changes to Bus/IO Bay/Port for HP
Blade servers, like the BL860c.
•
Protocol Type — CDPv1, CDPv2, or LLDP
•
Device ID — The device name.
•
Port ID — The port on which the CDP or LLDP packet is sent.
•
Platform — The hardware platform name of the device.
•
Capabilities — The type of device. Device types include:
— Unknown
— Router
— Transparent bridge
— Source-routing bridge
