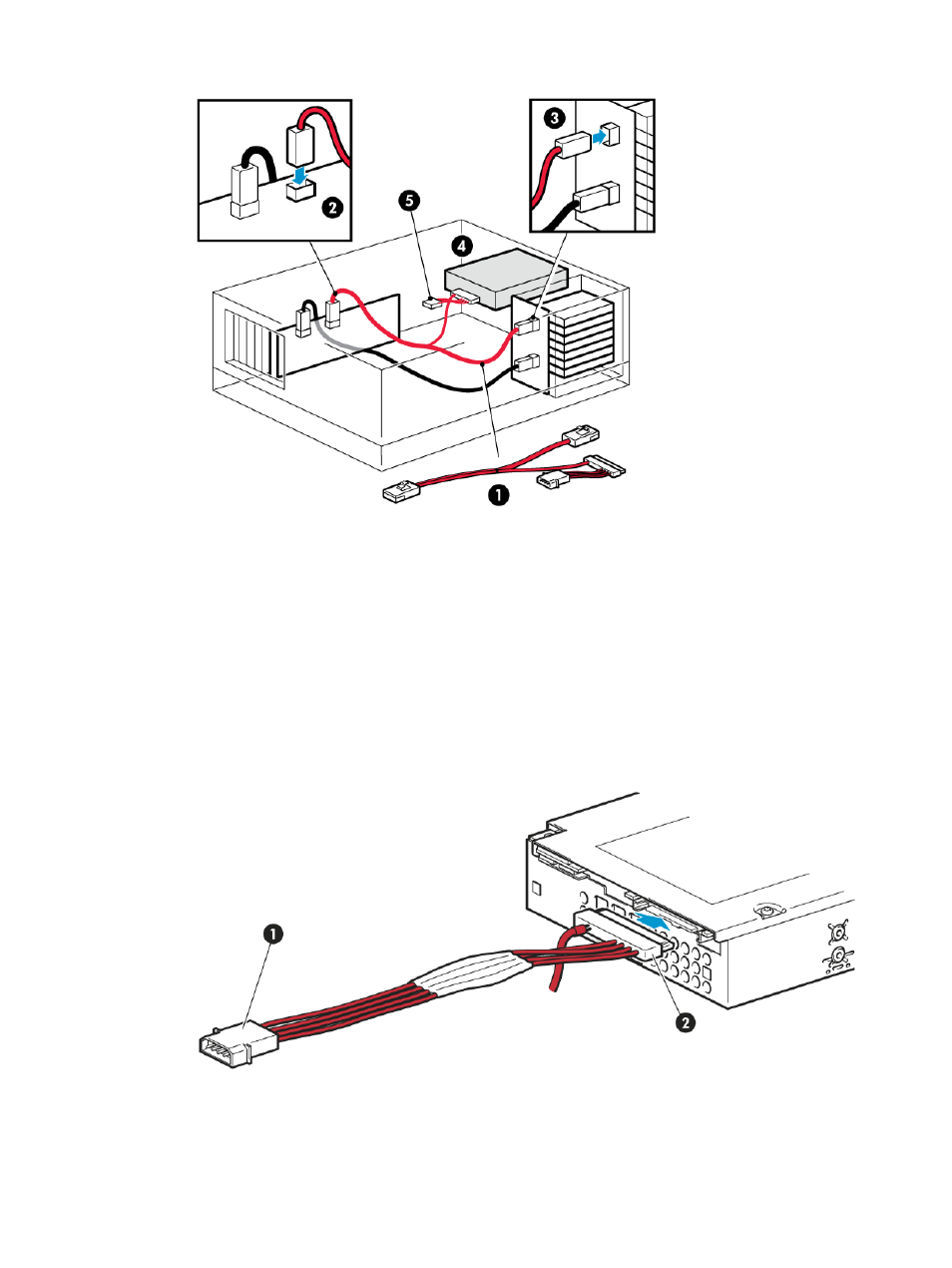

Figure 21 Cable routing with replacement SAS cable
Connect replacement SAS cable to disk bay 3. Replacement SAS cable 1.
SAS connector to tape drive 4. Connect replacement SAS cable to host SAS
HBA 2.
Power connector to server ( LTO–6 Ultrium 6250 and LTO-5 Ultrium 3000 only) 5.
5. Attach the SAS cable to the SAS connector on the tape drive.
LTO–6 Ultrium 6250 and LTO-5 Ultrium 3000 tape drives: Connect a spare power cable from
the server's internal power supply to the power connector on the SAS data cable.
Figure 22 Connecting cables to the LTO–6 Ultrium 6250 and LTO-5 Ultrium 3000 tape drive
SAS connector to tape drive 2. Power connector 1.
All other LTO Ultrium tape drives: Connect a spare power cord from the server's internal power
supply to the power connector on the tape drive.
Connect SAS and power cords 25
