The following illustration is a virtual representation of each element within the Mbox Extreme
Environment. (More detailed descriptions of each element are provided on subsequent pages.)

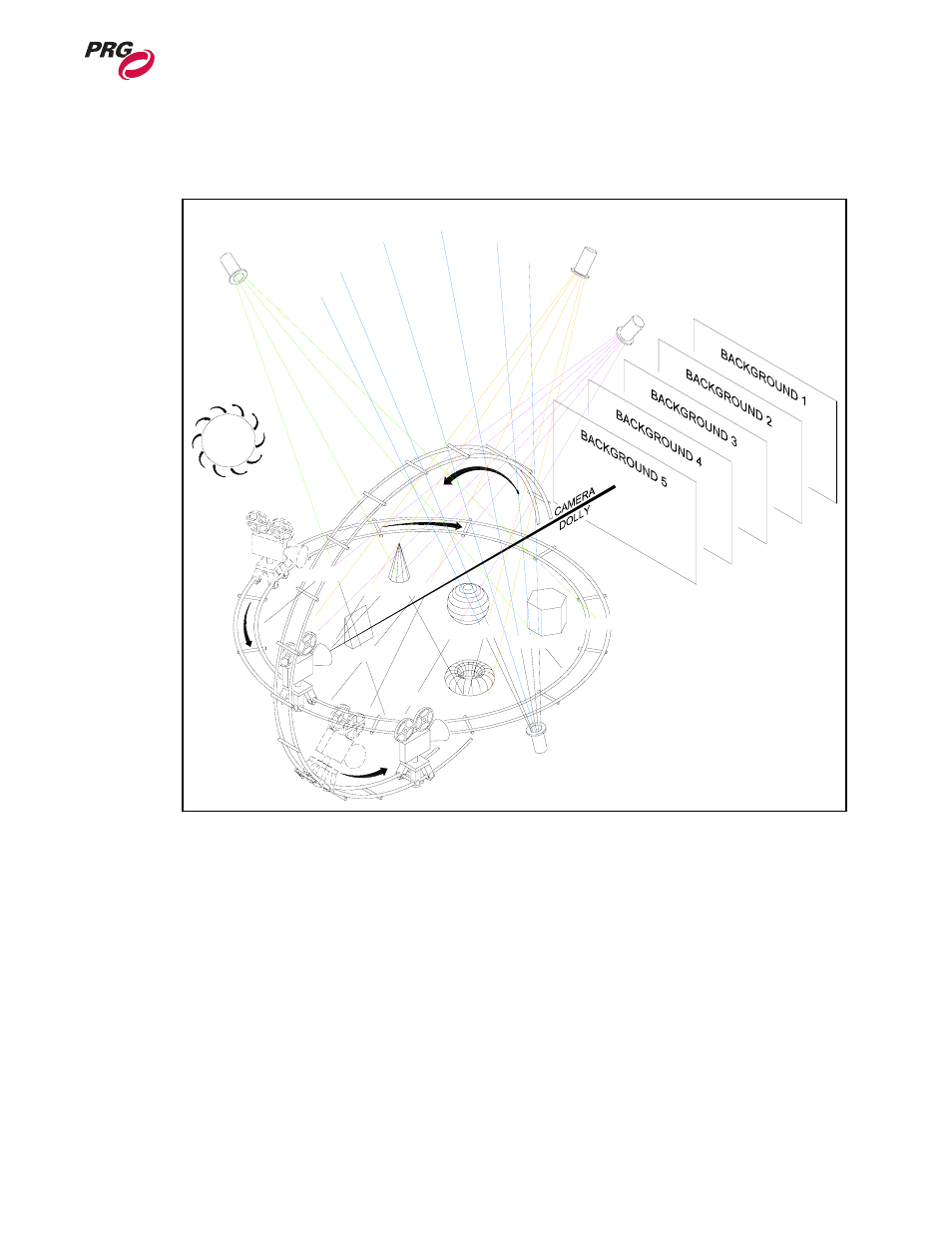

Figure 3-1: Mbox Extreme 3D Environment Overview
3D OBJECT 1
3D OBJECT 2
3D OBJECT 3
3D OBJECT 5
3D OBJECT 4
3D OBJECT
3D OBJECT
3D OBJECT
OBJECT
3D
ORBIT
Y
SPOT LIGHT
DIRECTIONAL
ORBIT
X
AMBIENT
LIGHT
CAMERA
DIRECTIONAL
SPOT LIGHT
SPOT LIGHT
DIRECTIONAL
SPOT LIGHT
DIRECTIONAL
