I NSTALLATION : S ETUP
0 2. 9 8 0 0. 0 0 01 13
2
Step 4. At front of case, connect local monitor data cable to VGA connector ( Figure 2-3 ).
Step 5. Connect local monitor power cable to power outlet on front of case or to local AC power
service.
Step 6. Connect case power cable to front of case, then to local AC power service.

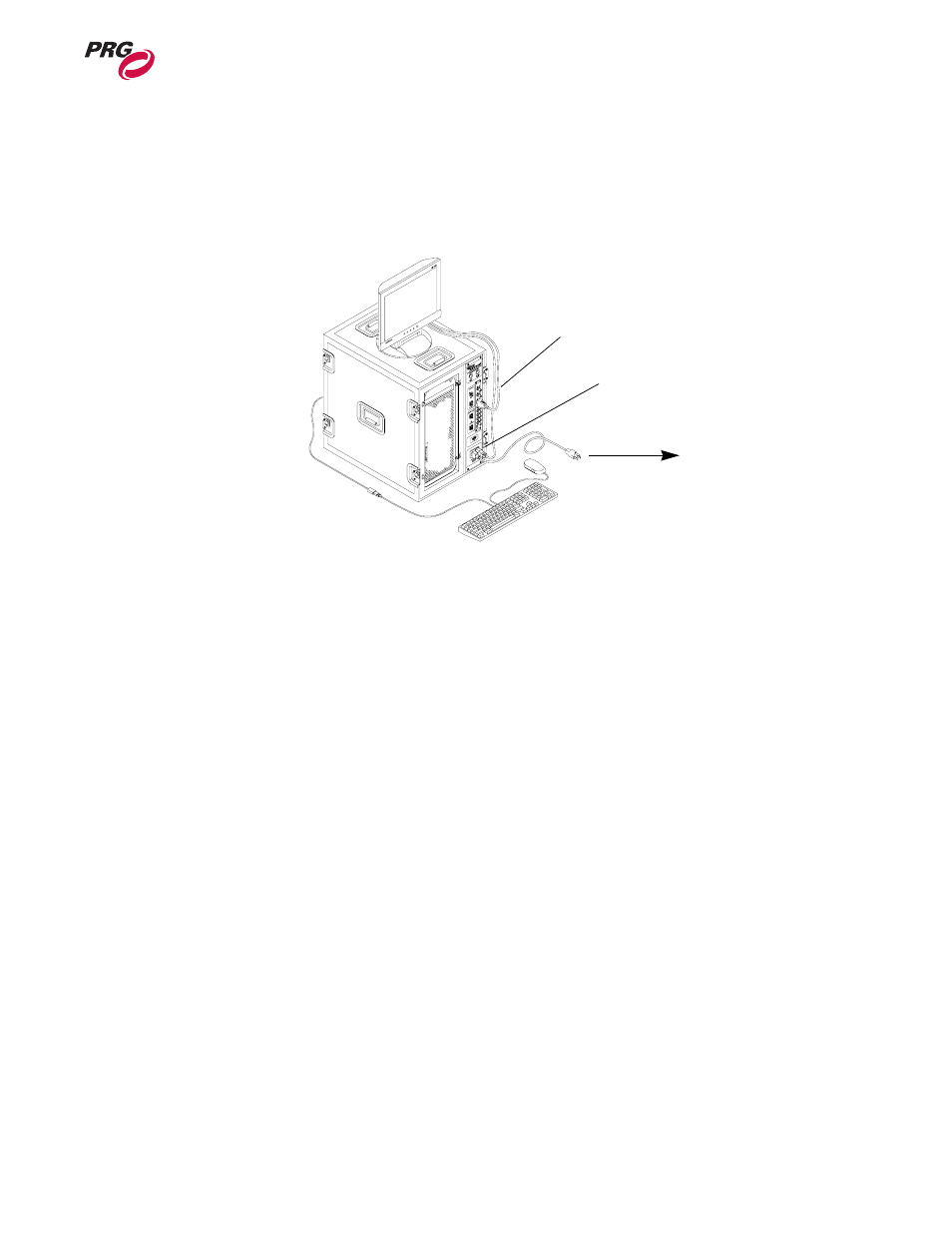

Figure 2-3: Connecting Monitor Power and Data Cabling
Connect monitor
AC cable
To Local AC Power Service
Connect monitor
data cable
