Art-Net Input Configuration:
Network Switch and Multiple Media Servers
In the following configuration, Art-Net control signal is distributed from one control console to one
network switch. The network switch then distributes the control signal to all Mbox Extreme Media
Servers.

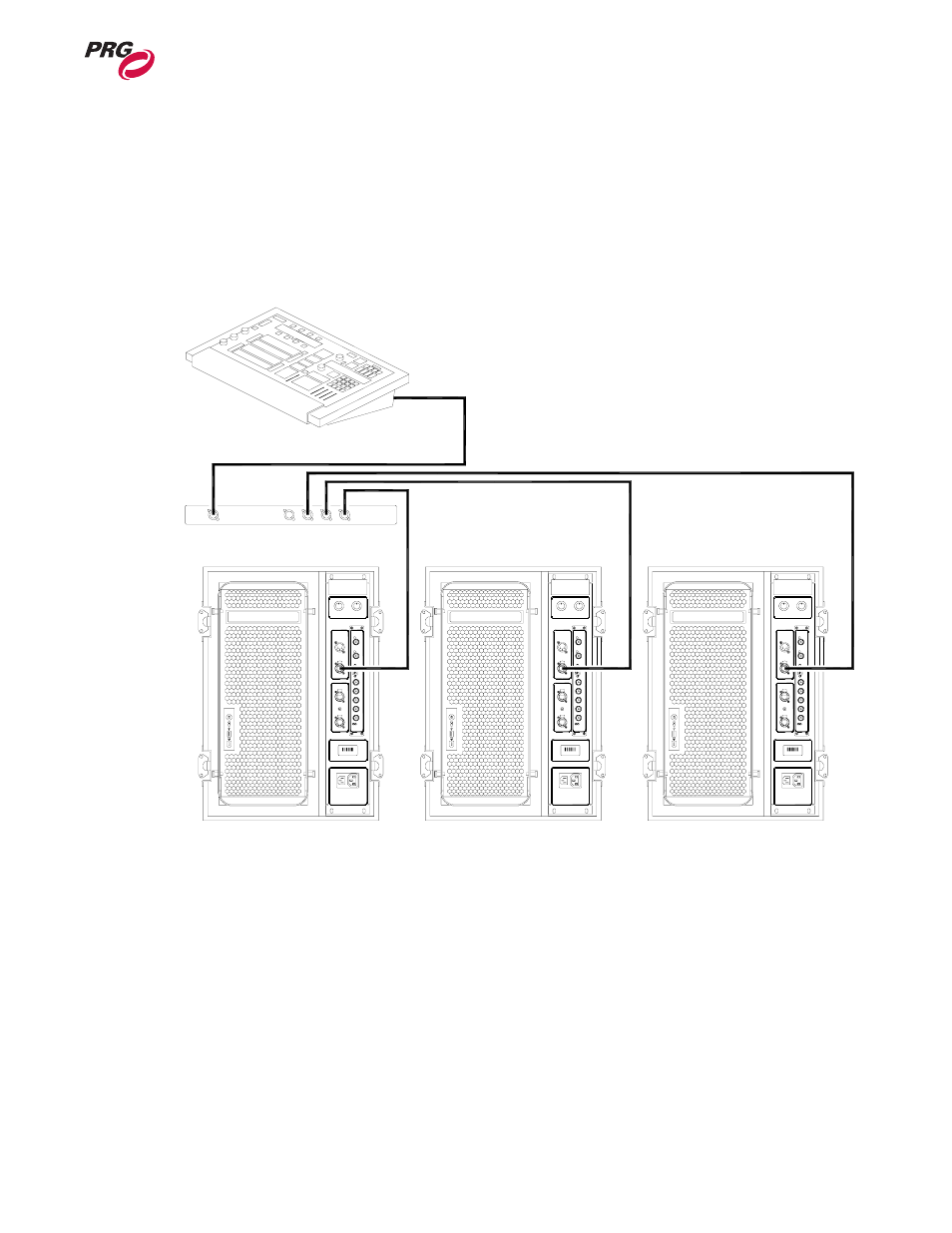

Figure 1-4: Network Switch and Multiple Media Servers
Art-Net
DMX CONSOLE
NETWORK SWITCH
MBOX EXTREME
IN
MBOX EXTREME
MBOX EXTREME
IN
IN
