M BOX E XTREME ™ M EDIA S ERVER U SER M ANUAL
6 02.9800.0001
Components
Mbox Extreme Case Assembly
The following illustrations show the case components.

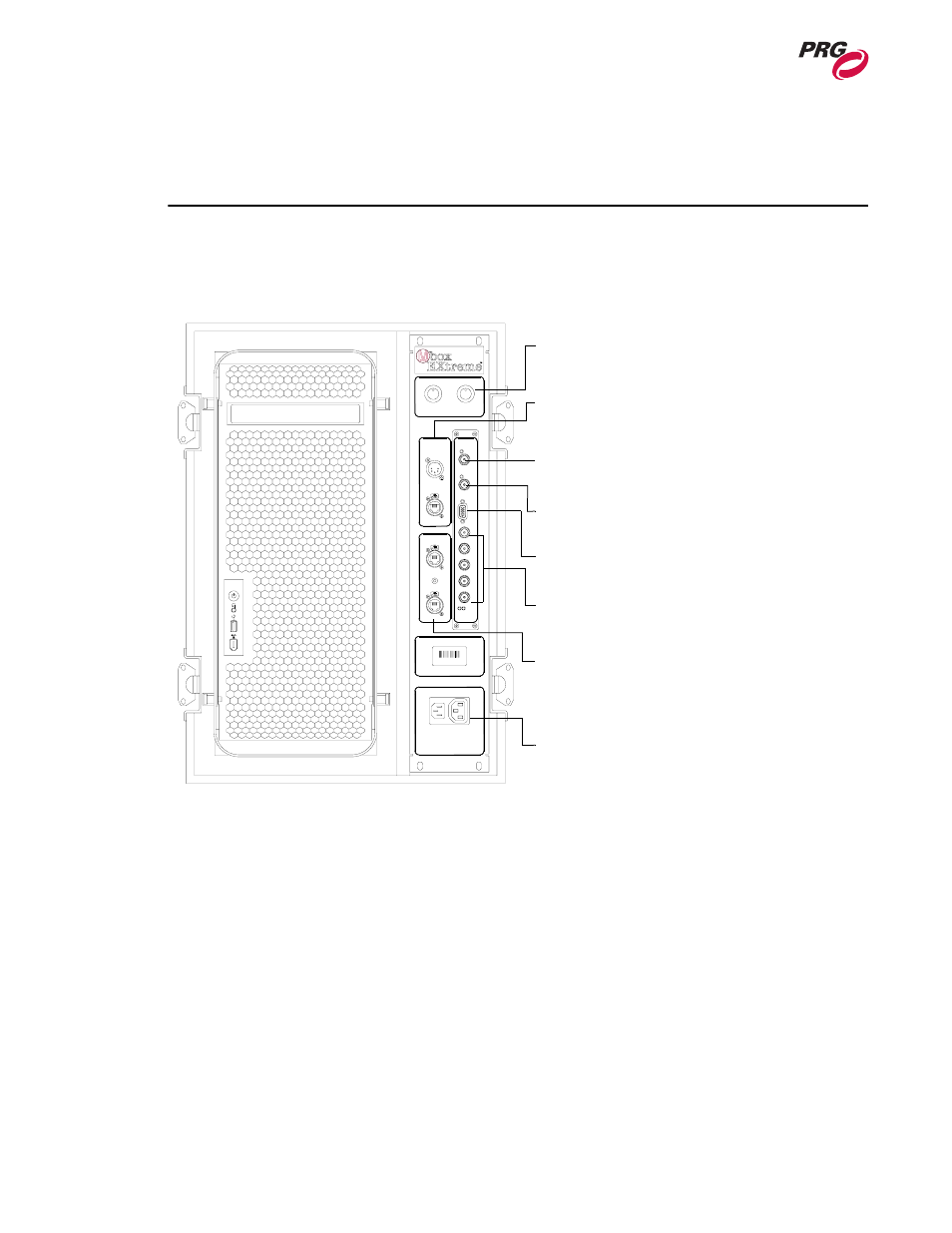

Figure 1-1: Case Components / Front View
FRONT VIEW
MONITOR
DIMMER CONTROL
OUTPUT FULL DBO OUTPUT MAIN
DATA I/O
ETHERNET HUB
ETHERNET
DMX
SD
I O
U T P U T
GE
N
LOC
K
MO
N
IT
O R
R
100-240 VAC
AC
T
IVE
PO
W
E R
HUB POWER
7257730
PRG
PRG
50-60 HZ
8 AMPS
G
B
H
V
Data I/O- used to input either DMX512 or Art-Net data
from the control console.
Genlock Output - used to synchronize additional
Mbox Extreme Media Servers (not yet implemented).
SDI Output - used to output video data in SDI
format.
BNC Output- BNC (RGBHV) outputs
data to video device.
Ethernet Hub- contains an Ethernet switch
with RJ-45 connections for linking Mbox
Extreme Server with the local network.
Power Input - used to receive power from
the wall outlet and provides an outlet to
power the local monitor.
Dimmer Control - used to shut off either the main
output or mimic main output on the local monitor.
Monitor Output - used to output data to the local
monitor.
