Acer 5320 User Manual
Page 97
Chapter 3
87

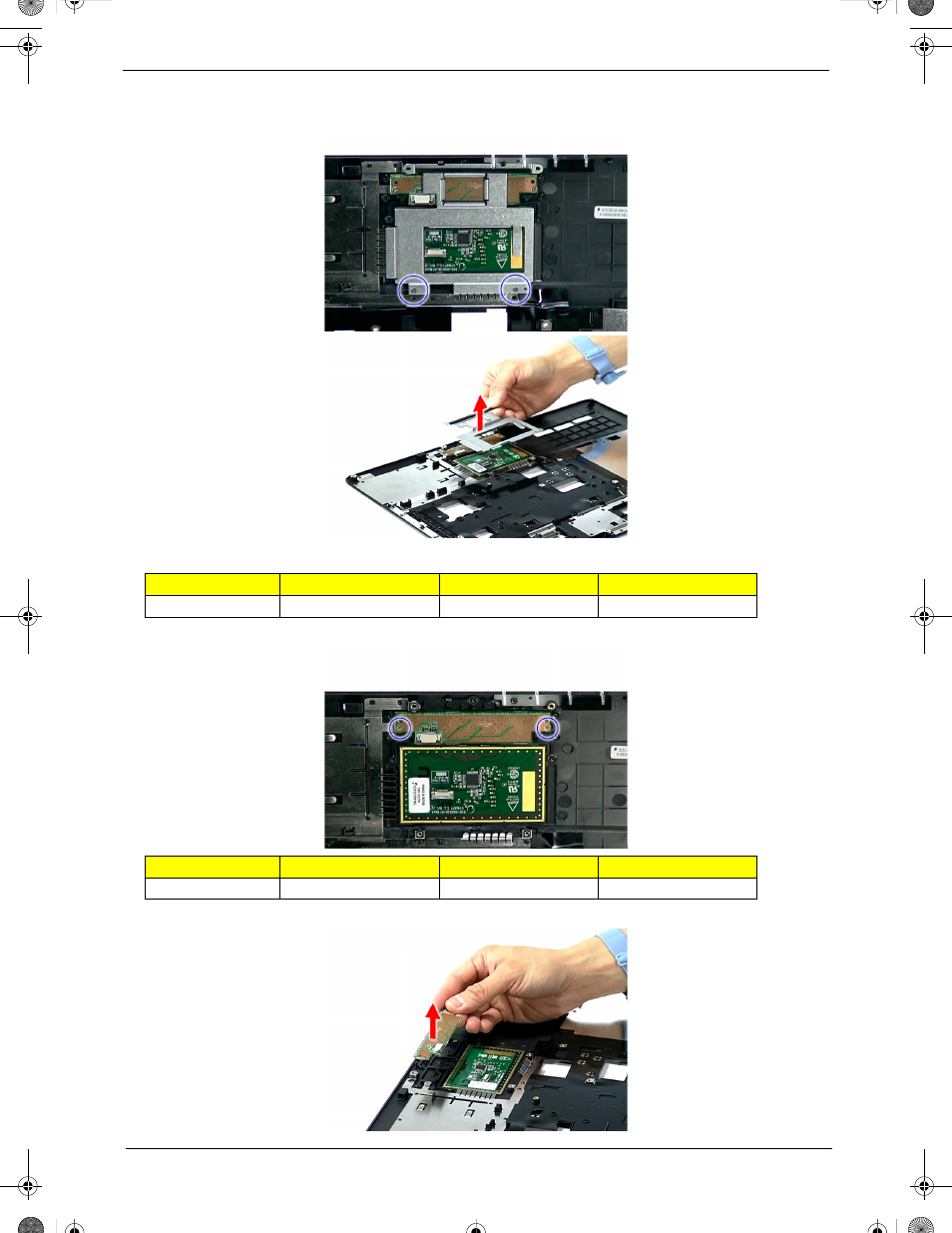

20. Remove the two screws (F) on the touch pad bracket and remove the touch pad bracket from the upper
case.
21. Remove the two screws (F) from the fingerprint board.
22. Remove the fingerprint board from the upper case.
Step
Size (Quantity)
Color
Torque
1~2
M2 x L3 (2)
Silver
1.6 kgf-cm
Step
Size (Quantity)
Color
Torque
1~2
M2 x L3 (2)
Silver
1.6 kgf-cm
