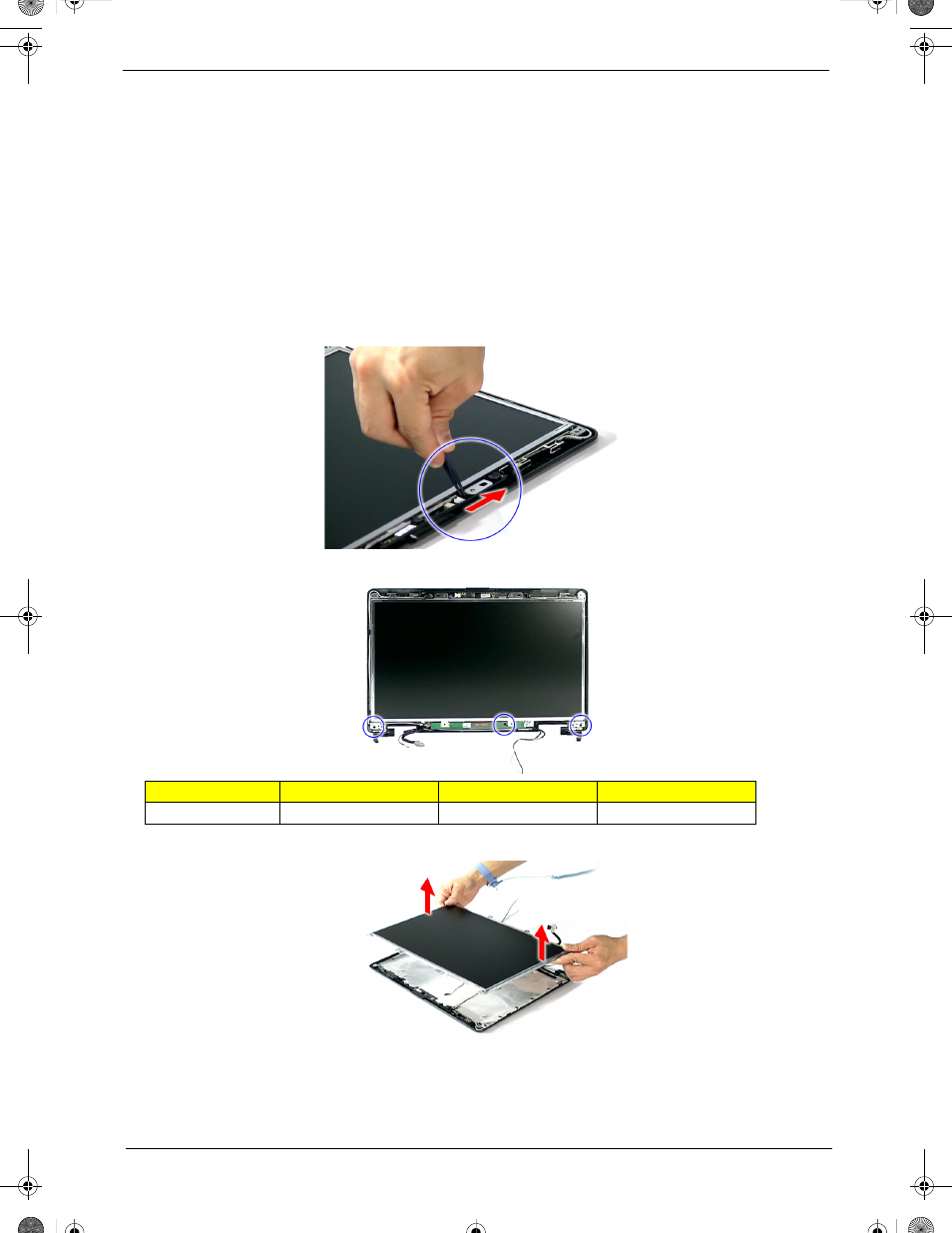

Removing the LCD module with the Brackets
1. See “Removing the Battery Pack” on page 60.
2. See “Removing the Lower Cover” on page 62.
3. See “Removing the DIMM” on page 63.
4. See “Removing the WLAN Board Modules” on page 64.
5. See “Removing the Middle Cover and the Power Board” on page 74.
6. See “Removing the Keyboard” on page 76.
7. See “Removing the LCD Module” on page 78.
8. See “Removing the LCD Bezel” on page 94.
9. Disconnect the cable from the camera board.
10. Remove the three screws (E) securing the LCD module and the Inverter panel.
11. Detach the LCD with the brackets from the back cover.
Step Size (Quantity) Color Torque
1~3 M2.5 x L5 (3) Silver 2.5 kgf-cm
