Removing the Inverter Board and FPC Cable
1. See “Removing the Battery Pack” on page 60.
2. See “Removing the Lower Cover” on page 62.
3. See “Removing the DIMM” on page 63.
4. See “Removing the WLAN Board Modules” on page 64.
5. See “Removing the Middle Cover and the Power Board” on page 74.
6. See “Removing the Keyboard” on page 76.
7. See “Removing the LCD Module” on page 78.
8. See “Removing the LCD Bezel” on page 94.
9. See “Removing the LCD module with the Brackets” on page 95.

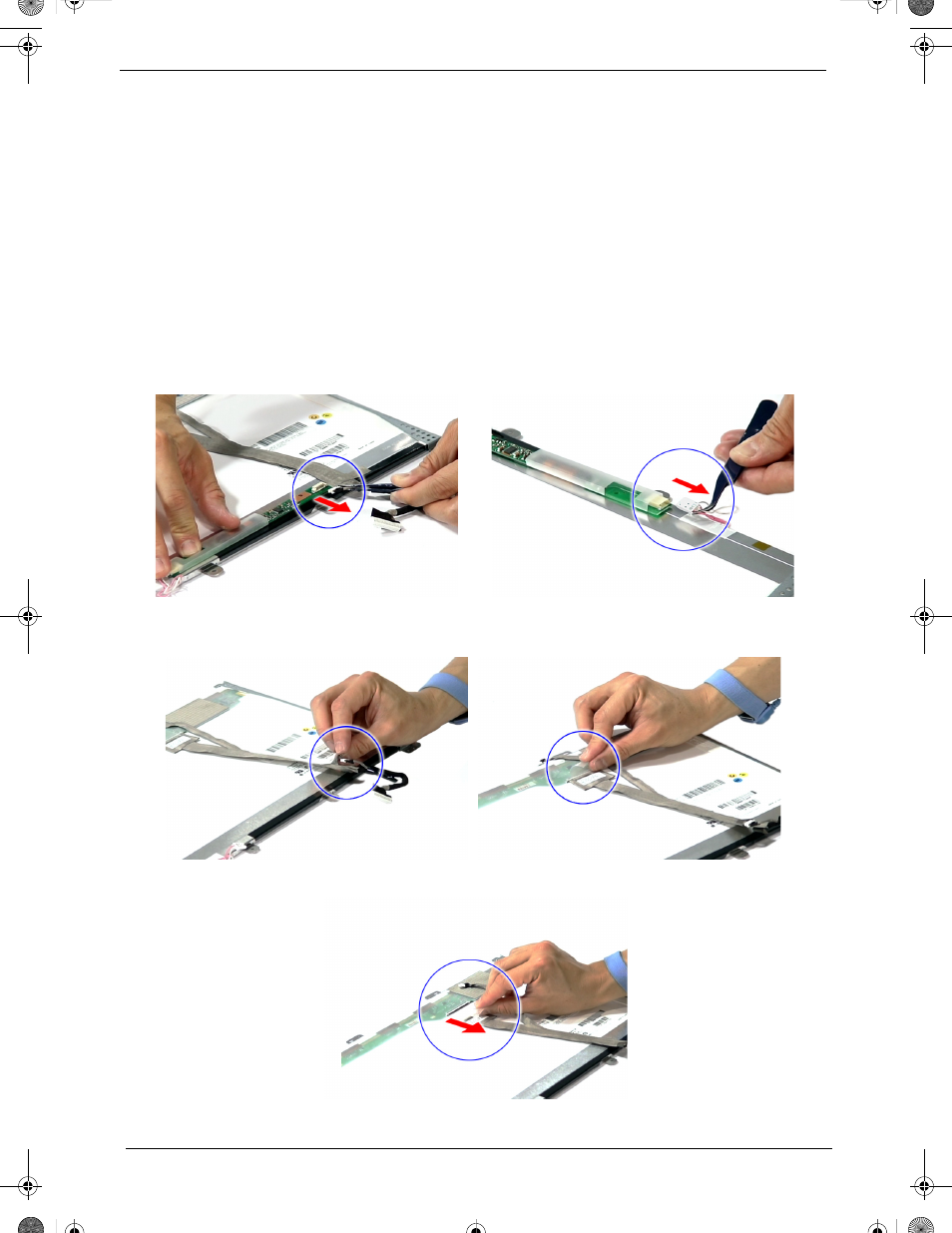

10. Disconnect the inverter board cable from its connector, then disconnect the 2P cable on the inverter board
to remove it.
11. Detach the acetic tapes holding the FPC cable from the LCD panel and detach the acetic tape securing
the FPC connector.
12. Disconnect the FPC cable from the LCD panel.
