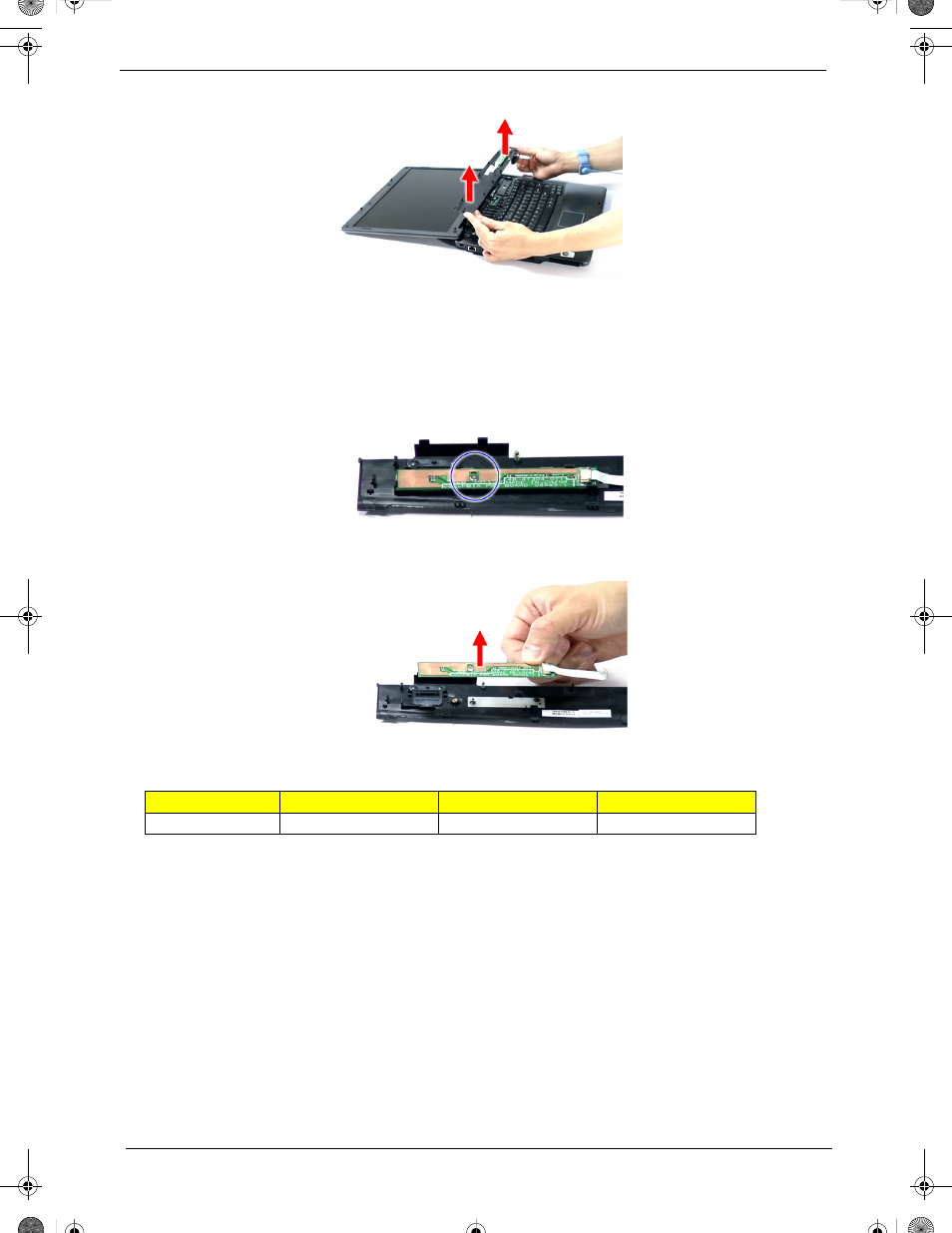

Removing the keyboard – Acer 5320 User Manual
Page 86
76
Chapter 3
6.
Remove the Middle Cover together with the Power board.
7.
Remove the one screw (F) securing the Power board to the middle cover, and remove the Power board
from the middle cover.
Removing the Keyboard
1.
See “Removing the Battery Pack” on page 60..
2.
See “Removing the Middle Cover and the Power Board” on page 74.
Step
Size (Quantity)
Color
Torque
1
M2 x L3 (1)
Silver
1.6 kgf-cm
