Top view, Jumper and connector locations, Chapter 5 – Acer 5320 User Manual
Page 131
Chapter 5
121

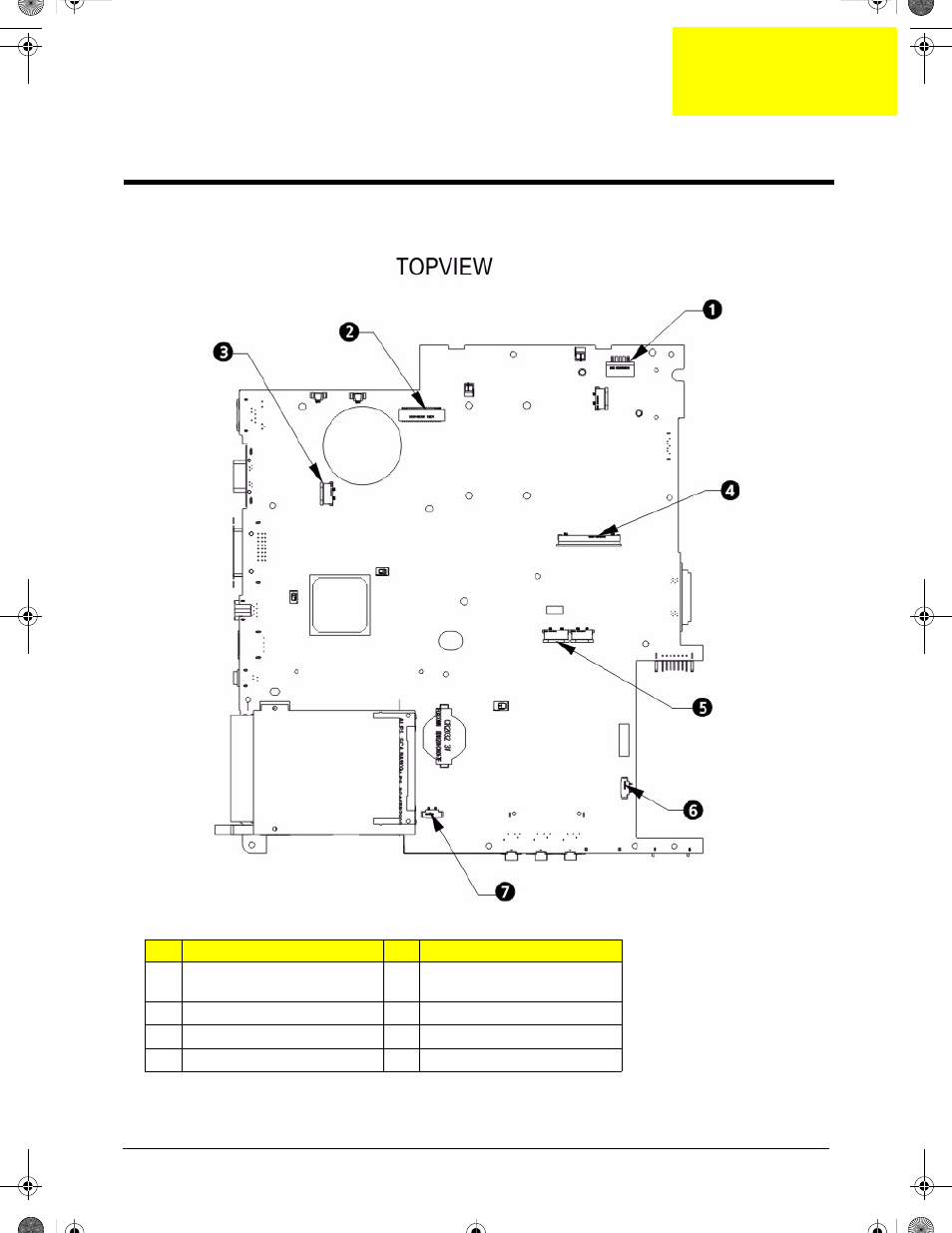

Top View
No.
Description
No.
Description
1
Power Cable Connector
5
Fingerprint/Touchpad
Connector
2
LCD Cable Connector
6
Bluetooth Connector
3
Touchpad Board Connector
7
Speaker Connector
4
Keyboard Connector
Jumper and Connector Locations
Chapter 5
SG_Columbia.book Page 121 Thursday, April 19, 2007 10:49 AM
