Acer 5320 User Manual
Page 82
72
Chapter 3
3.

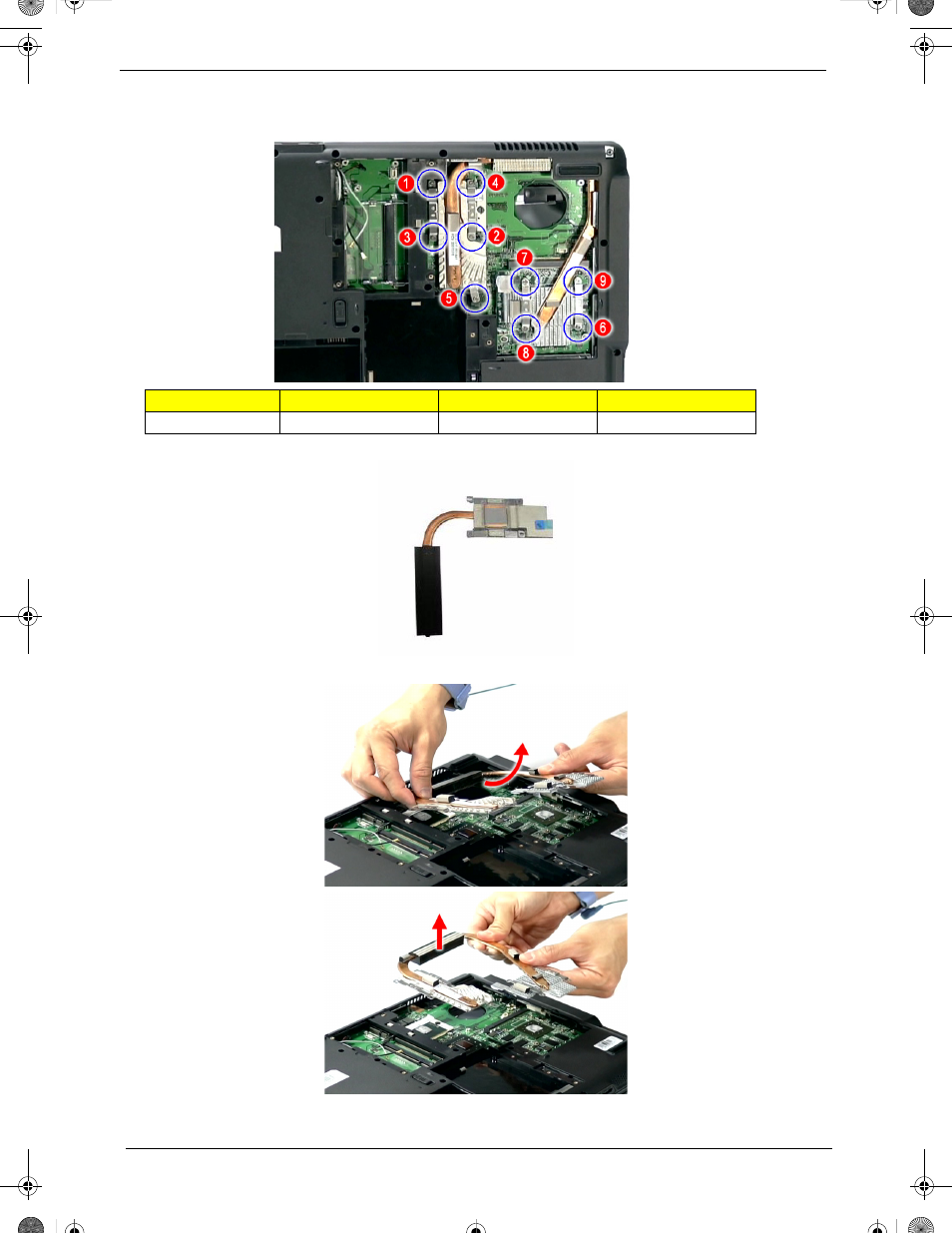

Remove the nine screws (C) securing the CPU and VGA heatsink module in place.
NOTE: There are only five (5) screws for the UMA module.
4.
Slide out and remove the heatsink module.
Step
Size (Quantity)
Color
Torque
1~9
M2 x L4 (9)
Silver
3.0 kgf-cm
SG_Columbia.book Page 72 Thursday, April 19, 2007 10:49 AM
