EXTERNAL EQ
UIPMENT SETUP
28

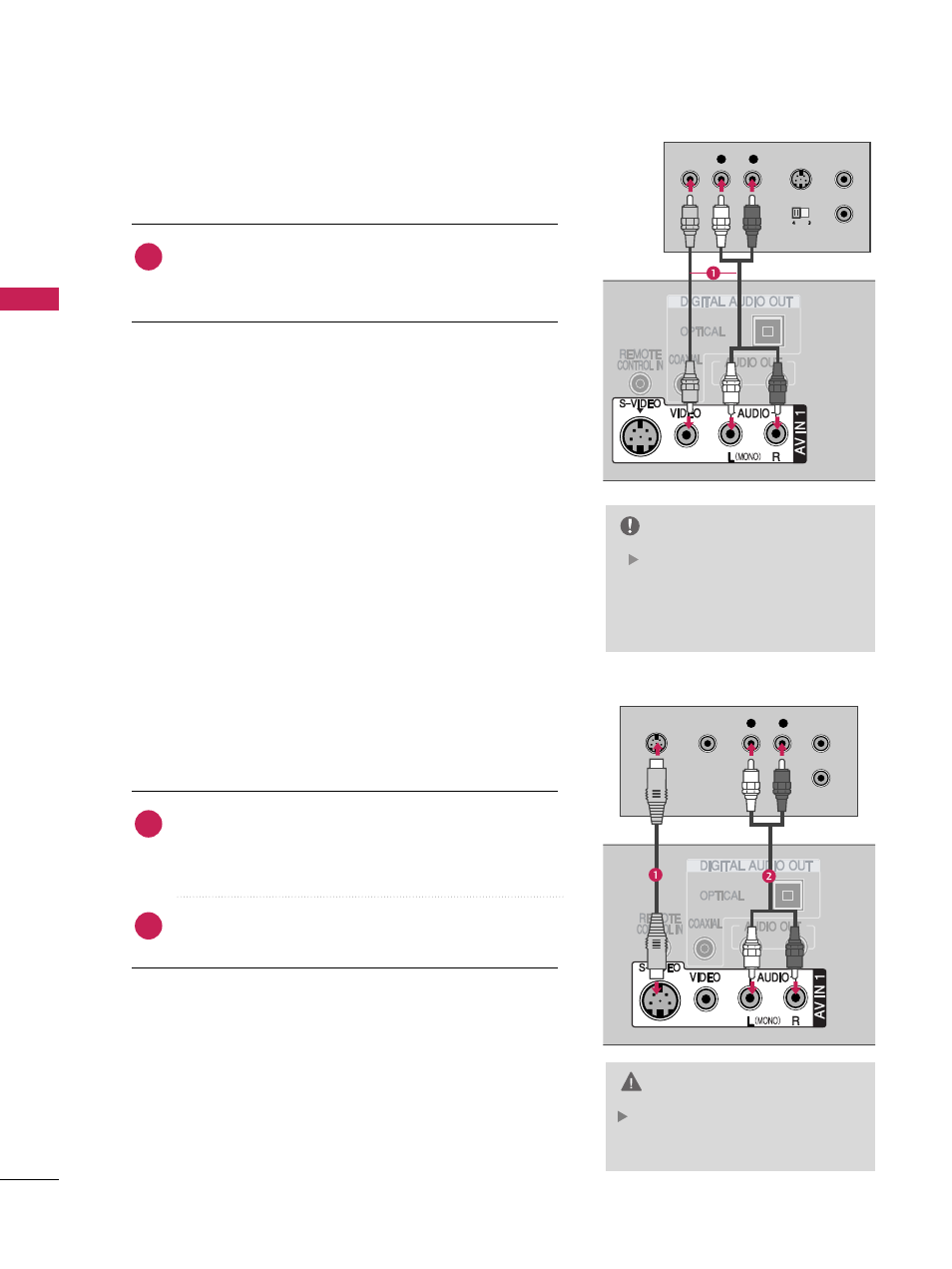

EXTERNAL EQUIPMENT SETUP
When connecting with a RCA cable
In the event that you connect both
Video and the S-Video cables, only
the S-Video will work.
CAUTION
L R S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
L R S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
Connect the AUDIO/VIDEO jacks between TV and
VCR. Match the jack colors(Video = yellow, Audio Left =
white,and Audio Right = red)
1. How to connect
2. How to use
■ Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
■ Select A V 1 input source with using the INPUT button on
the remote control.
■ If connected to AV IN 2 , select A V 2 input source.
If you have a mono VCR, con-
nect the audio cable from the
VCR to the AUDIO
L/MONO jack of the set.
NOTE
When connecting with an S-Video
Connect the S-VIDEO output of the VCR to the S -
V I D E O input on the set. The picture quality is
improved; compared to normal composite (RCA cable)
input.
Connect the audio outputs of the VCR to the AUDIO
input jacks on the set.
1. How to connect
2. How to use
■ Insert a video tape into the VCR and press PLAY on the VCR.
(Refer to the VCR owner’s manual.)
■ Select AV1 input source with using the INPUT button on the
remote control.
■ If connected to AV IN 2 , select AV2 input source.
1
2
1
