EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you
do receive digital signals from a digital set-top box or other digital external device, refer to the figure as
shown below.
This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents.
Y L R P B P R
AUDIO

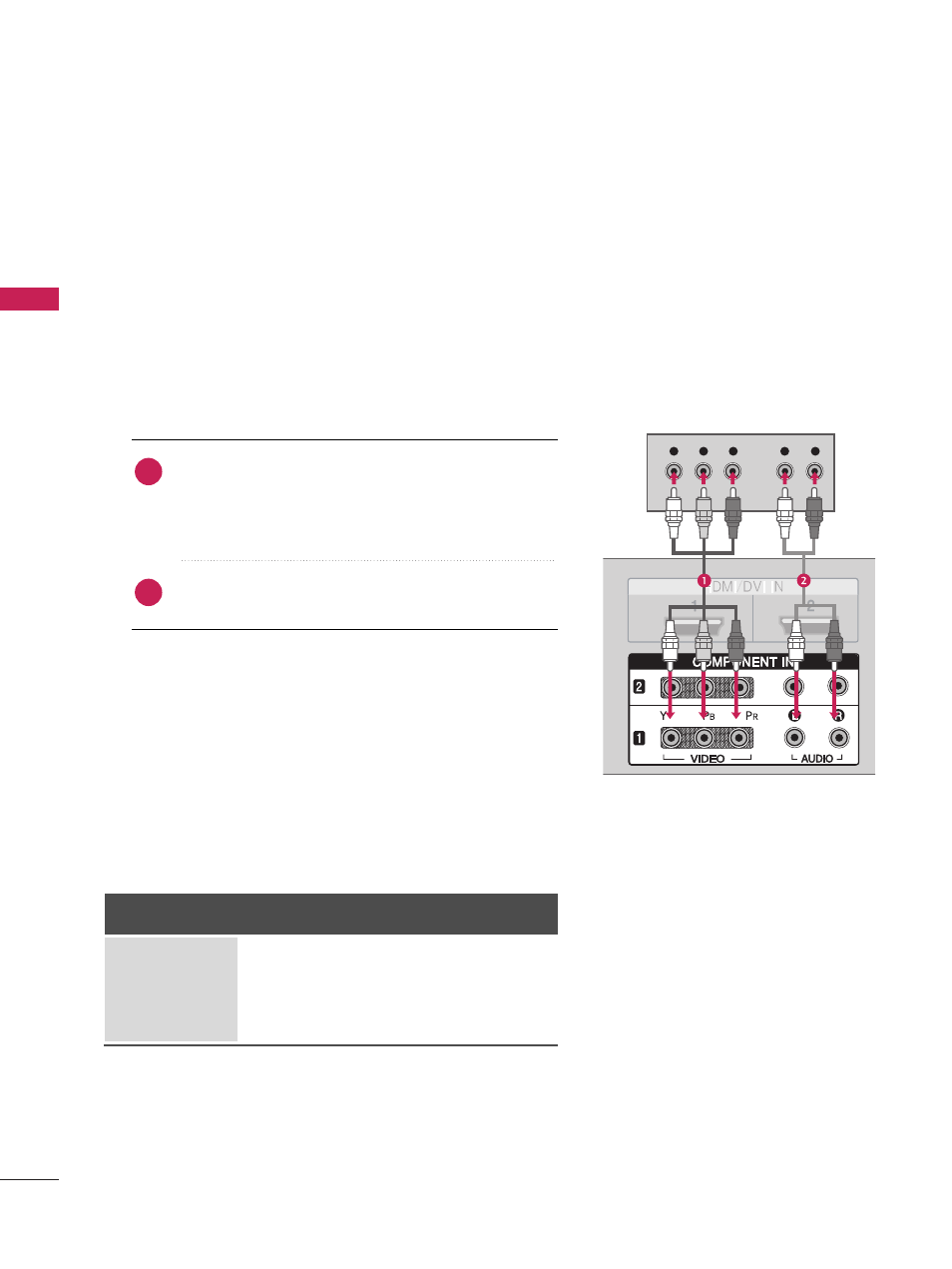

When connecting Component cable
1. How to connect
Connect the video outputs (Y, P B , P R
) of the digital set
top box to the COMPONENT IN VIDEO 1 jacks on
the set. Match the jack colors
(Y = green, P
B = blue, and P R = red).
Connect the audio output of the digital set-top box to
the COMPONENT IN AUDIO 1 jacks on the set.
2. How to use
■ Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
■ Select COMPONENT 1 input source with using the INPUT
button on the remote control.
■ If connected to COMPONENT IN 2 input, select COMPO-
NENT 2 input source.
Signal
480i
480p
720p
1080i
Component 1/2
Yes
Yes
Yes
Yes
RGB-DTV,
HDMI1/DVI, HDMI2
No
Yes
Yes
Yes
