APPENDIX
144
APPENDIX
Press the MENU button and then use D or E button
to select the SETUP menu.
Press the G button and then use D or E button to
select SET ID.
Press the G button and then use D or E button to
adjust SET ID to choose the desired TV ID number.
The adjustment range of SET ID is 1~99.
Press EXIT button to return to TV viewing or press
MENU button to return to the previous menu.
Use this function to specify a TV ID number.
Refer to ‘Real Data Mapping 1’.
p.147
Set ID
DAY -
DAY +
SIMPL
INK
Communication Parameters
■ Baud rate : 9600 bps (UART)
■ Data length : 8 bits
■ Parity : None
■ Stop bit : 1 bit
■ Communication code : ASCII code
■ Use a crossed (reverse) cable.

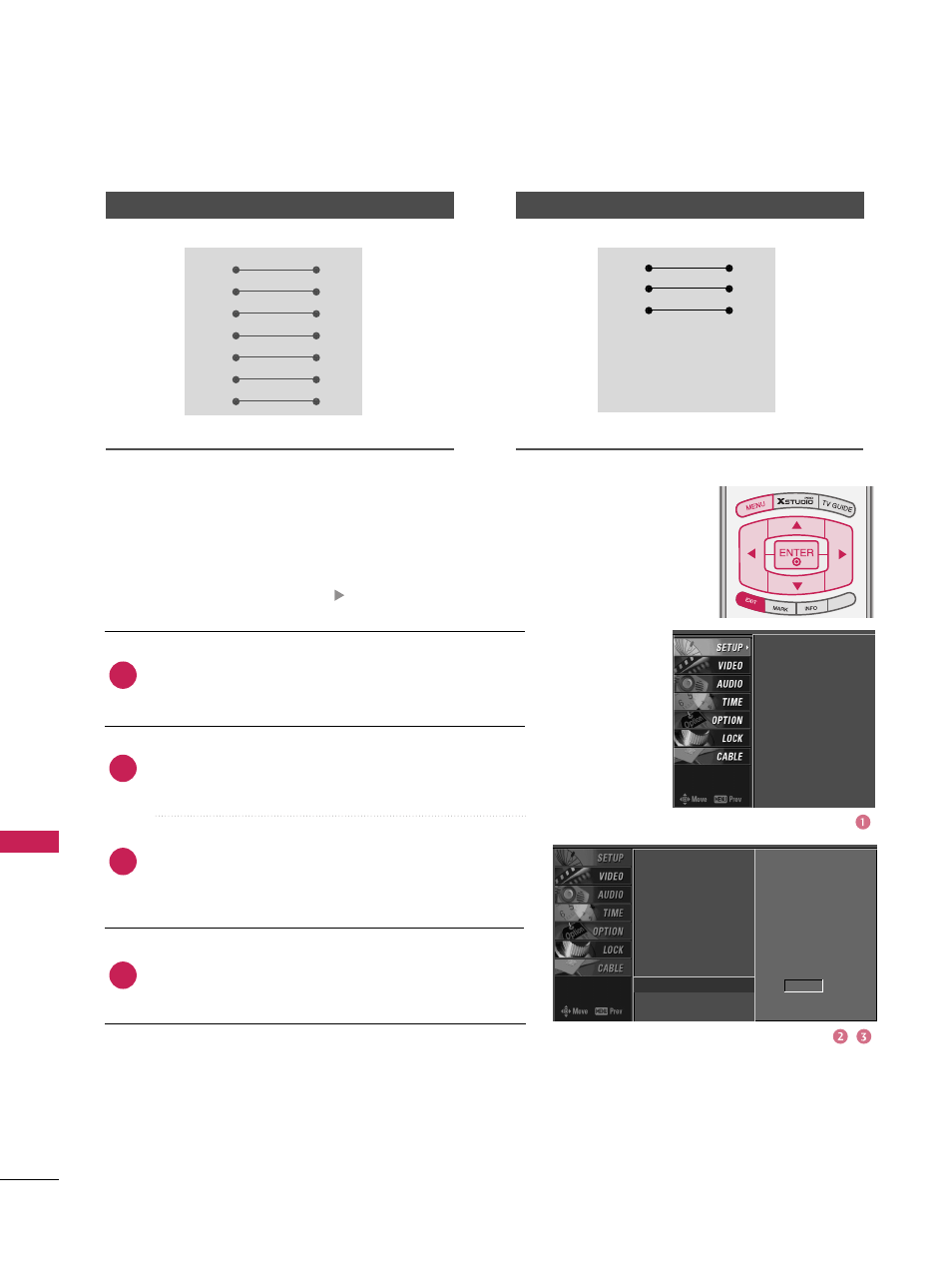

RS-232C Configurations
7-Wire Configurations (Standard RS-232C cable)
PC PDP
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
3-Wire Configurations(Not standard)
PC PDP
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
2
3
4
1
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID G
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
1
