Page 26: External eq uipment setup, Component input ports
EXTERNAL EQ
UIPMENT SETUP
25
DVD SETUP
Component Input ports

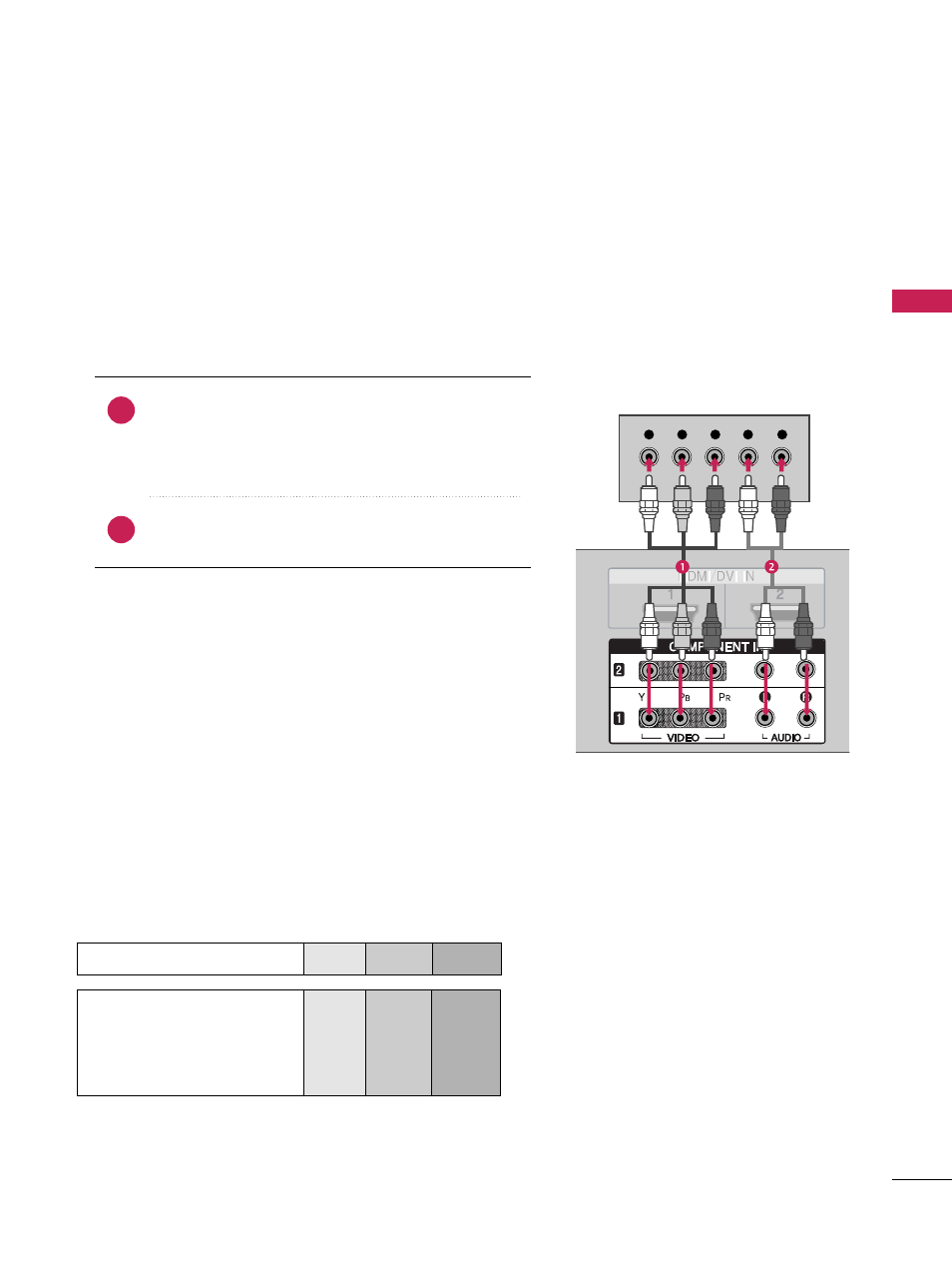

To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
Y
P
B
P
R
Video output ports
on DVD player
Y
Y
Y
Y
P
B
Pb
B-Y
Cb
P
R
Pr
R-Y
Cr
Y
L
R
P
B
P
R
AUDIO
When connecting Component cable
Connect the video outputs (Y, P
B
, P
R
) of the DVD to
the COMPONENT IN VIDEO1 jacks on the set.
Match the jack colors
(Y = green, P
B
= blue, and P
R
= red).
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO1 jacks on the set.
1. How to connect
2. How to use
■
Turn on the DVD player, insert a DVD.
■
Select
COMPONENT 1
input source with using the
INPUT
button on the remote control.
■
If connected to
COMPONENT IN 2
input, select
COM-
PONENT 2
input source.
■
Refer to the DVD player's manual for operating instruc-
tions.
