EXTERNAL EQUIPMENT SETUP

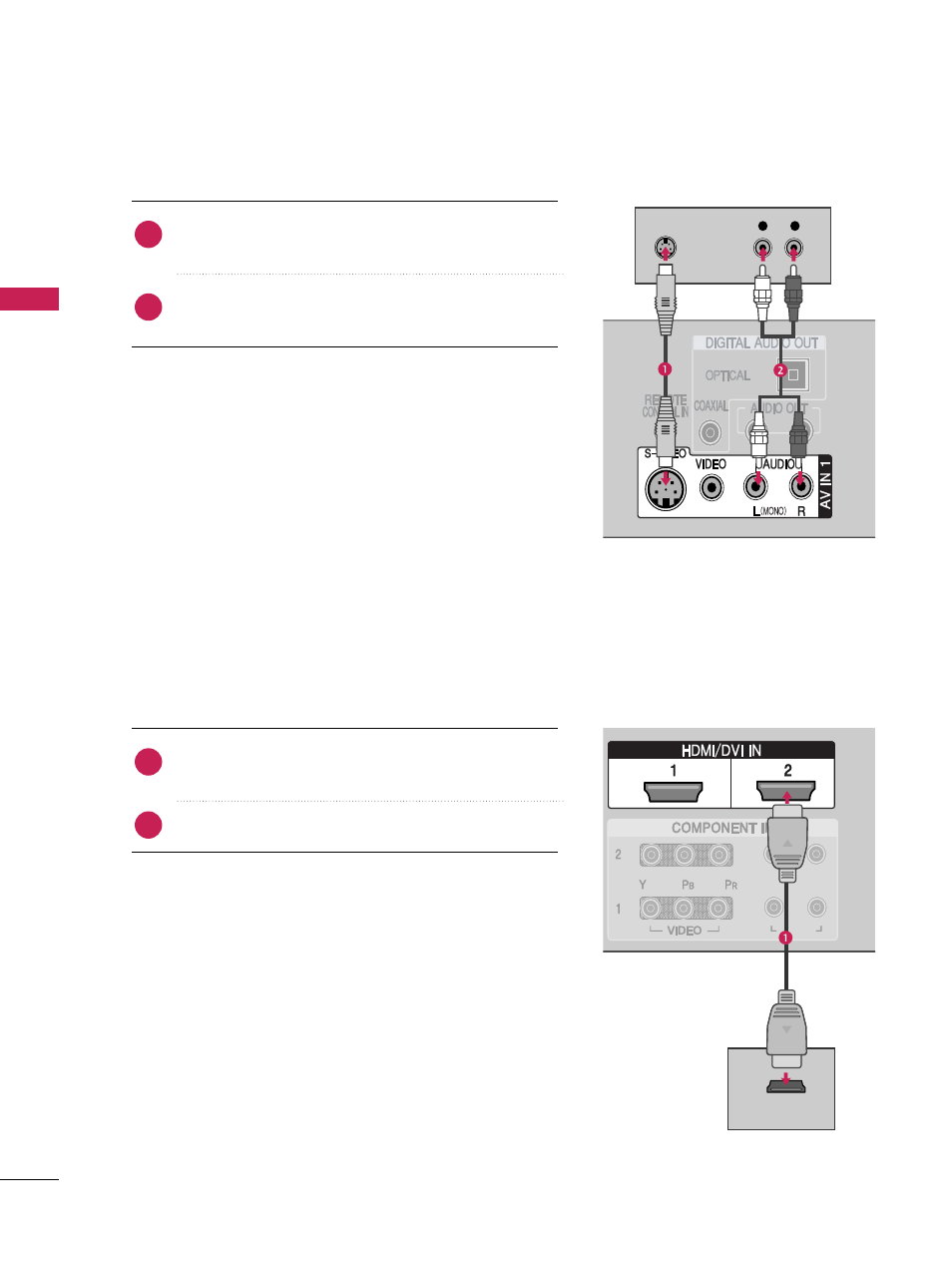

When connecting with an S-Video cable
AUDIO UDIO
L R
HDMI-DVD OUTPUT
L R S-VIDEO
AUDIO
AUDIO
Connect the S-VIDEO output of the DVD to the
S-VIDEO input on the set.
Connect the audio outputs of the DVD to the AUDIO
input jacks on the set.
1. How to connect
2. How to use
■ Turn on the DVD player, insert a DVD.
■ Select A V 1 input source with using the INPUT button on
the remote control.
■ If connected to AV IN 2 , select A V 2 input source.
■ Refer to the DVD player's manual for operating instructions.
When connecting HDMI cable
Connect the HDMI output of the DVD to the
HDMI/DVI IN1 or 2 jack on the set.
No separated audio connection is necessary.
1. How to connect
2. How to use
■ Select HDMI1/DVI or HDMI2 input source with using the
INPUT button on the remote control.
■ Refer to the DVD player's manual for operating instruc-
tions.
