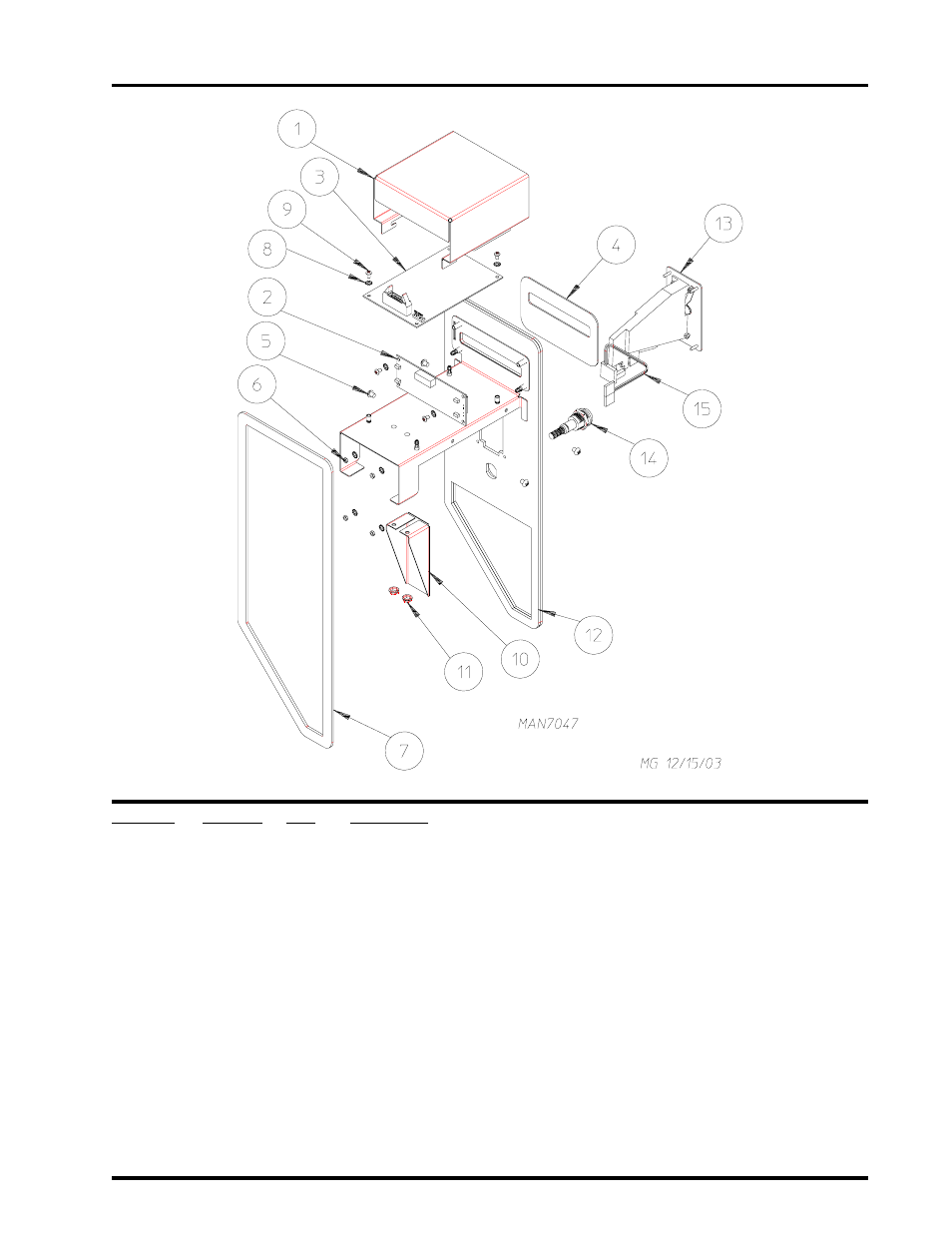

Left Coin Computer Panel Assembly
Illus. No. Part No. Qty. Description
1 354293 1 Computer Cover
2 137270 1 16 x 1 Large Character Display
3 887007 1 Phase 7 Coin Board (prior to February 1, 2004)
887011 1 Phase 7 Coin Board (as of February 1, 2004)
4 112575 1 Phase 7 Keypad
5 150201 4 #10-32 x 1/4” Phillips Pan Head Tap Screw
6 152102 4 M3 Metric Hex Nut
7 117603 1 1/8” x 9/16” Noise Suppressor Tape
8 153010 1 #6 Internal/External Star Washer
9 150005 4 #6-32 x 1/4” Phillips Round Head Machine Screw
10 354192 1 Optic Switch Protector
11 151001 2 #8-32 Pal Nut
12 860080 1 Phase 7 Coin Control Panel (panel only)
13 852317 1 Phase 7 25¢ Coin Acceptor Assembly
14 182621 1 Control Panel Lock Assembly
15 883774 1 Hanke Phase 7 Optic Switch Assembly
